MPX5010
Rev 11, 01/2007
Freescale Semiconductor
Technical Data
© Freescale Semiconductor, Inc., 2007. All rights reserved.
Integrated Silicon Pressure Sensor
On-Chip Signal Conditioned,
Temperature Compensated and
Calibrated
The MPX5010/MPXV5010G series piezoresistive transducers are state-of-
the-art monolithic silicon pressure sensors designed for a wide range of
applications, but particularly those employing a microcontroller or
microprocessor with A/D inputs. This transducer combines advanced
micromachining techniques, thin-film metallization, and bipolar processing to
provide an accurate, high level analog output signal that is proportional to the
applied pressure.
Features
• 5.0% Maximum Error over 0° to 85°C
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package
• Temperature Compensated over –40° to +125°C
• Patented Silicon Shear Stress Strain Gauge
• Available in Differential and Gauge Configurations
• Available in Surface Mount (SMT) or Through-hole (DIP) Configurations
Application Examples
• Hospital Beds
•HVAC
• Respiratory Systems
• Process Control
ORDERING INFORMATION
Device
Type
Options
Case
No.
MPX Series
Order No.
Packing
Options
Device
Marking
SMALL OUTLINE PACKAGE (MPXV5010G SERIES)
Basic
Elements
Gauge, Element Only, SMT
482 MPXV5010G6U Rails MPXV5010G
Gauge, Element Only, DIP
482B MPXV5010G7U Rails MPXV5010G
Ported
Elements
Gauge, Axial Port, SMT 482A
MPXV5010GC6U
Rails MPXV5010G
Gauge, Axial Port, DIP 482C
MPXV5010GC7U
Rails MPXV5010G
Gauge, Axial Port, SMT 482A
MPXV5010GC6T1
Tape &
Reel
MPXV5010G
Gauge, Side Port, SMT 1369 MPXV5010GP Trays MPXV5010G
Gauge, Dual Port, SMT 1351 MPXV5010DP Trays MPXV5010G
UNIBODY PACKAGE (MPX2202 SERIES)
Basic
Element
Differential 867 MPX5010D — MPXV5010D
Ported
Elements
Differential, Gauge 867C MPX5010DP —
MPXV5010DP
Gauge 867B MPX5010GP —
MPXV5010GP
Gauge, Axial 867E MPX5010GS — MPXV5010D
Gauge, Axial PC Mount 867F MPX5010GSX — MPXV5010D
MPX5010
MPXV5010G
SERIES
INTEGRATED
PRESSURE SENSOR
0 to 10 kPa (0 to 1.45 psi)
0.2 to 4.7 V OUTPUT
UNIBODY PACKAGE PIN NUMBERS
(1)
1. Pins 4, 5, and 6 are internal device connections. Do
not connect to external circuitry or ground. Pin 1 is
noted by the notch in the lead.
1 V
out
4 N/C
2 Gnd 5 N/C
3 V
S
6 N/C
SMALL OUTLINE PACKAGE
PIN NUMBERS
(1)
1. Pins 1, 5, 6, 7, and 8 are internal device
connections. Do not connect to external circuitry or
ground. Pin 1 is noted by the notch in the lead.
1 N/C 5 N/C
2 V
S
6 N/C
3 Gnd 7 N/C
4 V
out
8 N/C

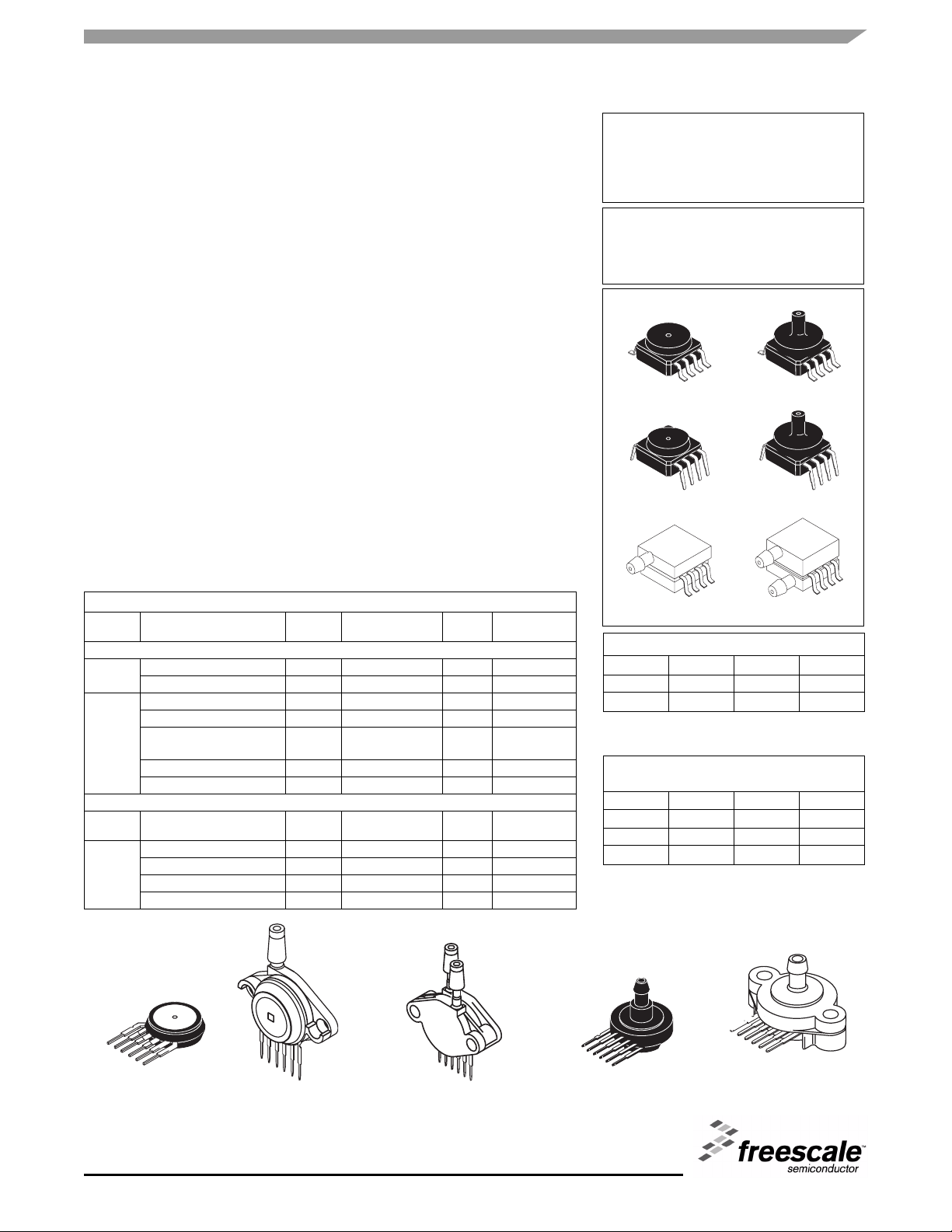

MPXV5010G6U
CASE 482-01
MPXV5010GC6U/C6T1
CASE 482A-01
MPXV5010G7U
CASE 482B-03
MPXV5010GC7U
CASE 482C-03
MPXV5010DP
CASE 1351-01
MPXV5010GP
CASE 1369-01
J
SMALL OUTLINE PACKAGE
UNIBODY PACKAGES
MPX5010GSX
CASE 867F-03
MPX5010GP
CASE 867B-04
MPX5010DP
CASE 867C-05
MPX5010D
CASE 867-08
MPX5010GS
CASE 867E-03
