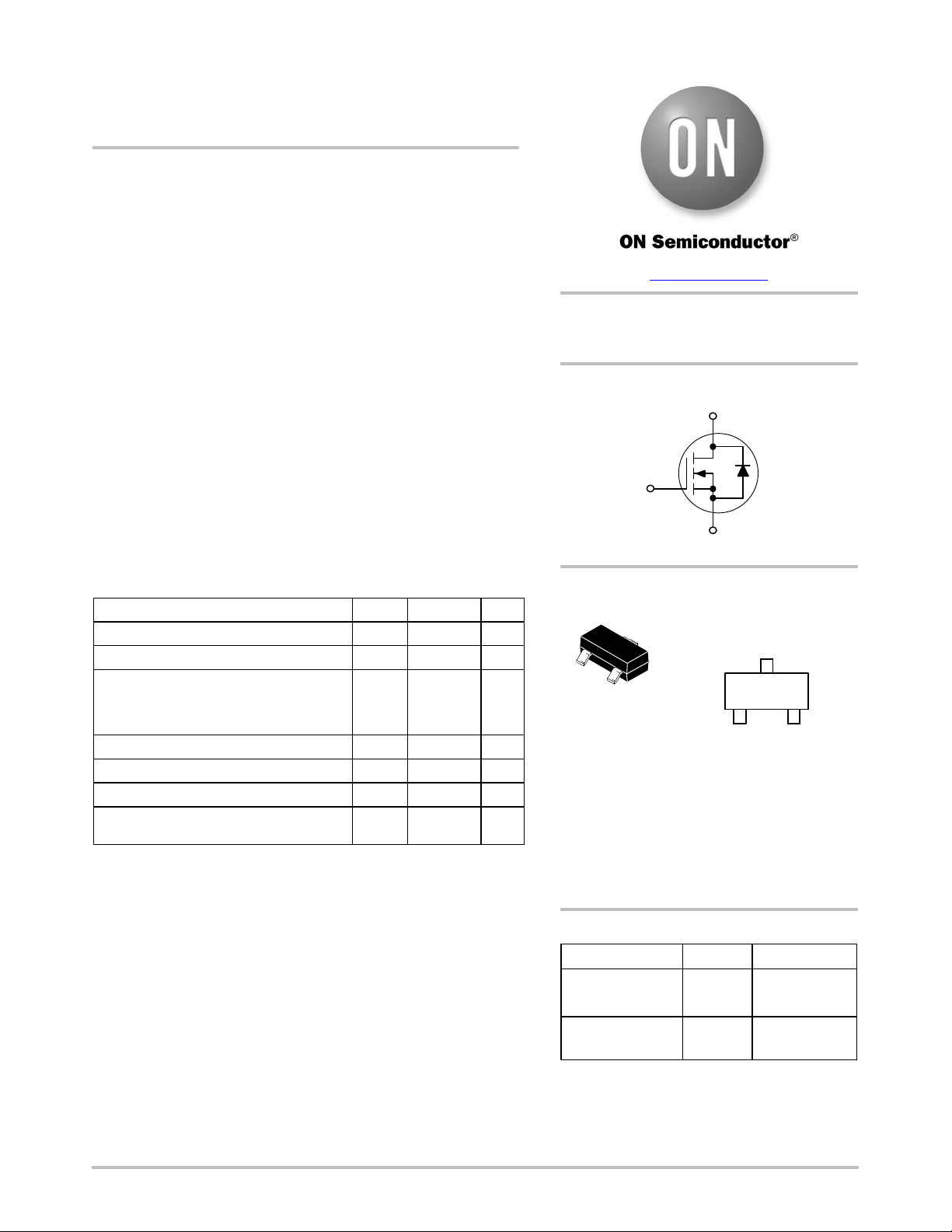

MMBF0201NL,
MVMBF0201NL
Power MOSFET
300 mAmps, 20 Volts
N−Channel SOT−23
These miniature surface mount MOSFETs low R
DS(on)
assure
minimal power loss and conserve energy, making these devices ideal
for use in small power management circuitry. Typical applications are
dc−dc converters, power management in portable and
battery−powered products such as computers, printers, PCMCIA
cards, cellular and cordless telephones.
Features
• Low R
DS(on)
Provides Higher Efficiency and Extends Battery Life
• Miniature SOT−23 Surface Mount Package Saves Board Space
• MVMBF Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable*
• These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS (T
J
= 25°C unless otherwise noted)
Rating
Symbol Value Unit
Drain−to−Source Voltage V
DSS
20 Vdc
Gate−to−Source Voltage − Continuous V
GS
± 20 Vdc
Drain Current
− Continuous @ T
A
= 25°C
− Continuous @ T
A
= 70°C
− Pulsed Drain Current (t
p
≤ 10 ms)
I
D
I
D
I
DM
300
240
750
mAdc
Total Power Dissipation @ T
A
= 25°C P
D
225 mW
Operating and Storage Temperature Range T
J
, T
stg
− 55 to 150 °C
Thermal Resistance, Junction−to−Ambient
R
q
JA
556 °C/W
Maximum Lead Temperature for Soldering
Purposes, 1/8″ from case for 10 seconds
T
L
260 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
3
1
2
Device Package Shipping
†
ORDERING INFORMATION
N−Channel
SOT−23
CASE 318
STYLE 21
MARKING DIAGRAM
AND PIN ASSIGNMENT
3
Drain
1
Gate
2
1
3
2
Source
300 mAMPS − 20 VOLTS
R
DS(on)
= 1 W
www.onsemi.com
N1 = Specific Device Code
M = Date Code*
G = Pb−Free Package
N1 M G
G
MMBF0201NLT1G SOT−23
(Pb−Free)
3000 / Tape &
Reel
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
MVMBF0201NLT1G* SOT−23
(Pb−Free)
3000 / Tape &
Reel
