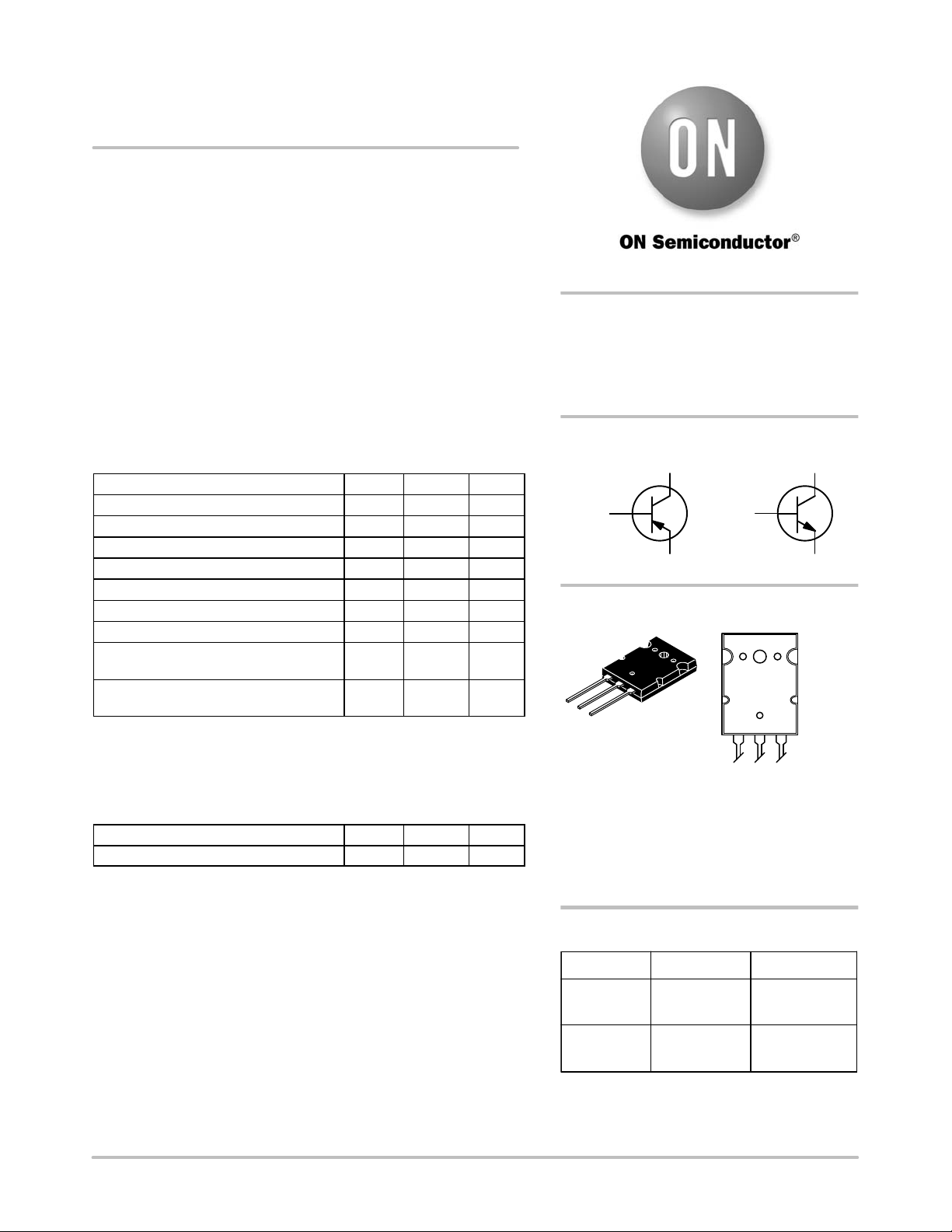

MJL21193(PNP),
MJL21194(NPN)
Silicon Power Transistors
The MJL21193 and MJL21194 utilize Perforated Emitter
technology and are specifically designed for high power audio output,
disk head positioners and linear applications.
Features
• Total Harmonic Distortion Characterized
• High DC Current Gain
• Excellent Gain Linearity
• High SOA
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage V
CEO
250 Vdc
Collector−Base Voltage V
CBO
400 Vdc
Emitter−Base Voltage V
EBO
5 Vdc
Collector−Emitter Voltage − 1.5 V V
CEX
400 Vdc
Collector Current − Continuous I
C
16 Adc
Collector Current − Peak (Note 1) I
CM
30 Adc
Base Current − Continuous I
B
5 Adc
Total Power Dissipation @ T
C
= 25_C
Derate above 25_C
P
D
200
1.43
W
W/_C
Operating and Storage Junction
Temperature Range
T
J
, T
stg
−65 to
+ 150
_C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤2%
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Case
R
q
JC
0.7
_C/W
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
x = 3 or 4
A = Assembly Location
YY = Year
WW = Work Week
G = Pb−Free Package
Device Package Shipping
†
ORDERING INFORMATION
MJL21193G TO−264
(Pb−Free)
25 Units / Rail
MJL21194G TO−264
(Pb−Free)
25 Units / Rail
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
16 AMPERE COMPLEMENTARY
SILICON POWER
TRANSISTORS
250 VOLTS, 200 WATTS
MJL2119x
AYYWWG
TO−264
CASE 340G
STYLE 2
MARKING DIAGRAM
1
BASE
2 COLLECTOR
3
EMITTER
1
2
3
1
BASE
EMITTER 3
COLLECTOR 2, 4
1
BASE
EMITTER 3
COLLECTOR 2, 4
PNP
NPN
