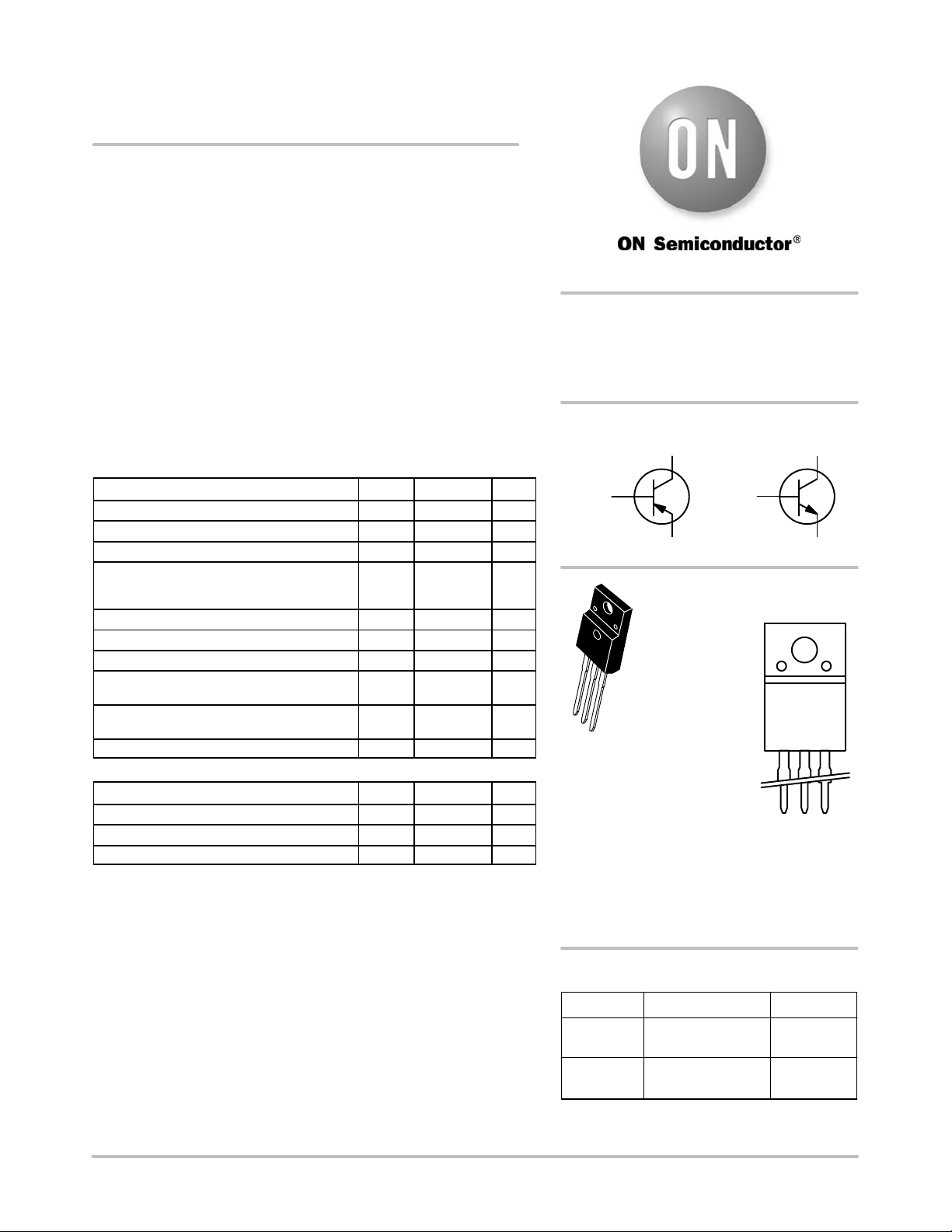

© Semiconductor Components Industries, LLC, 2013
September, 2013 − Rev. 8
1 Publication Order Number:
MJF15030/D
MJF15030 (NPN),
MJF15031 (PNP)
Complementary Power
Transistors
For Isolated Package Applications
Designed for general−purpose amplifier and switching applications,
where the mounting surface of the device is required to be electrically
isolated from the heatsink or chassis.
Features
• Electrically Similar to the Popular MJE15030 and MJE15031
• No Isolating Washers Required, Reduced System Cost
• High Current Gain−Bandwidth Product
• UL Recognized, File #E69369, to 3500 V
RMS
Isolation
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage V
CEO
150 Vdc
Collector−Base Voltage V
CB
150 Vdc
Emitter−Base Voltage V
EB
5 Vdc
RMS Isolation Voltage (Note 1)
(t = 0.3 sec, R.H. ≤ 30%, T
A
= 25_C)
Per Figure 11
V
ISOL
4500
V
RMS
Collector Current − Continuous I
C
8 Adc
Collector Current − Peak I
CM
16 Adc
Base Current I
B
2 Adc
Total Power Dissipation (Note 2) @ T
C
= 25_C
Derate above 25_C
P
D
36
0.286
W
W/_C
Total Power Dissipation @ T
A
= 25_C
Derate above 25_C
P
D
2.0
0.016
W
W/_C
Operating and Storage Temperature Range T
J
, T
stg
–65 to +150
_C
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Ambient
R
q
JA
62.5
_C/W
Thermal Resistance, Junction−to−Case (Note 2)
R
q
JC
3.5
_C/W
Lead Temperature for Soldering Purposes T
L
260
_C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Proper strike and creepage distance must be provided.
2. Measurement made with thermocouple contacting the bottom insulated
surface (in a location beneath the die), the devices mounted on a heatsink with
thermal grease and a mounting torque of ≥ 6 in. lbs.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
ORDERING INFORMATION
TO−220 FULLPACK
CASE 221D
STYLE 2
3
1
COMPLEMENTARY SILICON
POWER TRANSISTORS
8 AMPERES
150 VOLTS, 36 WATTS
2
http://onsemi.com
MJF15031G 50 Units/Rail
MJF15030G TO−220 FULLPACK
(Pb−Free)
50 Units/Rail
MJF1503x = Specific Device Code
x = 0 or 1
G=Pb−Free Package
A = Assembly Location
Y = Year
WW = Work Week
MARKING
DIAGRAM
TO−220 FULLPACK
(Pb−Free)
MJF1503xG
AYWW
1
BASE
EMITTER 3
COLLECTOR 2, 4
1
BASE
EMITTER 3
COLLECTOR 2, 4
PNP
NPN
