Semiconductor Components Industries, LLC, 2012
February, 2012 − Rev. 10
1 Publication Order Number:
MJD31/D
MJD31, NJVMJD31T4G,
MJD31C, NJVMJD31CT4G
(NPN), MJD32,
NJVMJD32T4G, MJD32C,
NJVMJD32CG,
NJVMJD32CT4G (PNP)
Complementary Power
Transistors
DPAK For Surface Mount Applications
Designed for general purpose amplifier and low speed switching
applications.
Features
Lead Formed for Surface Mount Applications in Plastic Sleeves
Straight Lead Version in Plastic Sleeves (“1” Suffix)
Lead Formed Version in 16 mm Tape and Reel (“T4” Suffix)
Electrically Similar to Popular TIP31 and TIP32 Series
Epoxy Meets UL 94, V−0 @ 0.125 in
ESD Ratings:
Human Body Model, 3B > 8000 V
Machine Model, C > 400 V
NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
These are Pb−Free Packages*
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
SILICON
POWER TRANSISTORS
3 AMPERES
40 AND 100 VOLTS
15 WATTS
See detailed ordering and shipping information in the package
dimensions section on page 9 of this data sheet.
ORDERING INFORMATION

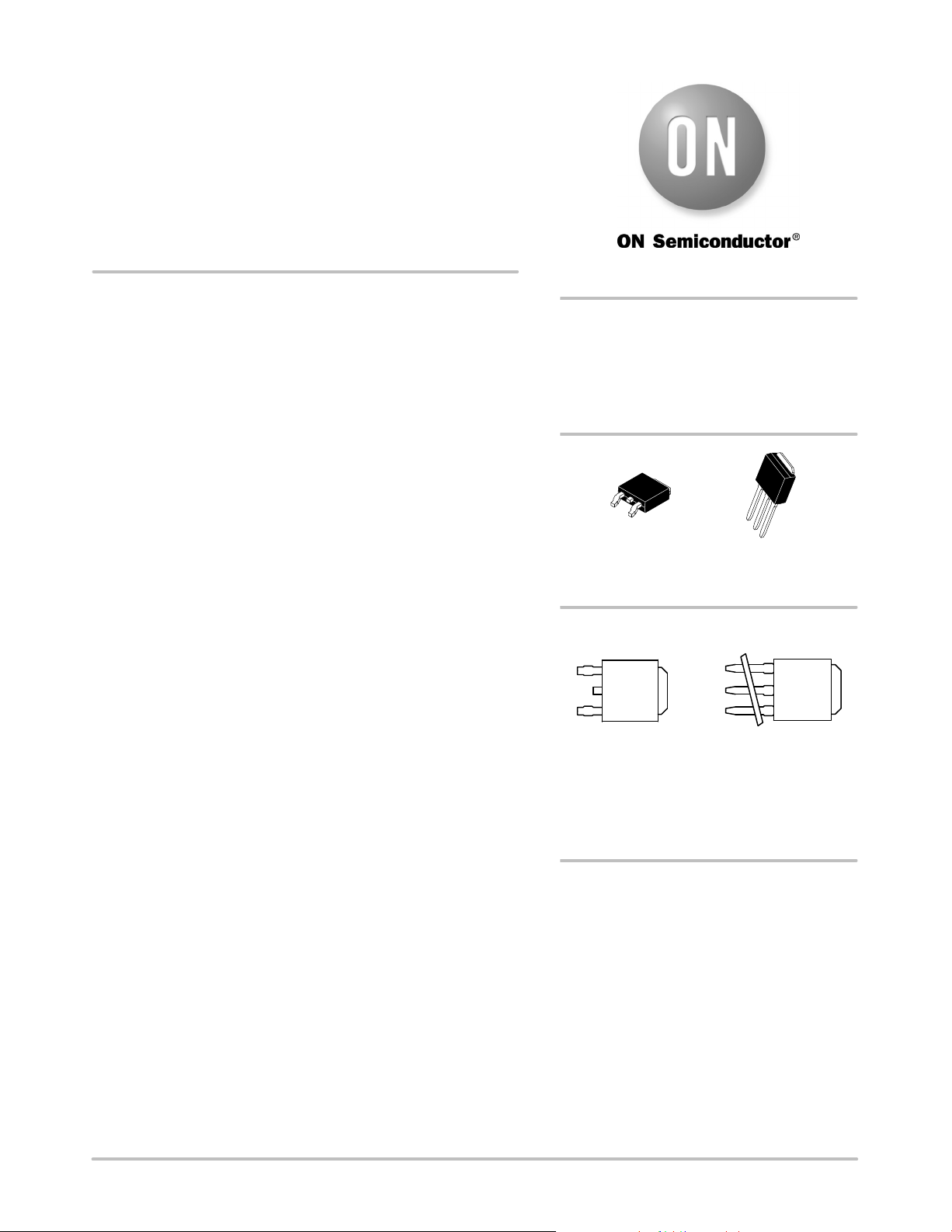

DPAK−3
CASE 369D
STYLE 1
DPAK
CASE 369C
STYLE 1
MARKING DIAGRAMS
A = Site Code
Y = Year
WW = Work Week
xx = 1, 1C, 2, or 2C
G = Pb−Free Package
AYWW
J3xxG
YWW
J3xxG
http://onsemi.com
DPAK DPAK−3
