O
verview
Freescale’s ARM11
®
based i.MX35 multimedia
applications processors family provides
a balance of performance, power consumption,
connectivity and media capabilities necessary
to drive today’s high-end industrial and
consumer products that require a high quality
user interface. Based on the robust
ARM1136JF-S™ and derived from the widely
adopted i.MX31 processor, the i.MX35
processors are designed to support industrial
markets such as HVAC, factory automation,
home control, building automation and other
HMI applications.
The i.MX35 processors are optimized to allow
custo
mers to maintain peak energy efficiency
goals without compromising performance.
The i.MX35 processors are packed with
connectivity options, including UARTs, SPIs,
Ethernet and two Controller Area Network
(CAN) modules. The i.MX35 processors have
two USB ports with integrated PHYs, three
MMC/SD/SDIO ports and a USB or SDIO
port for external wireless modules and
support for cost-effective memory options like
DDR2 and multi-level cell NAND that reduce
system costs and provide the design
engineer great flexibility.
Comprehensive board support packages
(BSPs) for the Microsoft
®
Windows
®
Embedded CE 6.0 and Linux
®
operating
systems are available through Freescale and
Freescale partners to enable quick time
to market.
Key Features
• CPU
ARM1136JF-S runs up to 532 MHz
Integrated SRAM and L2 cache for
improved system performance
Vector floating point coprocessor
• MultimediaandGraphicsProcessing
Display controller optimized for
upto24-bit-per-pixelWVGA
(800 x 480) resolution
IndustrystandardOpenVGgraphics
accelerator capable of up to 133 million
pixels per second fill rate
Image processing unit (IPU) for image
scaling, image blending, rotation and
color space conversion
CMOS/CCD sensor interface for camera
or video input
• Connectivity
10/100 Ethernet MAC
2 x FlexCAN modules
High-SpeedUSBOTGwithintegrated
high-speed PHY
High-Speed USB host with integrated
full-speed PHY
3 x UART
2 x configurable serial peripheral
interfaces (CSPI)
3.3V general purpose I/O
Consumer/Industrial

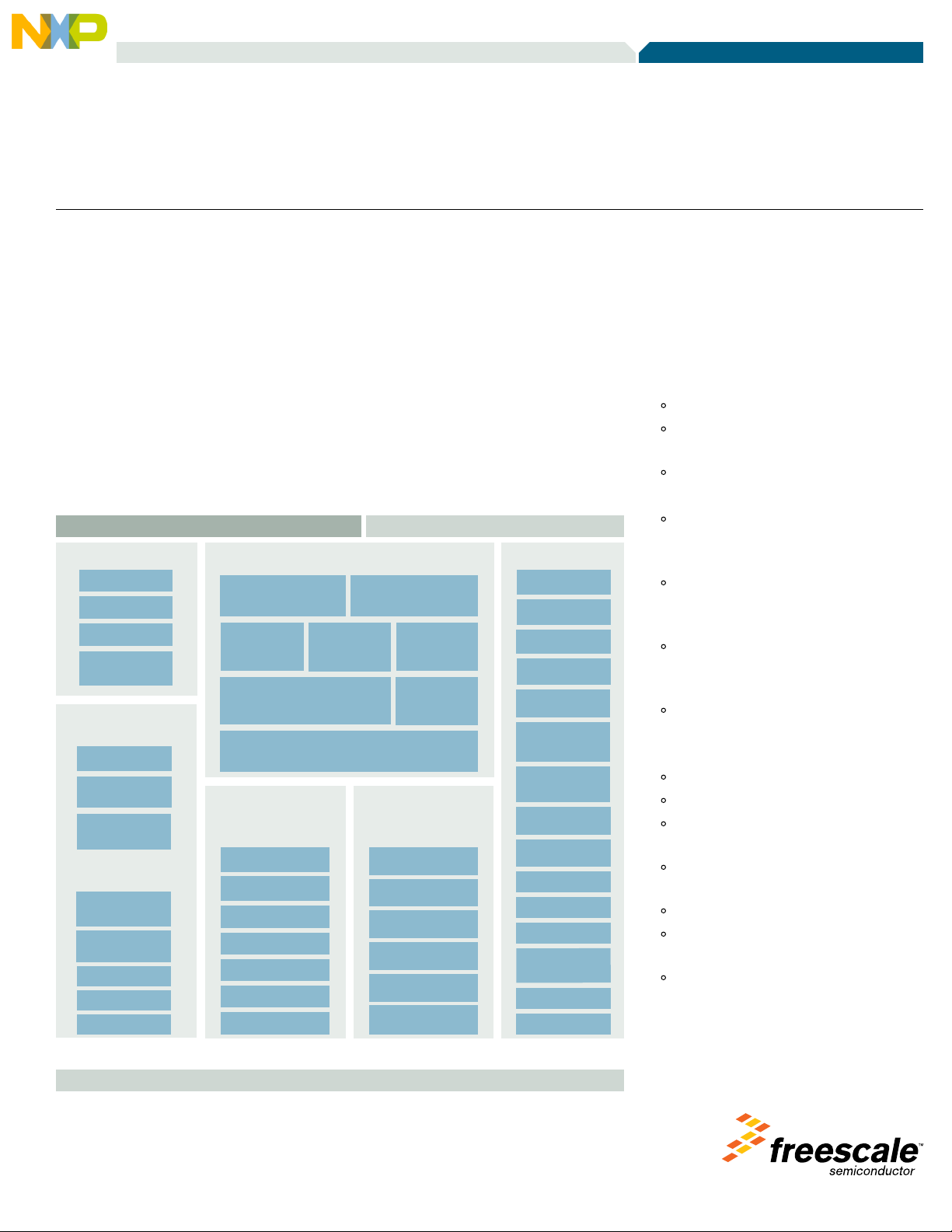

i.MX35 Multimedia Applications Processors
Consumer and industrial portfolio
Bootstrap
System Reset
System Control
JTAG/ICE
TM
PLL and
Power Mgmt
Multimedia and
Human Interface
8 x 8 Keypad
ASRC
OpenVG 1.1
2.5D Accel*
Processing Unit
Inversion and
Rotation
Pre and Post
Processing
Camera I/F
Blending
Display Control
Connectivity
2 x CSPI
2 x SSI/
I
2
S
3 x UART
USB HS Host
FS-PHY or ULPI
USB HS OTG
w/ HS-PHY
Ethernet
1-Wire
2 x SDIO/MMC
SDIO/
Memory Stick
PATA
CE-ATA
S/PDIF/ I/O
ESAI
2 x FlexCAN
Smart Speed
Switch (MAX)
16 KB
I-cache
32 KB Boot ROM
2 KB Secure RAM
16 KB
D-cache
SDRAM
mSDRAMC
mDDR
DDR2
External
Memory
NOR
SLC NAND
MLC NAND
eDMA
Standard
System I/O
3 x Timer
PWM
WD Timer
RTC
GPIO
128 KB
L2-cache
128 KB
SRAM
Vector Floating
Point Unit
CPU Complex
ARM1136 CPU
i.MX35 Multimedia Applications Processor
*Not available on i.MX353
3 x I
2
C
