Semiconductor Components Industries, LLC, 2002
July, 2002 – Rev. 13
1 Publication Order Number:
MC74VHC1G00/D
MC74VHC1G00
Single 2-Input NAND Gate
The MC74VHC1G00 is an advanced high speed CMOS 2–input
NAND gate fabricated with silicon gate CMOS technology.
The internal circuit is composed of multiple stages, including a
buffer output which provides high noise immunity and stable output.
The MC74VHC1G00 input structure provides protection when
voltages up to 7.0 V are applied, regardless of the supply voltage. This
allows the MC74VHC1G00 to be used to interface 5.0 V circuits to
3.0 V circuits.
• High Speed: t
PD
= 3.0 ns (Typ) at V
CC
= 5 V
• Low Power Dissipation: I
CC
= 1 A (Max) at T
A
= 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Chip Complexity: FETs = 56

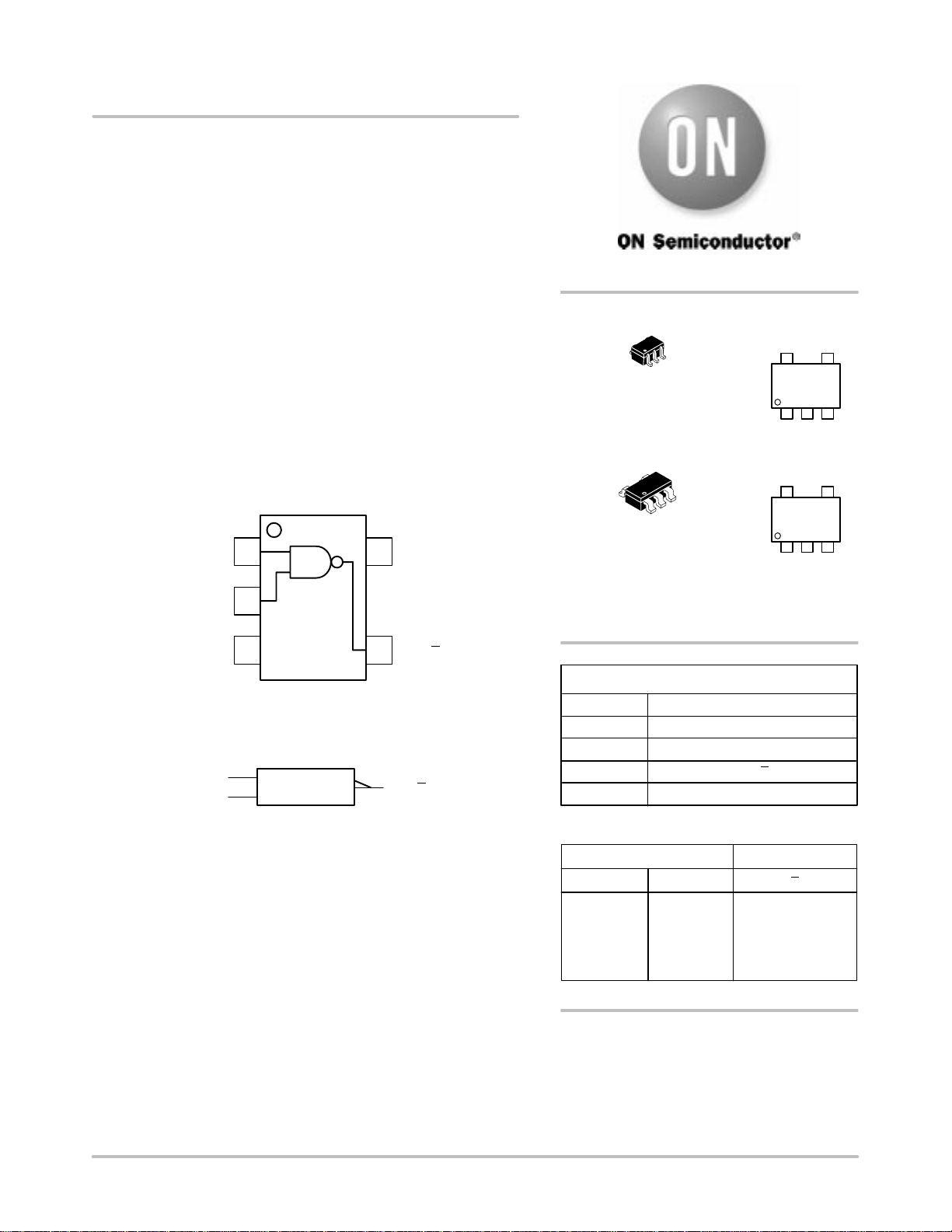

Figure 1. Pinout (Top View)
V
CC
IN B
IN A
OUT YGND
Figure 2. Logic Symbol
OUT Y
&
1
2
34
5
IN B
IN A
PIN ASSIGNMENT
1
2
3 GND
IN B
IN A
4
5V
CC
OUT Y
L
L
H
H
L
H
L
H
FUNCTION TABLE
Inputs Output
AB
H
H
H
L
Y
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
MARKING
DIAGRAMS
Pin 1
V1
d
SC70–5/SC–88A/SOT–353
DF SUFFIX
CASE 419A
SOT23–5/TSOP–5/SC59–5
DT SUFFIX
CASE 483
Pin 1
V1
d
d = Date Code
1
1
5
5
http://onsemi.com
