© Semiconductor Components Industries, LLC, 2009
August, 2009 − Rev. 5
1 Publication Order Number:
MC34151/D
MC34151, MC33151
High Speed Dual
MOSFET Drivers
The MC34151/MC33151 are dual inverting high speed drivers
specifically designed for applications that require low current digital
circuitry to drive large capacitive loads with high slew rates. These
devices feature low input current making them CMOS and LSTTL
logic compatible, input hysteresis for fast output switching that is
independent of input transition time, and two high current totem pole
outputs ideally suited for driving power MOSFETs. Also included is
an undervoltage lockout with hysteresis to prevent erratic system
operation at low supply voltages.
Typical applications include switching power supplies, dc to dc
converters, capacitor charge pump voltage doublers/inverters, and
motor controllers.
These devices are available in dual−in−line and surface mount
packages.
Features
• Pb−Free Packages are Available
• Two Independent Channels with 1.5 A Totem Pole Output
• Output Rise and Fall Times of 15 ns with 1000 pF Load
• CMOS/LSTTL Compatible Inputs with Hysteresis
• Undervoltage Lockout with Hysteresis
• Low Standby Current
• Efficient High Frequency Operation
• Enhanced System Performance with Common Switching Regulator
Control ICs
• Pin Out Equivalent to DS0026 and MMH0026

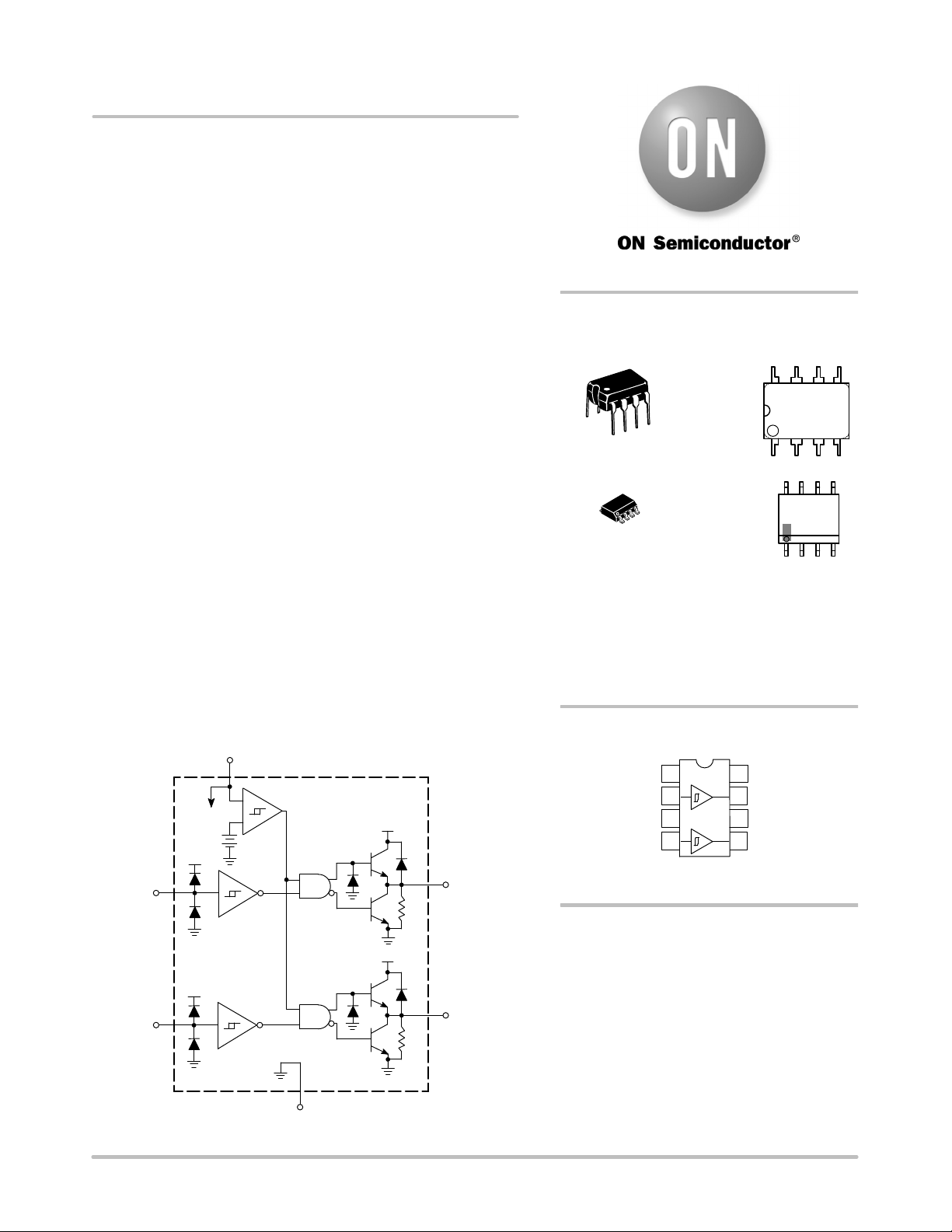

Figure 1. Representative Block Diagram
+
+
+
-
V
CC
6
5.7V
Logic Input A
2
Logic Input B
4
GND
3
100k
Drive Output A
7
Drive Output B
5
+
+
+
+
100k
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
ORDERING INFORMATION
PDIP−8
P SUFFIX
CASE 626
MARKING
DIAGRAMS
1
8
1
8
MC3x151P
AWL
YYWWG
SOIC−8
D SUFFIX
CASE 751
1
8
x = 3 or 4
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G or G = Pb−Free Package
PIN CONNECTIONS
1 8 N.C.N.C.
(Top View)
2 7 Drive Output ALogic Input A
36V
CC
GND
4 5 Drive Output BLogic Input B
3x151
ALYWG
G
1
8
(Note: Microdot may be in either location)
