* This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
Document Number: PF3000
Rev. 8.0, 3/2017
NXP Semiconductors
Data sheet: Advance Information
© NXP B.V. 2017.
Power management integrated
circuit (PMIC) for i.MX 7 & i.MX 6SL/
SX/UL
The PF3000 is a power management integrated circuit (PMIC) designed
specifically for use with the NXP i.MX 7 and i.MX 6SL/SX/UL application
processors. With up to four buck converters, six linear regulators, RTC supply,
and coin-cell charger, the PF3000 can provide power for a complete system,
including applications processors, memory, and system peripherals. This device
is powered by SMARTMOS technology.
Features:
• Four adjustable high efficiency buck regulators: 1.75 A, 1.5 A, 1.25 A, 1.0 A
• Selectable modes: PWM, PFM, APS
•5.0 V, 600 mA boost regulator with PFM or auto mode
• Six adjustable general purpose linear regulators
• Input voltage range: 2.8 V to 4.5 V or 3.7 V to 5.5 V
• OTP (One Time Programmable) memory for device configuration
• Programmable start-up sequence and timing
• Selectable output voltage, frequency, soft start
•I
2
C control
• Coin cell charger and always ON RTC supply
• DDR reference voltage
• -40 °C to +125 °C operating junction temperature

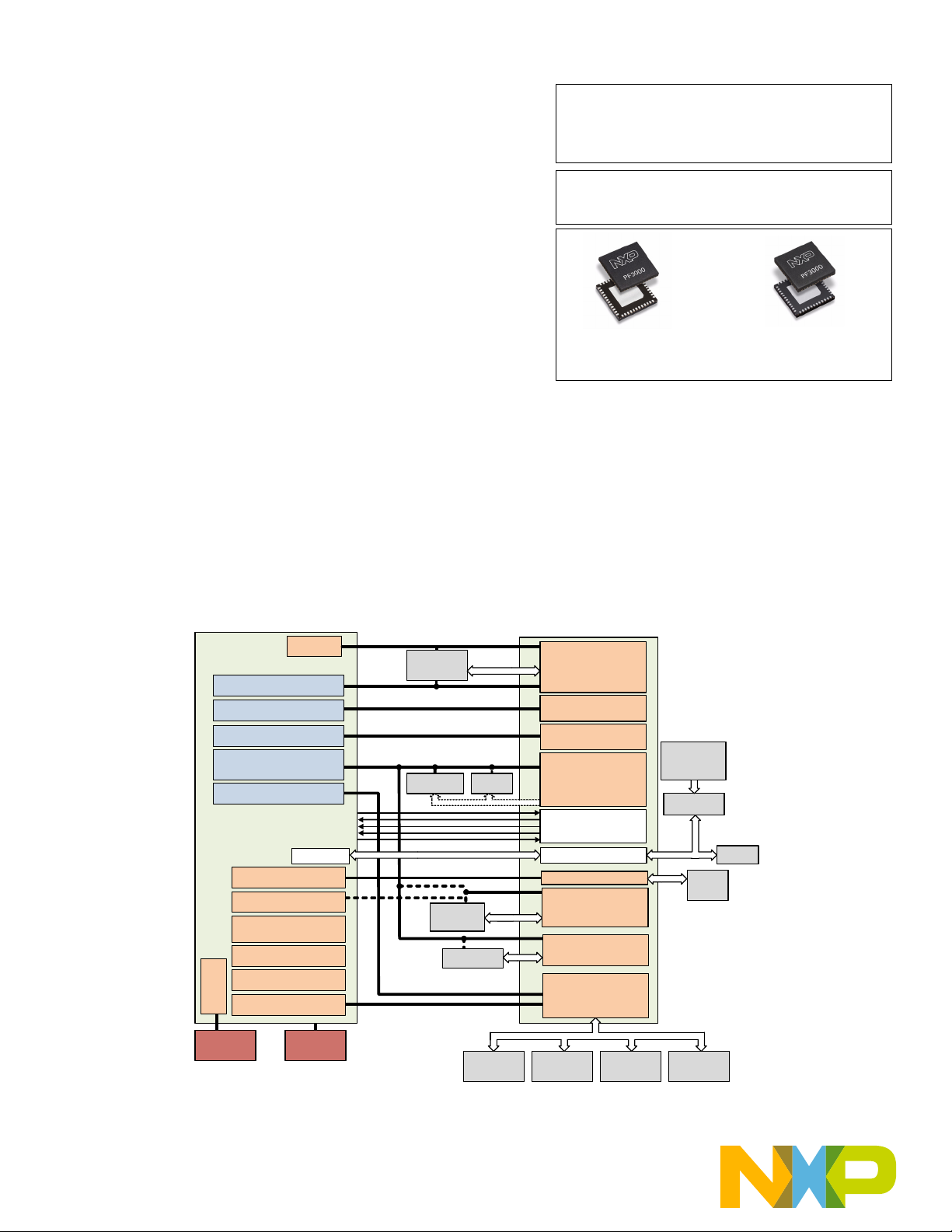

Figure 1. PF3000 Simplified Application Diagram
POWER MANAGEMENT
PF3000
Applications:
• Tablets
• eReaders
• Wearables
• POS terminals
• Industrial control
• Medical monitoring
• Home automation
• Home security/energy management
EP SUFFIX
98ASA00719D
48 QFN 7.0 X 7.0
ES SUFFIX
98ASA00933D
48 QFN 7.0 X 7.0
Camera
Audio
Codec
Cluster/HUD
External AMP
Microphones
Speakers
Front USB
POD
Rear USB
POD
Rear Seat
Infotaiment
Sensors
i.MX
I
2
C
I
2
C
PF3000
Li CELL
Charger
COINCELL
Main Supply
2.8 – 5.5 V
GPS
MIPI
uPCIe
Camera
VREFDDR
DDR Memory
SD-MMC/
NAND Mem.
SATA
HDD
WAM
GPS/MIPI
HDMI
LDVS Display
USB
Ethernet
CAN
SW3
0.90 to 1.65 V @ 1.5 A
SW1A
0.7 to 1.425 V, 1.8V, 3.3V @ 1.0 A
SW1B
0.70 to 1.475 V @ 1.75 A
SW2
1.50 to 1.85 V @ 1.25 A
or 2.5 to 3.3 V @ 1.25 A
SWBST
5.00 to 5.15 V @ 0.6 A
Switching regulators
VLDO2
0.80 to 1.55 V @ 250 mA
VLDO1
1.8 to 3.3 V @ 100 mA
VCC_SD
1.80 to 1.85 V @ 100 mA
or 2.85 to 3.3 V @ 100 mA
V33
2.85 - 3.3 V @ 350 mA
VLDO3
1.8 - 3.3 V @ 100 mA
VLDO4
1.8 - 3.3 V @ 350 mA
RESETBMCU
PWRON
SD_VSEL
STANDBY
Linear
regulators
Parallel control/GPIOS
INTB
Processor SOC
Processor
ARM Core
DDR MEMORY
INTERFACE
SATA - FLASH
NAND - NOR
Interfaces
