© Semiconductor Components Industries, LLC, 2006
August, 2016 − Rev. 9
1 Publication Order Number:
MC10H164/D
MC10H164
8‐Line Multiplexer
Description
The MC10H164 is a MECL 10H™ part which is a functional/pinout
duplication of the standard MECL 10K™ family part, with 100%
improvement in propagation delay, and no increase in power supply
current.
The MC10H164 is designed to be used in data multiplexing and
parallel to serial conversion applications. Full parallel gating provides
equal delays through any data path. The MC10H164 incorporates an
output buffer, eight inputs and an enable. A high on the enable forces
the output low. The open emitter output allows the MC10H164 to be
connected directly to a data bus. The enable line allows an easy means
of expanding to more than 8 lines using additional MC10H164’s.
Features
• Propagation Delay, 1.0 ns Typical
• Power Dissipation, 310 mW Typical (same as MECL 10K)
• Improved Noise Margin 150 mV
(Over Operating Voltage and Temperature Range)
• Voltage Compensated
• MECL 10K-Compatible
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
www.onsemi.com
*For additional marking information, refer to
Application Note AND8002/D
.
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G = Pb-Free Package

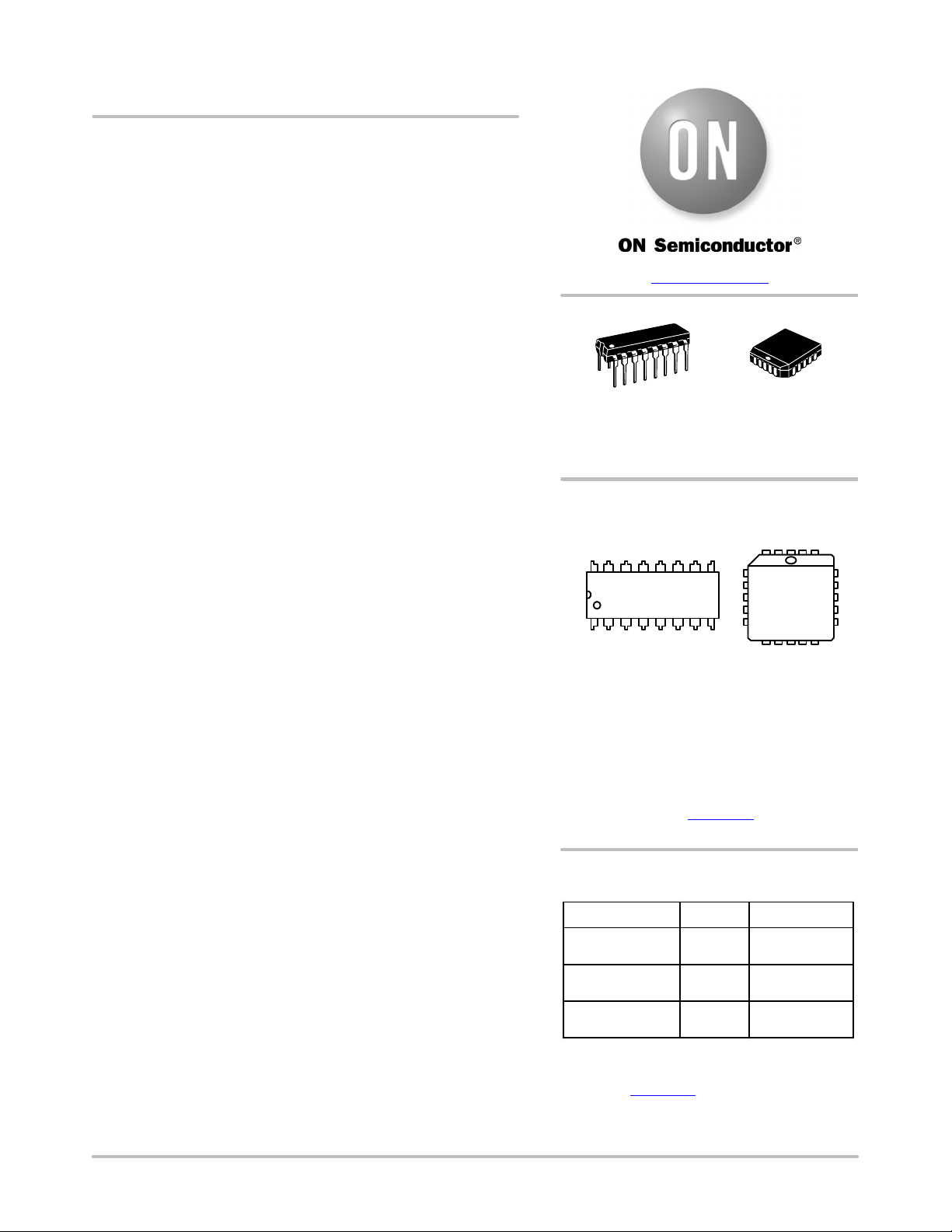

MARKING DIAGRAMS*
PDIP−16
P SUFFIX
CASE 648−08
16
1
16
1
MC10H164P
AWLYYWWG
PLLC−20
FN SUFFIX
CASE 775−02
20
1
10H164G
AWLYYWW
120
PDIP−16 PLLC−20
ORDERING INFORMATION
Device Package Shipping†
MC10H164FNG PLLC−20
(Pb-Free)
46 Units / Tube
MC10H164FNR2G
500 Tape & Reel
MC10H164PG 25 Units / Tube
PLLC−20
(Pb-Free)
PDIP−16
(Pb-Free)
†For information on tape and reel specifications, in-
cluding part orientation and tape sizes, please refer
to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D
.
