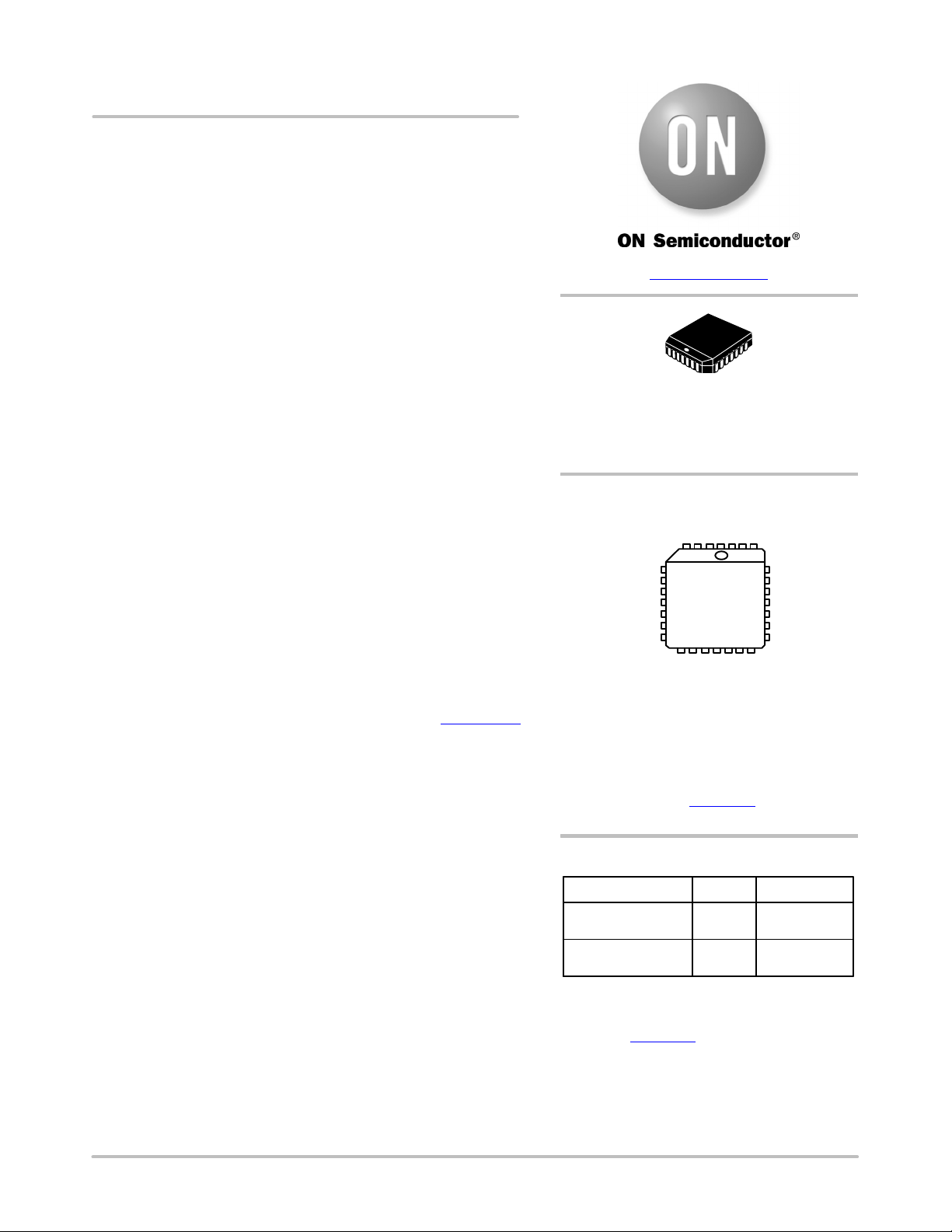

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 8
1 Publication Order Number:
MC10E143/D
MC10E143, MC100E143
5V ECL 9‐Bit Hold Register
Description
The MC10E/100E143 is a 9-bit holding register, designed with
byte-parity applications in mind. The E143 holds current data or loads
new data, with the nine inputs D0 − D8 accepting parallel input data.
The SEL (Select) input pin is used to switch between the two modes
of operation − HOLD and LOAD. Input data is accepted by the
registers a set-up time before the positive going edge of CLK1 or
CLK2. A HIGH on the Master Reset pin (MR) asynchronously resets
all the registers to zero.
The 100 Series contains temperature compensation.
Features
• 700 MHz Min. Operating Frequency
• 9-Bit for Byte-Parity Applications
• Asynchronous Master Reset
• Dual Clocks
• PECL Mode Operating Range:
♦ V
CC
= 4.2 V to 5.7 V with V
EE
= 0 V
• NECL Mode Operating Range:
♦ V
CC
= 0 V with V
EE
= −4.2 V to −5.7 V
• Internal Input 50 kW Pulldown Resistors
• ESD Protection:
♦ Human Body Model; > 2 kV
♦ Machine Model; > 200 V
• Meets or Exceeds JEDEC Standard EIA/JESD78 IC Latchup Test
• Moisture Sensitivity Level: 3 (Pb-Free)
♦ For Additional Information, see Application Note AND8003/D
• Flammability Rating: UL 94 V−0 @ 0.125 in,
Oxygen Index: 28 to 34
• Transistor Count = 484 devices
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
MARKING DIAGRAM*
xxx = 10 or 100
A = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G = Pb-Free Package
PLCC−28
FN SUFFIX
CASE 776−02
MCxxxE143FNG
AWLYYWW
1
www.onsemi.com
*For additional marking information, refer to
Application Note AND8002/D
.
ORDERING INFORMATION
Device Package Shipping
†
MC10E143FNR2G PLCC−28
(Pb-Free)
500/Tape & Reel
MC100E143FNG PLCC−28
(Pb-Free)
37 Units/Tube
†For information on tape and reel specifications, in-
cluding part orientation and tape sizes, please refer
to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D
.
