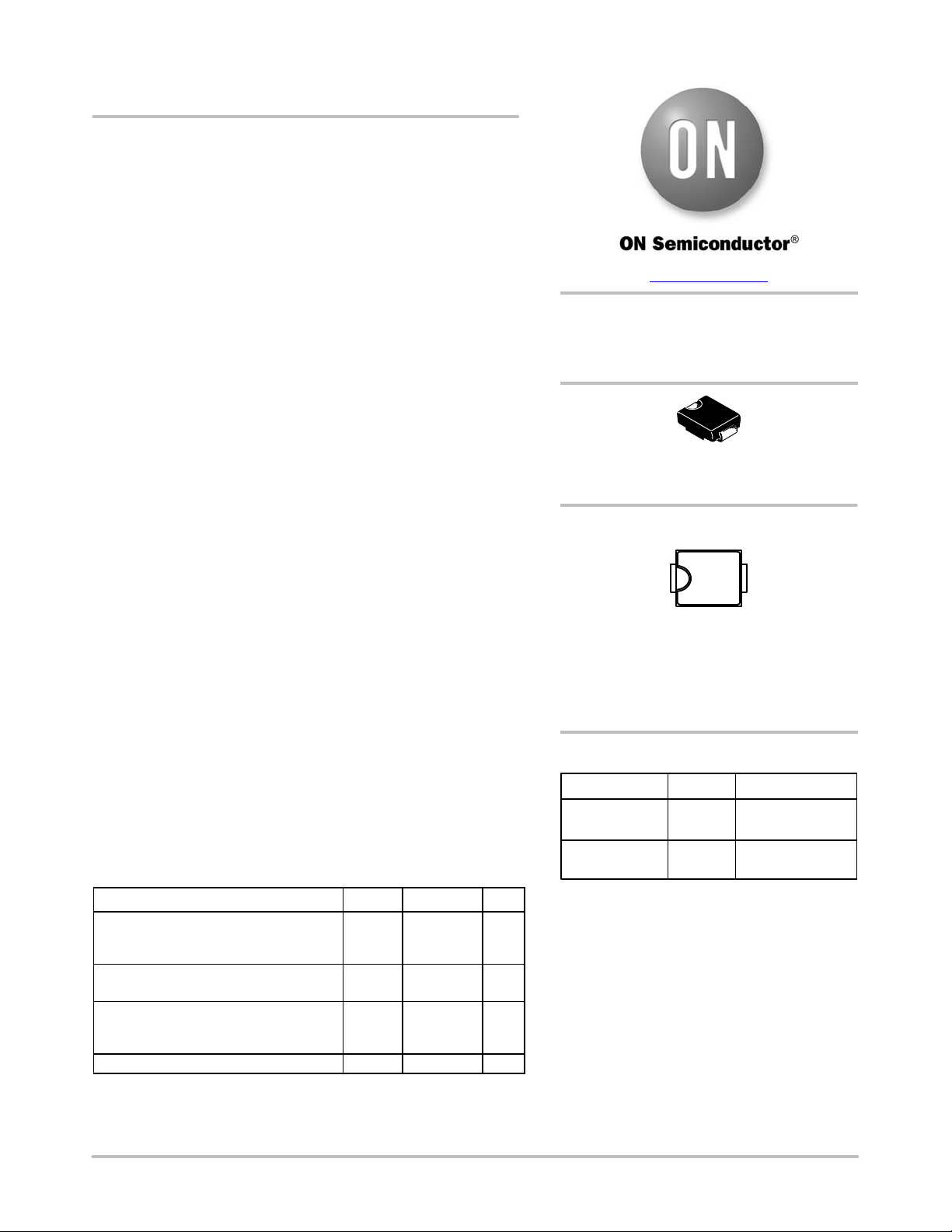

MBRS410L, NRVBS410L
Surface Mount
Schottky Power Rectifier
This device employs the Schottky Barrier principle in a large area
metal−to−silicon power diode. State−of−the−art geometry features
epitaxial construction with oxide passivation and metal overlay
contact. Ideally suited for low voltage, high frequency rectification, or
as free wheeling and polarity protection diodes, in surface mount
applications where compact size and weight are critical to the system.
Typical applications are AC−DC and DC−DC converters, reverse
battery protection, and “ORing” of multiple supply voltages and any
other application where performance and size are critical.
Features
• Ultra Low V
F
• 1st in the Market Place with a 10 V
R
Schottky Rectifier
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop
• Excellent Ability to Withstand Reverse Avalanche Energy Transients
• Guard−Ring for Stress Protection
• NRVBS Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Mechanical Characteristics
• Case: Epoxy, Molded
• Weight: 217 mg (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Polarity: Notch in Plastic Body Indicates Cathode Lead
• ESD Ratings: Machine Model = C
Human Body Model = 3B
MAXIMUM RATINGS
Rating Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
10 V
Average Rectified Forward Current
(@ T
L
= 110°C)
I
O
4.0 A
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions
Halfwave, Single Phase, 60 Hz)
I
FSM
150 A
Operating Junction Temperature T
J
−65 to +125 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
SCHOTTKY BARRIER
RECTIFIERS
4.0 AMPERES, 10 VOLTS
www.onsemi.com
SMC
CASE 403
B4L1 = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
MARKING DIAGRAM
AYWW
B4L1G
G
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
Device Package Shipping
†
ORDERING INFORMATION
MBRS410LT3G SMC
(Pb−Free)
2500 / Tape & Ree
l
NRVBS410LT3G SMC
(Pb−Free)
2500 / Tape & Ree
l
(Note: Microdot may be in either location)
