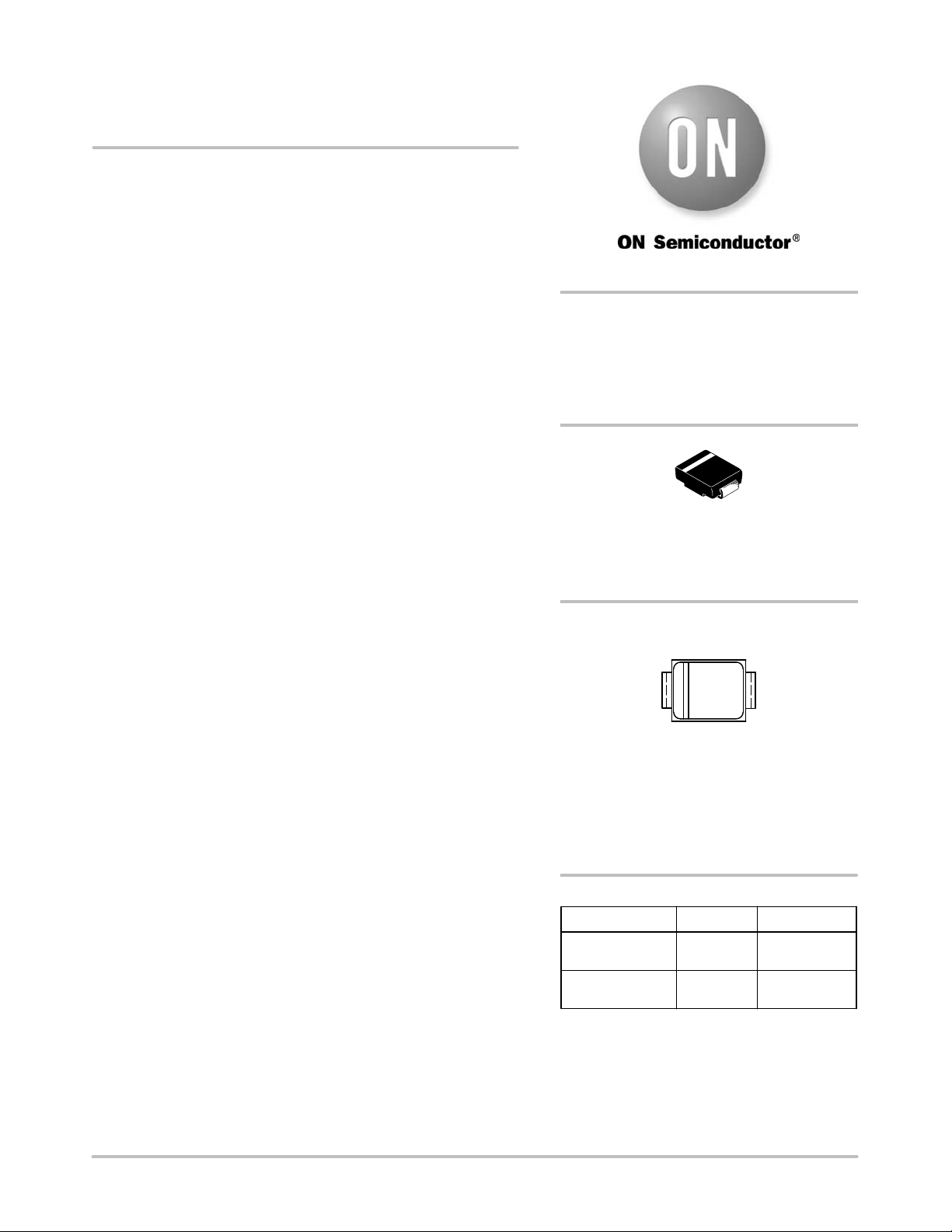

© Semiconductor Components Industries, LLC, 2012
June, 2012 − Rev. 5
1 Publication Order Number:
MBRS3200T3/D
MBRS3200T3G,
NRVBS3200T3G
Surface Mount
Schottky Power Rectifier
This device employs the Schottky Barrier principle in a large area
metal−to−silicon power diode. State−of−the−art geometry features
epitaxial construction with oxide passivation and metal overlay
contact. Ideally suited for low voltage, high frequency rectification, or
as free wheeling and polarity protection diodes in surface mount
applications where compact size and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very High Blocking Voltage − 200 V
• 175°C Operating Junction Temperature
• Guard−Ring for Stress Protection
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements: AEC−Q101
Qualified and PPAP Capable
• All Packages are Pb−Free*
Mechanical Charactersistics
• Case: Epoxy, Molded, Epoxy Meets UL 94, V−0
• Weight: 95 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Cathode Polarity Band
• Device Meets MSL 1 Requirements
• ESD Ratings:
♦ Machine Model = A
♦ Human Body Model = 1C
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
SMB
CASE 403A
PLASTIC
SCHOTTKY BARRIER
RECTIFIER
3.0 AMPERE
200 VOLTS
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
MBRS3200T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
B320 = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
(Note: Microdot may be in either location)
AYWW
B320G
G
MARKING DIAGRAM
NRVBS3200T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
