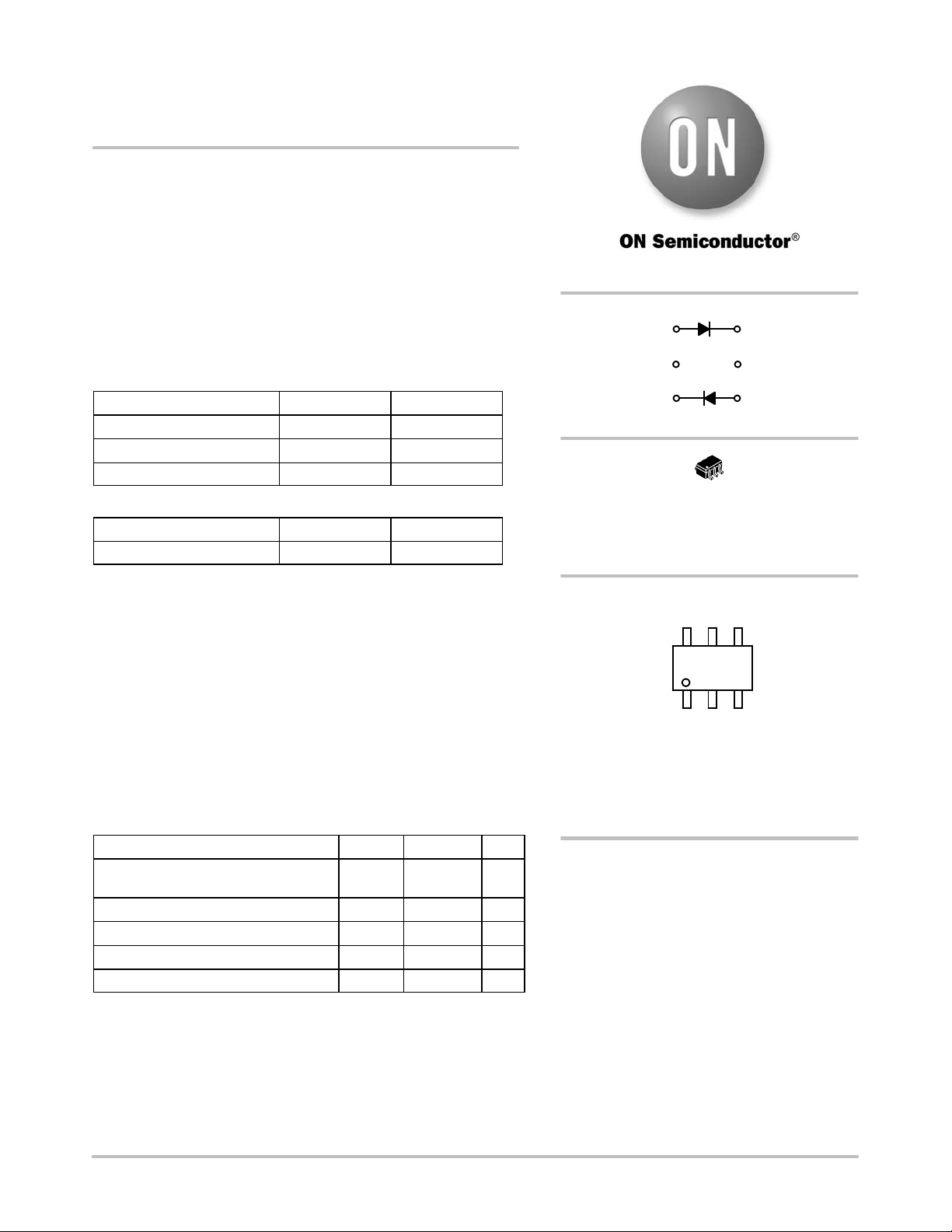

© Semiconductor Components Industries, LLC, 2012
September, 2012 − Rev. 8
1 Publication Order Number:
MBD110DWT1/D
MBD110DWT1G,
MBD330DWT1G
Dual Schottky Barrier
Diodes
Application circuit designs are moving toward the consolidation of
device count and into smaller packages. The new SOT−363 package is a
solution which simplifies circuit design, reduces device count, and reduces
board space by putting two discrete devices in one small six−leaded
package. The SOT−363 is ideal for low−power surface mount applications
where board space is at a premium, such as portable products.
Surface Mount Comparisons:
SOT−363 SOT−23
Area (mm
2
) 4.6 7.6
Max Package P
D
(mW) 120 225
Device Count 2 1
Space Savings:
Package 1 x SOT−23 2 x SOT−23
SOT−363 40% 70%
The MBD110DW and MBD330DW devices are spin−offs of our
popular MMBD101LT1 and MMBD301LT1 SOT−23 devices. They are
designed for high−efficiency UHF and VHF detector applications. Readily
available to many other fast switching RF and digital applications.
Features
• Extremely Low Minority Carrier Lifetime
• Very Low Capacitance
• Low Reverse Leakage
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating Symbol Value Unit
Reverse Voltage MBD110DWT1G
MBD330DWT1G
V
R
7.0
30
V
Forward Current (DC) MBD330DWT1G I
F
200 Max mA
Forward Power Dissipation T
A
= 25°C P
F
120 mW
Junction Temperature T
J
−55 to +125 °C
Storage Temperature Range T
stg
−55 to +150 °C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
http://onsemi.com
SC−88 / SOT−363
CASE 419B
STYLE 6
MARKING DIAGRAM
Anode 1 6 Cathode
Cathode 3 4 Anode
N/C 2 5 N/C
xx M G
G
xx = Device Code
Refer to Ordering Table,
page 2
M = Date Code
G = Pb−Free Package
(Note: Microdot may be in either location)
1
6
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
1
