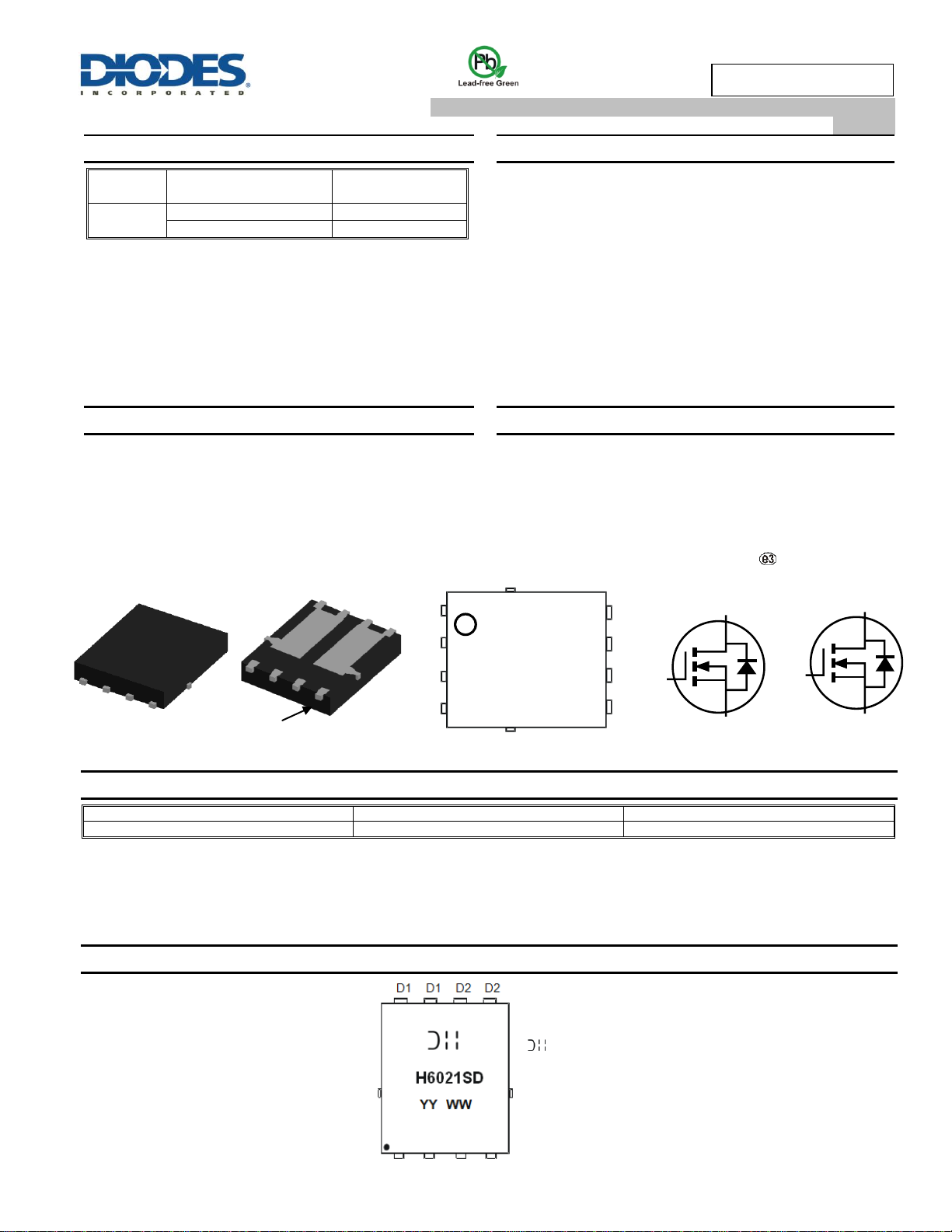

DMNH6021SPDQ
Document number: DS38111 Rev. 2 - 2
1 of 7
www.diodes.com
June 2016
© Diodes Incorporated
DMNH6021SPDQ
ADVANCE INFO R MA T I O N
ADVANCED I NF ORMATION
60V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
PowerDI
Product Summary
V
(BR)DSS
R
DS(ON)
Max
I
D
Max
T
C
= +25°C
60V
25mΩ @ V
GS
= 10V
32A
40mΩ @ V
GS
= 4.5V
25A
Description and Applications
This MOSFET is designed to meet the stringent requirements of
Automotive applications. It is qualified to AEC-Q101, supported by a
PPAP and is ideal for use in:
Backlighting
Power Management Functions
DC-DC Converters
Features and Benefits
Rated to +175°C – Ideal for High Ambient Temperature
Environments
100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
High Conversion Efficiency
Low R
DS(ON)
– Minimizes On-State Losses
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: PowerDI
®
5060-8 (Type C)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
DMNH6021SPDQ-13
PowerDI5060-8 (Type C)
2,500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Pin Out
Top View
Equivalent Circuit
= Manufacturer’s Marking
H6021SD = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 16 = 2016)
WW = Week (01 - 53)
D1
S1
G1
D2
S2
G2
Bottom View
Top View
S1
D2
D1
D1
D2
G1
S2
G2
Pin1
PowerDI is a registered trademark of Diodes Incorporated.
