© Semiconductor Components Industries, LLC, 2005
July, 2005 − Rev. 12
1 Publication Order Number:
MC74VHC1GT50/D
MC74VHC1GT50
Noninverting Buffer /
CMOS Logic Level Shifter
TTL−Compatible Inputs
The MC74VHC1GT50 is a single gate noninverting buffer
fabricated with silicon gate CMOS technology. It achieves high speed
operation similar to equivalent Bipolar Schottky TTL while
maintaining CMOS low power dissipation.
The internal circuit is composed of three stages, including a buffer
output which provides high noise immunity and stable output.
The device input is compatible with TTL−type input thresholds and
the output has a full 5.0 V CMOS level output swing. The input
protection circuitry on this device allows overvoltage tolerance on the
input, allowing the device to be used as a logic−level translator from
3.0 V CMOS logic to 5.0 V CMOS Logic or from 1.8 V CMOS logic to
3.0 V CMOS Logic while operating at the high−voltage power supply.
The MC74VHC1GT50 input structure provides protection when
voltages up to 7.0 V are applied, regardless of the supply voltage. This
allows the MC74VHC1GT50 to be used to interface high voltage to
low voltage circuits. The output structures also provide protection
when V
CC
= 0 V. These input and output structures help prevent
device destruction caused by supply voltage − input/output voltage
mismatch, battery backup, hot insertion, etc.
Features
• Designed for 1.65 V to 5.5 V
CC
Operation
• High Speed: t
PD
= 3.5 ns (Typ) at V
CC
= 5.0 V
• Low Power Dissipation: I
CC
= 1 mA (Max) at T
A
= 25°C
• TTL−Compatible Inputs: V
IL
= 0.8 V; V
IH
= 2.0 V, V
CC
= 5.0 V
• CMOS−Compatible Outputs: V
OH
> 0.8 V
CC
; V
OL
< 0.1 V
CC
@Load
• Power Down Protection Provided on Inputs and Outputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Chip Complexity: FETs = 104; Equivalent Gates = 26
• Pb−Free Packages are Available

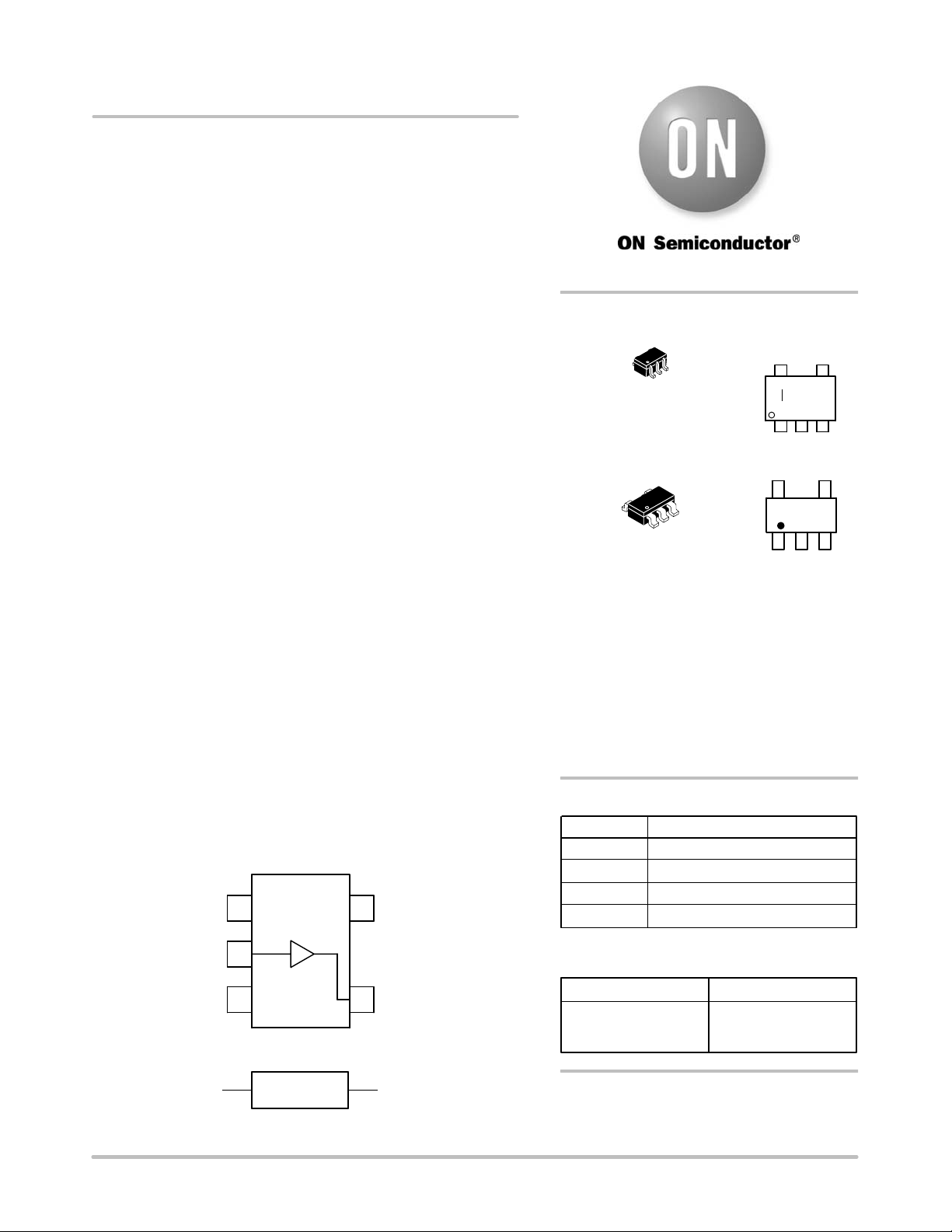

Figure 1. Pinout (Top View)
IN A
OUT Y
1
V
CC
NC
IN A
OUT YGND
Figure 2. Logic Symbol
1
2
34
5
PIN ASSIGNMENT
1
2
3 GND
NC
IN A
4
5V
CC
OUT Y
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
FUNCTION TABLE
L
H
A Input Y Output
L
H
SC−88A/SOT−353/SC−70
DF SUFFIX
CASE 419A
TSOP−5/SOT−23/SC−59
DT SUFFIX
CASE 483
MARKING
DIAGRAMS
http://onsemi.com
1
5
1
5
1
5
VL AYW G
G
VL M G
VL = Device Code
M = Date Code*
A = Assembly Location
Y = Year
W = Work Week
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or position ma
y
vary depending upon manufacturing location
.
1
5
M
G
