LV8804FV
Overview
LV8804FV is a 3-phase sensorless motor driver IC.
3-phase driver allows low power consumption and low vibration. And Hall sensorless drive allows
reduction of the size of a motor system.
This IC is suitable for use in products which require high reliability and long life such as note server fan
and refrigerator fan.
Function
Direct PWM three-phase sensorless motor driver
Built-in current limit circuit (Operates when RF resistance is 0.25 ohm and Io=1A)
NchDMOS output transistor
Built-in lock protection and auto-recovery circuit
FG (rotation count) output signal pin
Built-in TSD (thermal shutdown) circuit
Minimum speed setting (MINSP pin)
Motor startup with soft-start (SOFTST pin)
Typical Applications
Server
Refrigerator

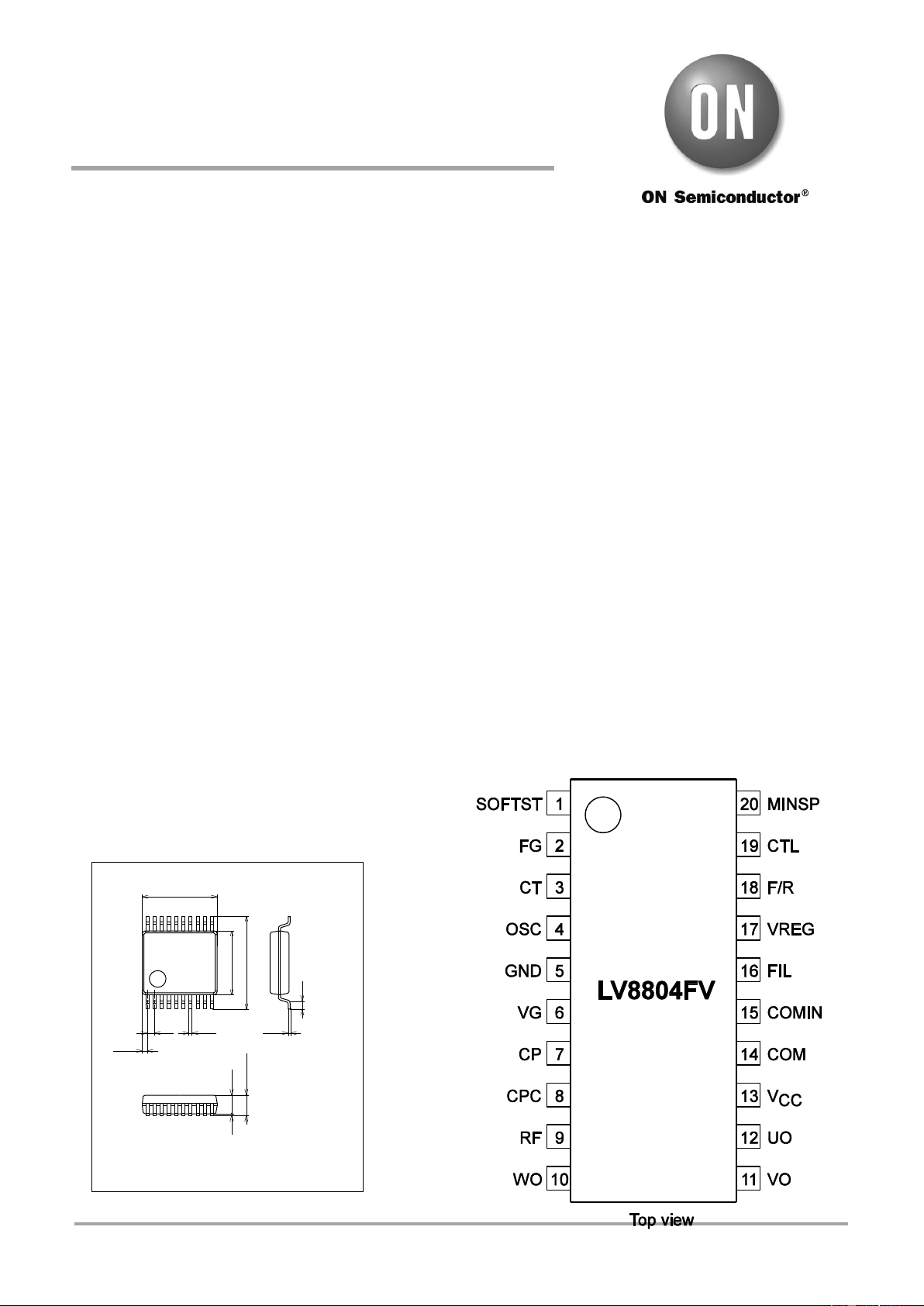

Desktop Computer Pin Assignment
Package Dimensions
unit : mm (typ)
Caution: The package dimension is a reference value, which is not a guaranteed value.
Bi-CMOS LSI
PC and Server
Fan Motor Driver
Application Note
SANYO : SSOP20J(225mil)
5.2
4.4
6.4
0.5
0.1
(1.3)
1.5 MAX
0.22
0.150.5
(0.35)
12
20
