http://onsemi.com
Semiconductor Components Industries, LLC, 2013
December, 2013
LV8760T/LV8761V
Overview
The LV8760T /LV8761V are an H-bridge driver that can control four operation modes (forward, reverse,
brake, and standby) of a motor. The low on-resistance, zero standby current, highly efficient IC is optimal for
use in driving brushed DC motors for office equipment.
Function
Forward/reverse H-bridge motor driver: 1 channel
Built-in current limiter circuit
Built-in thermal protection circuit
Built-in short-circuit protection function
Unusual condition warning output pin (LV8761V only)
Short-circuit protection circuit selectable from latch-type or auto reset-type (LV8761V only)
Typical Applications
MFP (Multi Function Printer)
PPC (Plain Paper Copier)
LBP (Laser Beam Printer)
Photo Printer
Scanner
Industrial
Cash Machine
Entertainment

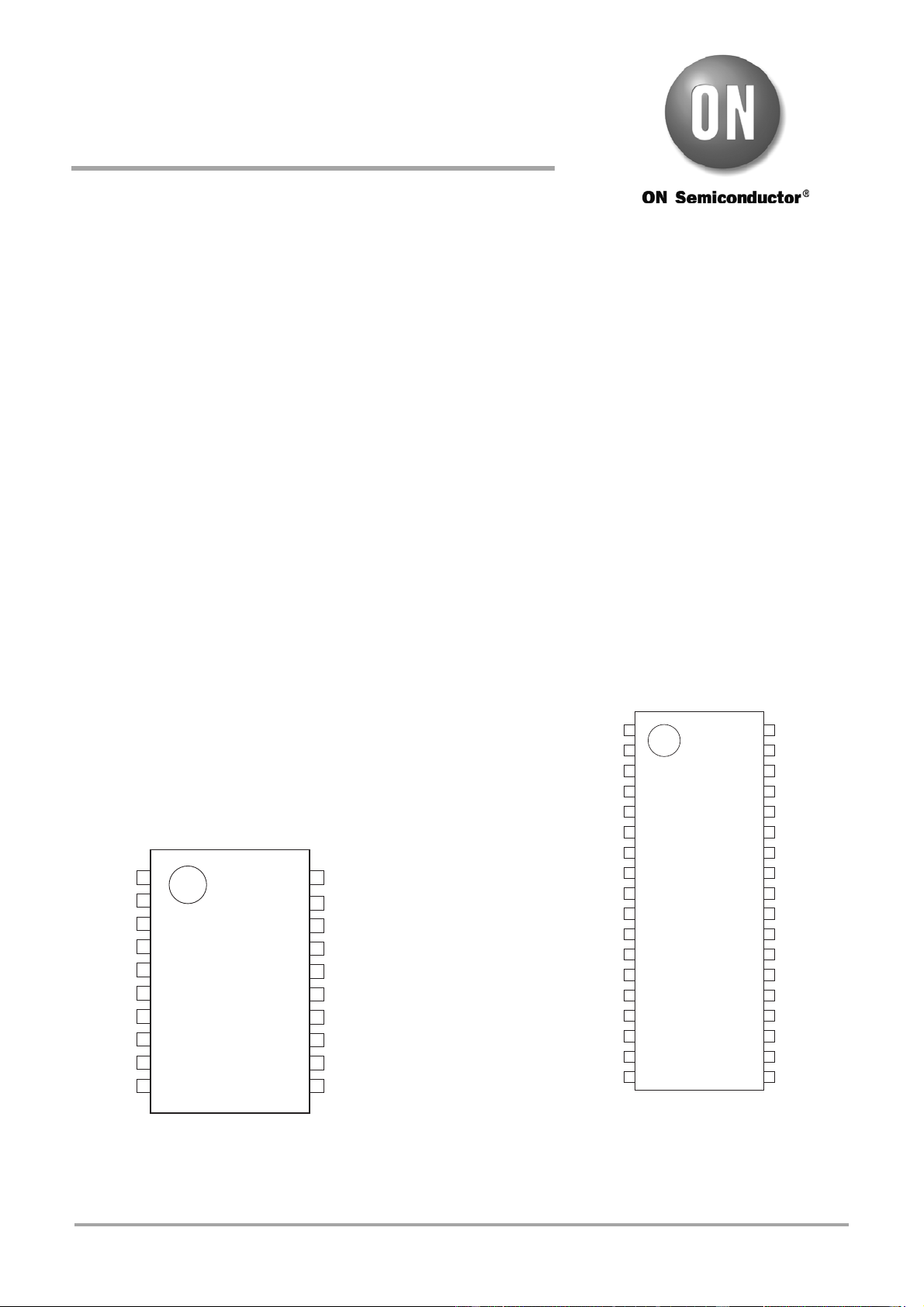

Pin Assignment
Packages are not to scale.
TSSOP20J (225mil) SSOP36J (275mil)
Bi
-
CMOS
LSI
Forward/Reverse H-bridge Driver
Application Note
1PGND
2OUTB
3OUTB
4RNF
5RNF
6VM
7VM
8OUTA
9OUTA
10PS
20 V
CC
19 SCP
18 VREF
17 IN2
16 IN1
15 REG
5
14 CP1
13 CP2
12 VG
11 GND
LV8760T
1V
CC
2PGND
3NC
4NC
5NC
6OUTB
7OUTB
8RNF
9RNF
10VM
36 EMM
35 SCP
34 VREF
33 NC
32 NC
31 NC
30 IN2
29 IN1
28 NC
27 REG5
11VM 26 CP1
12OUTA 25 CP2
13OUTA 24 NC
14NC 23 GND
15NC 22 NC
16NC 21 VG
17PS 20 NC
18GND 19 EMOT
Top view
LV8761V
