Semiconductor Components Industries, LLC, 2013
February, 2013
http://onsemi.com
LV8413GP
Overview
The LV8413GP is an H-bridge, 2-channel motor driver IC and is able to control 4 modes of forward, reverse,
brake, and standby.
This IC housed in a miniature package is optimum for use in a stepping motor driving system for DSC or a
camera module of cell phones.
Function
Saturation drive H-bridge : 2-channels
Built-in thermal protection circuit
Built-in low voltage malfunction prevention circuit
Incorporates a transistor for driving photosensors
Typical Applications
DSC
Security camera
CCTV

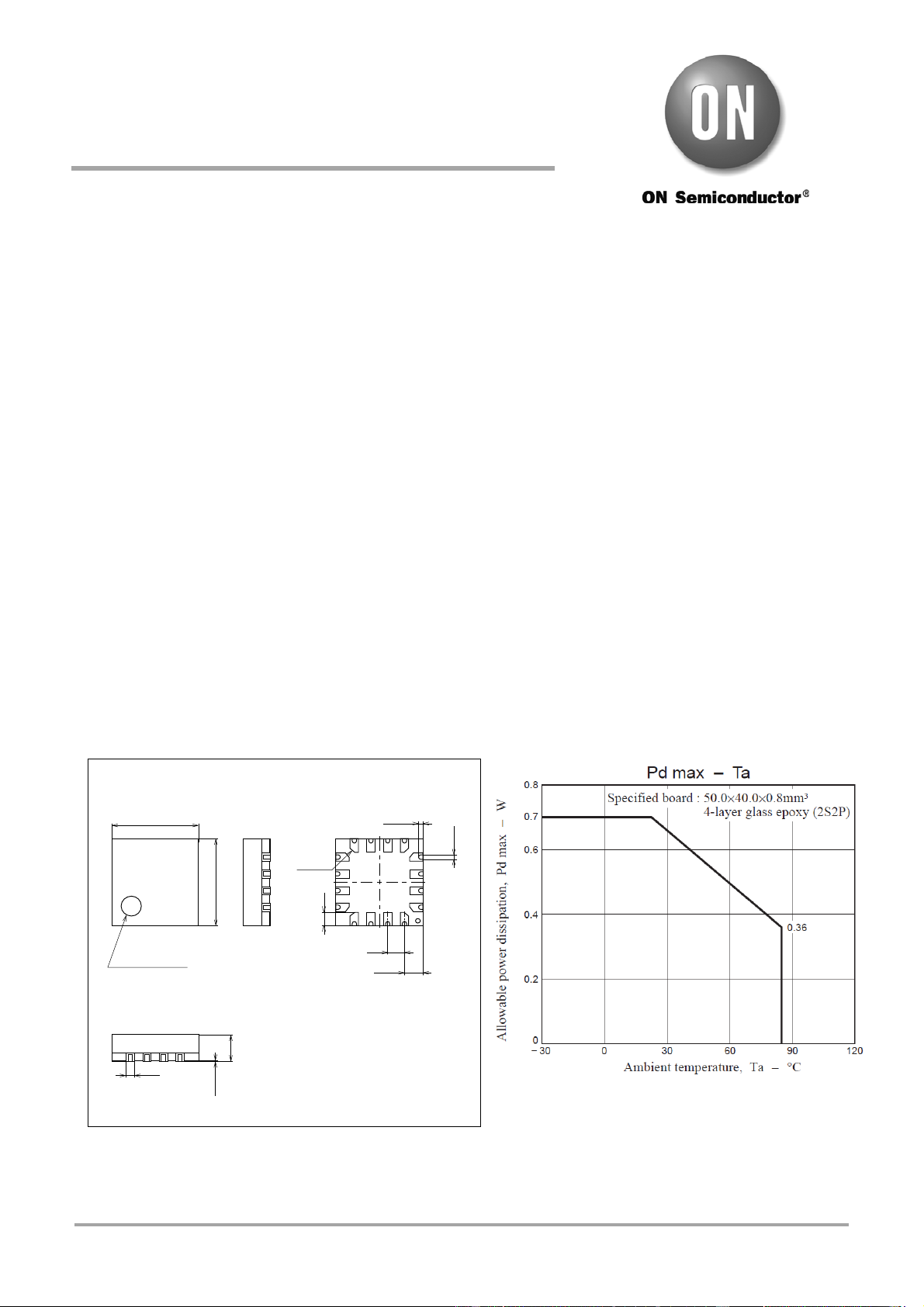

Package Dimensions
unit : mm (typ)
Bi-CMOS LSI
For DSC, and Cell Phone Camera Modules
H-Bridge
2-channel Motor Driver
Application Note
2.6
2.6
0.4
0.8
0.25
(0.035)
SIDE VIEW
SIDE VIEW
BOTTOM VIEW
TOP VIEW
LASER MARKED
INDEX
0.5
(0.55)
(C0.116)
(0.13)
(0.125)
12
16
SANYO : VCT16(2.6X2.6)
