March, 2012 41 Micrel, Incorporated
Ethernet Product Highlight
IEEE 1588v2 EtherSynch™ Switch for
Industrial Ethernet Networks
Micrel's KSZ84XX family provides effi cient end-device connectivity for
Industrial Ethernet networks, minimizing per-device attachment costs.
The KSZ84XX family features EtherSynch™ technology, blending
IEEE 1588v2 time stamping, precision local clock, synchronized I/O,
and wire-speed Ethernet switching in a compact package. The device
supports leading Industrial Ethernet standards including Ethernet/IP™,
Profi net™, PowerLink™, among others.
Precision GPIO extends synchronization to local devic-
es and allows multiple end devices to share the Industrial
Ethernet attachment. The 12 Precision GPIO are capable of
creating complex waveforms, with multiple GPIO events supported
per pin.
Micrel pre-qualifi ed and optimized the KSZ84XX family to operate with
an optimized Precision Timing Protocol (PTPv2) protocol stack to get up
and running quickly.
The hardware-oriented chip architecture reduces synchronization and
communications processing demands, streamlining the Host CPU.
Micrel features the industry's most robust, and low-power Industrial
Ethernet switches, complemented by advanced physical layer
technology, and power management.
The KSZ84XX family is the ideal choice for real-time, Industrial Ethernet
applications, and ease of integration with Host CPUs.
Applications
• Industrial Ethernet end-device attachments for both distributed and
centralized topologies
• Daisy Chained 1588 networks
Ordering Information
P/N Ports Interface
KSZ8463MLI 3 MII
KSZ9463RLI 3 RMII
KSZ8442HLI 3 8/16-Bit
KSZ8441HLI 1 8/16-Bit
• Package: ROHS 64-pin LQFP (10mm x 10mm)
• Power: single 3.3V supply, @ < 500mW
• Industrial temperature range: -40°C to +85°C

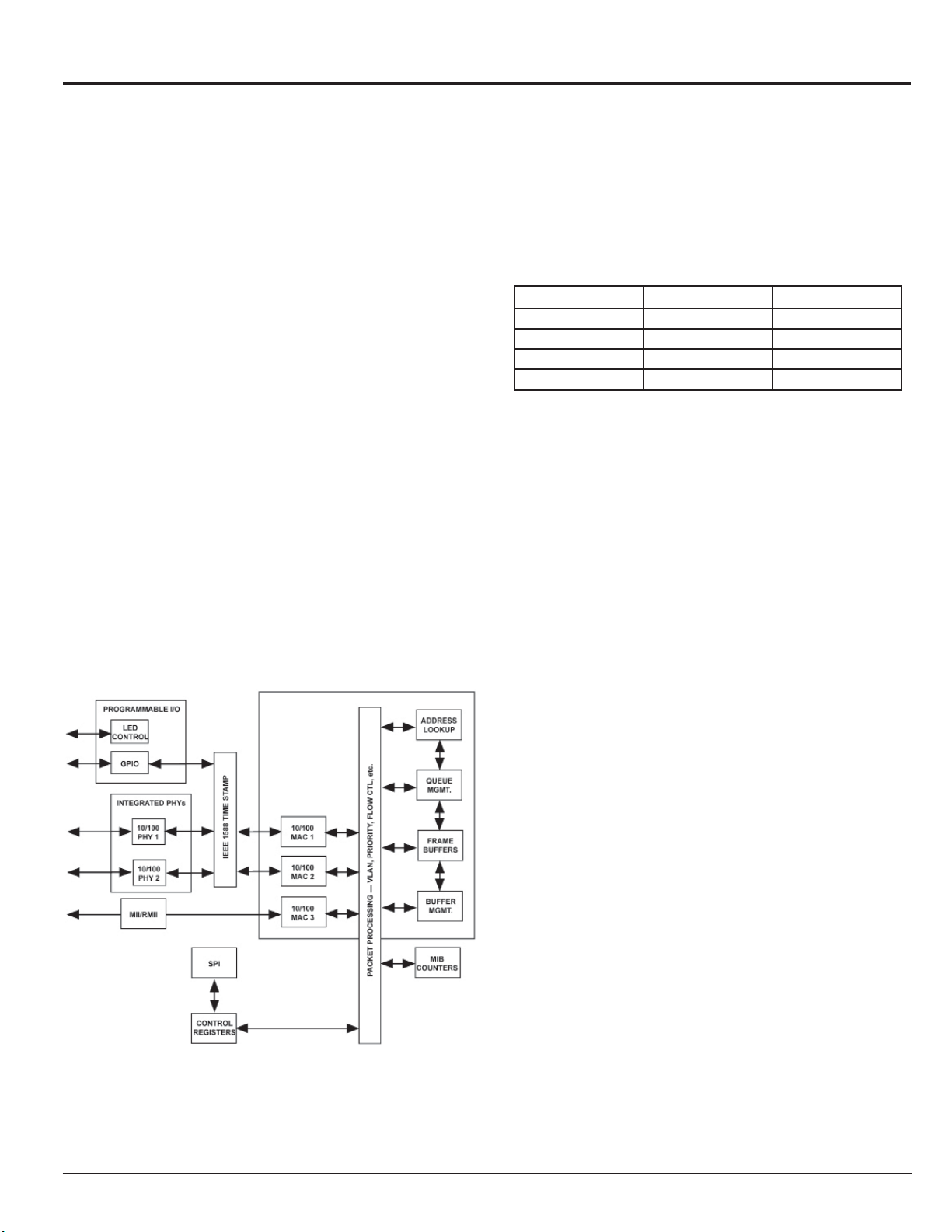

KSZ8463MLI / RLI
