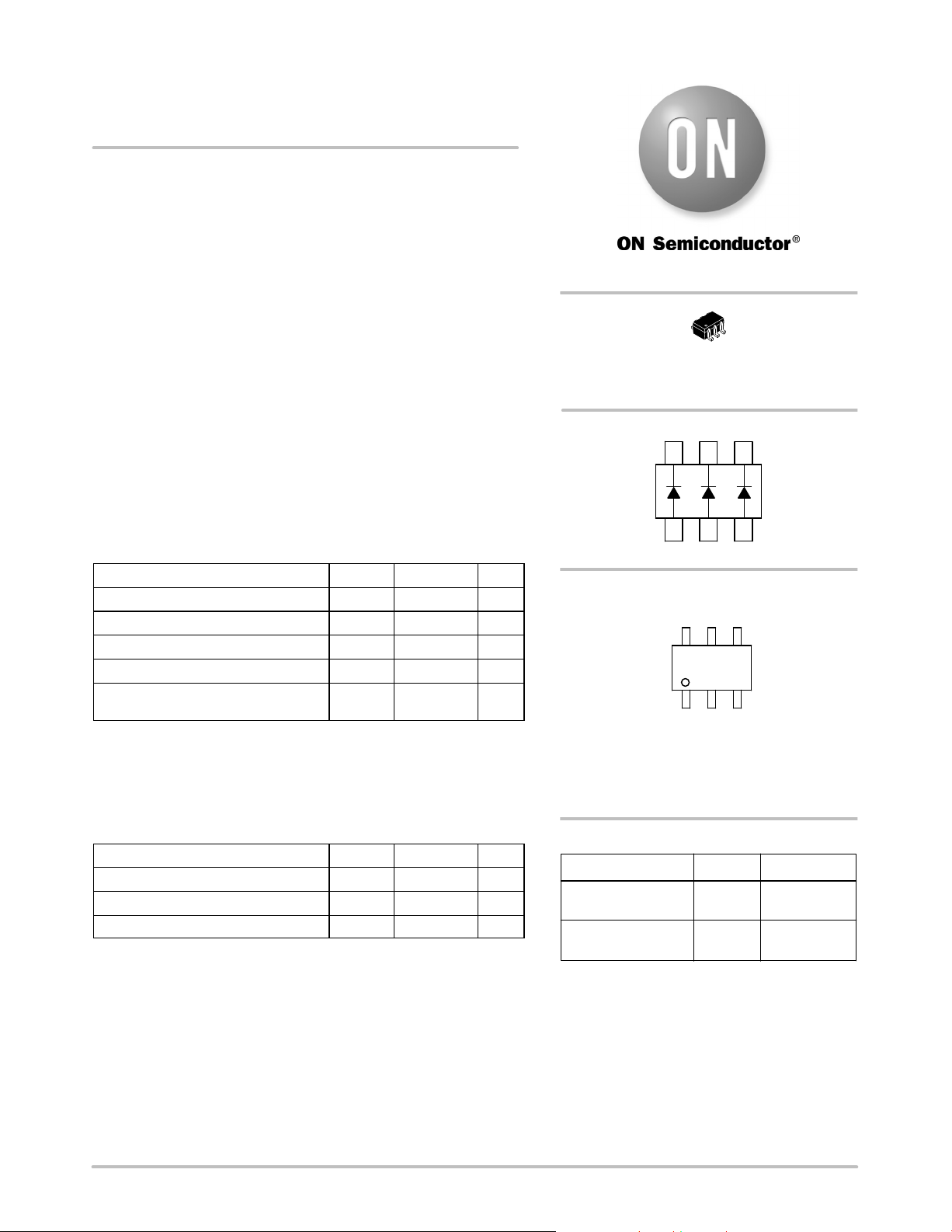

HN2D02FUTW1T1G,
SHN2D02FUTW1T1G
Ultra High Speed
Switching Diodes
These Silicon Epitaxial Planar Diodes are designed for use in ultra
high speed switching applications. These devices are housed in the
SC−88 package which is designed for low power surface mount
applications.
Features
Fast t
rr
, < 3.0 ns
Low C
D
, < 2.0 pF
AEC−Q101 Qualified and PPAP Capable
S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS (T
A
= 25C)
Rating Symbol Value Unit
Reverse Voltage V
R
80 V
Peak Reverse Voltage V
RM
85 V
Forward Current (Note 1) I
F
100 mAdc
Peak Forward Current (Note 1) I
FM
240 mAdc
Peak Forward Surge Current (10 ms)
(Note 1)
I
FSM
1.0 Adc
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. This is maximum rating for a single diode. In the case of using 2 or 3 diodes,
the maximum ratings per diodes is 75% of the single diode.
THERMAL CHARACTERISTICS
Rating Symbol Max Unit
Power Dissipation P
D
300 mW
Junction Temperature T
J
150 C
Storage Temperature T
stg
−55 to + 150 C
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
SC−88
CASE 419B
STYLE 1
MARKING DIAGRAM
R7 = Specific Device Code
M = Date Code
G = Pb−Free Package
321
456
Device Package Shipping
†
ORDERING INFORMATION
HN2D02FUTW1T1G SC−88
(Pb−Free)
3000 /
Tape & Reel
(Note: Microdot may be in either location)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
1
6
R7 M G
G
SHN2D02FUTW1T1G SC−88
(Pb−Free)
3000 /
Tape & Reel
