FSUSB11MTCX 应用笔记

页码:/11页

下载 PDF

重新加载

下载

January 2005

Revised March 2005

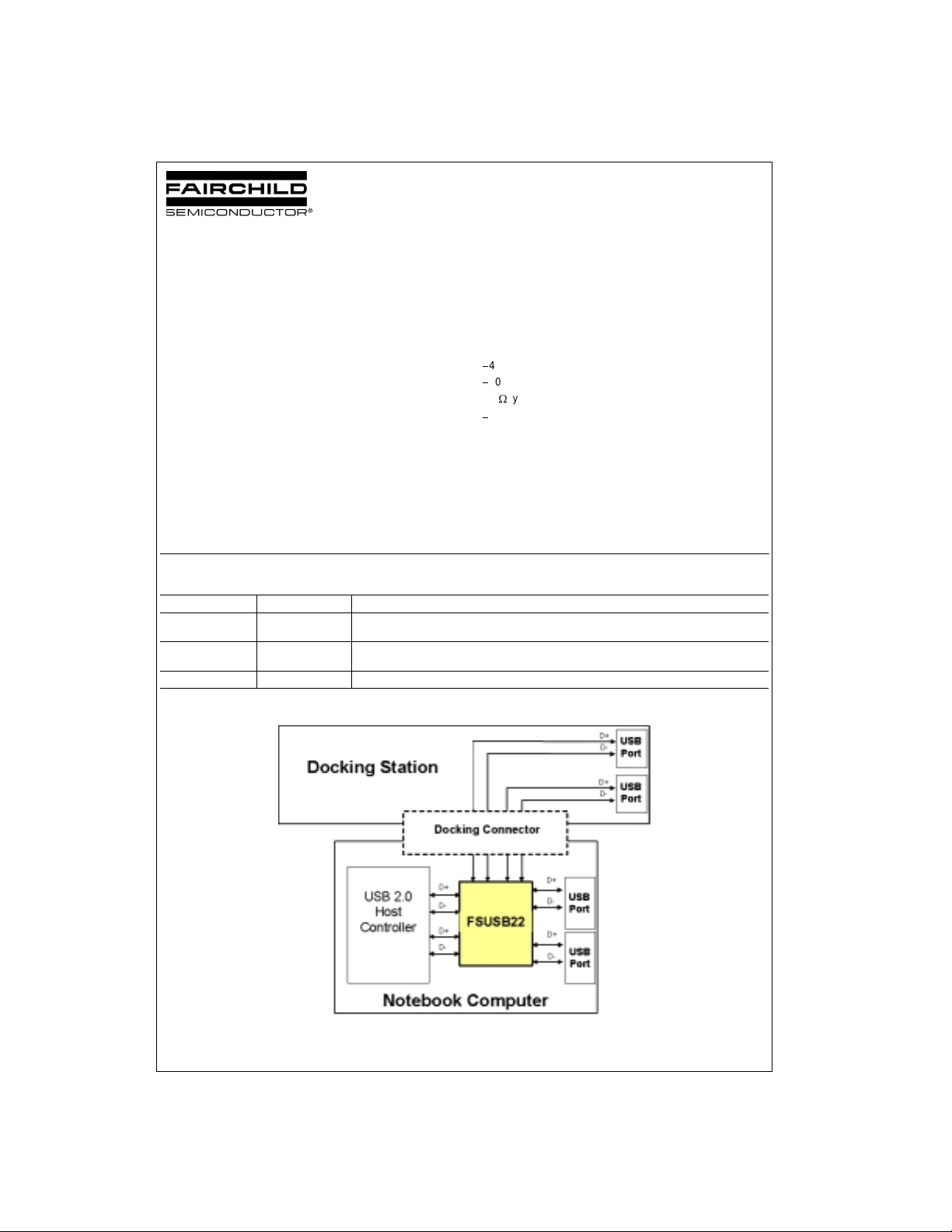

FSUSB22 Low Voltage Ultra Low Power USB High Speed (480 Mbps) Dual DPDT Switch

FSUSB22

Low Voltage Ultra Low Power

USB High Speed (480 Mbps) Dual DPDT Switch

General Description

FSUSB22 is a low power high bandwidth analog switch

specially designed for applications of the switching of high

speed USB 2.0 signals in handset and consumer applica-

tions such as cell phone, digital camera, and notebook with

hubs or controllers of limited USB I/O. The wide bandwidth

(750MHz) of this switch allows signals to pass with mini-

mum edge and phase distortion. Superior channel-to-chan-

nel crosstalk results in minimal interference. It is

compatible with high speed USB2.0 standard.

Features

■



40dB OFF Isolation at 250MHz

■



40dB non-adjacent channel crosstalk at 250MHz

■ 4.5

typical On Resistance (R

)

■



3dB bandwidth: 750MHz

■ Low power consumption (1uA max)

■ Control input: TTL compatible

■ Bidirectional operation

■ USB high speed and full speed signaling capability

Applications

• Cell phone, PDA, digital camera, and notebook

Ordering Code:

Devices also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.

Pb-Free package per JEDEC J-STD-020B.

Order Number Package Number Package Description

FSUSB22BQX MLP016E Pb-Free 16-Terminal Depopulated Quad Very-Thin Flat Pack No Leads (DQFN),

JEDEC MO-241, 2.5 x 3.5mm

FSUSB22QSC

(Preliminary)

MQA16 16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150" Wide

FSUSB22MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

页面指南

・引脚定义在 2页
・封装外形尺寸在 9页 10页 11页
・型号规则信息在 1页
・功能说明在 1页
・参数规格在 3页
・应用领域在 1页
・电气特性在 3页 4页
