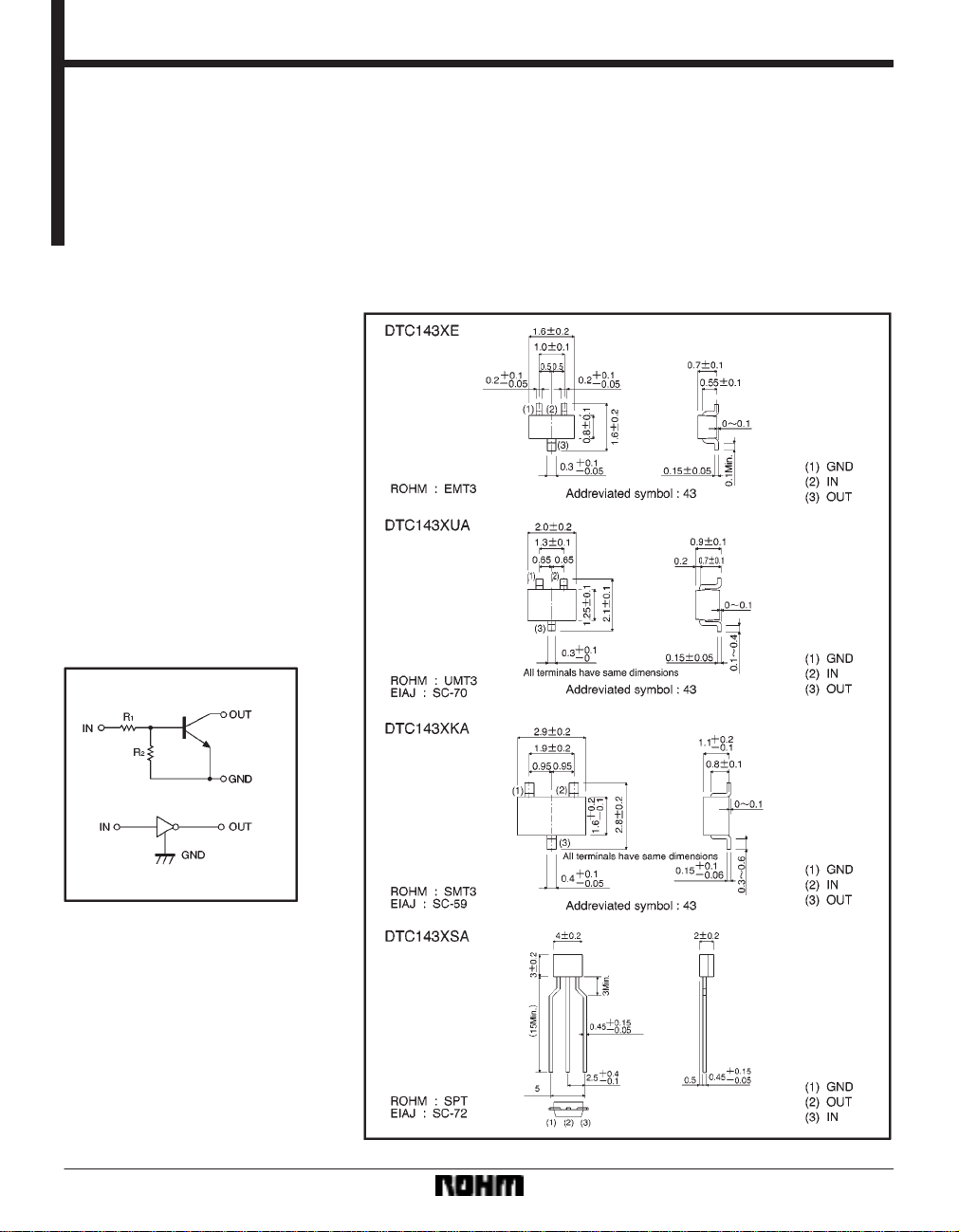

External dimensions (Units: mm)
426
Transistors
Digital transistors (built-in resistors)
DTC143XE / DTC143XUA / DTC143XKA
DTC143XSA
Features
1) Built-in bias resistors enable the
configuration of an inverter circuit
without connecting external input
resistors (see equivalent circuit).
2) The bias resistors consist of thin-
film resistors with complete isola-
tion to allow negative biasing of the
input. They also have the advan-
tage of almost completely eliminat-
ing parasitic effects.
3) Only the on/off conditions need to
be set for operation, making device
design easy.
Equivalent circuit
