POWERDI is a registered trademark of Diodes Incorporated.
DMTH4004LPS
Document number: DS37767 Rev.2 - 2
1 of 6
www.diodes.com
October 2015
© Diodes Incorporated
DMTH4004LPS
NEW PROD UCT
40V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
®
Product Summary
BV
DSS
R
DS(ON)
Max
I
D
T
C
= +25°C
40V
2.5mΩ @ V
GS
= 10V
100A
4mΩ @ V
GS
= 4.5V
100A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
)
and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Engine Management Systems
Body Control Electronics
DC-DC Converters
Features
Rated to +175°C – ideal for high ambient temperature
environments
100% Unclamped Inductive Switching – ensures more reliable
and robust end application
Low R
DS(ON)
– minimizes power losses
Low Qg – minimizes switching losses
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: POWERDI
®
5060-8
Case Material: Molded Plastic, ―Green‖ Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMTH4004LPS-13
POWERDI
®
5060-8
2,500 / Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

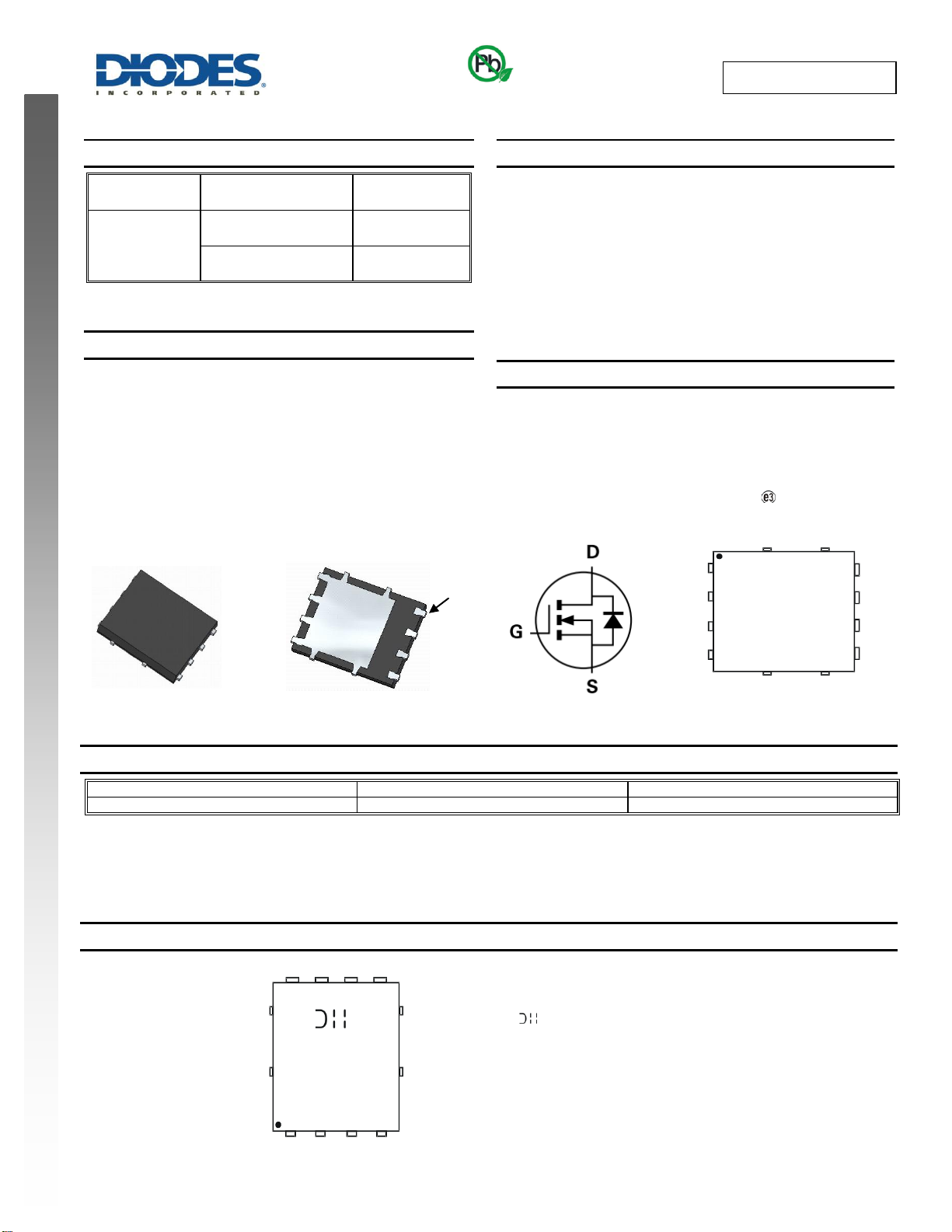

Marking Information
Bottom View
Top View
Pin Configuration
Top View
Internal Schematic
POWERDI
®
5060-8
Pin1
Green
S
D
D
G
D
D
S
S
S
D
S
S
G
D
D
D
H4004LS
YY
WW
= Manufacturer’s Marking
H4004LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 14 = 2014)
WW = Week (01 to 53)
