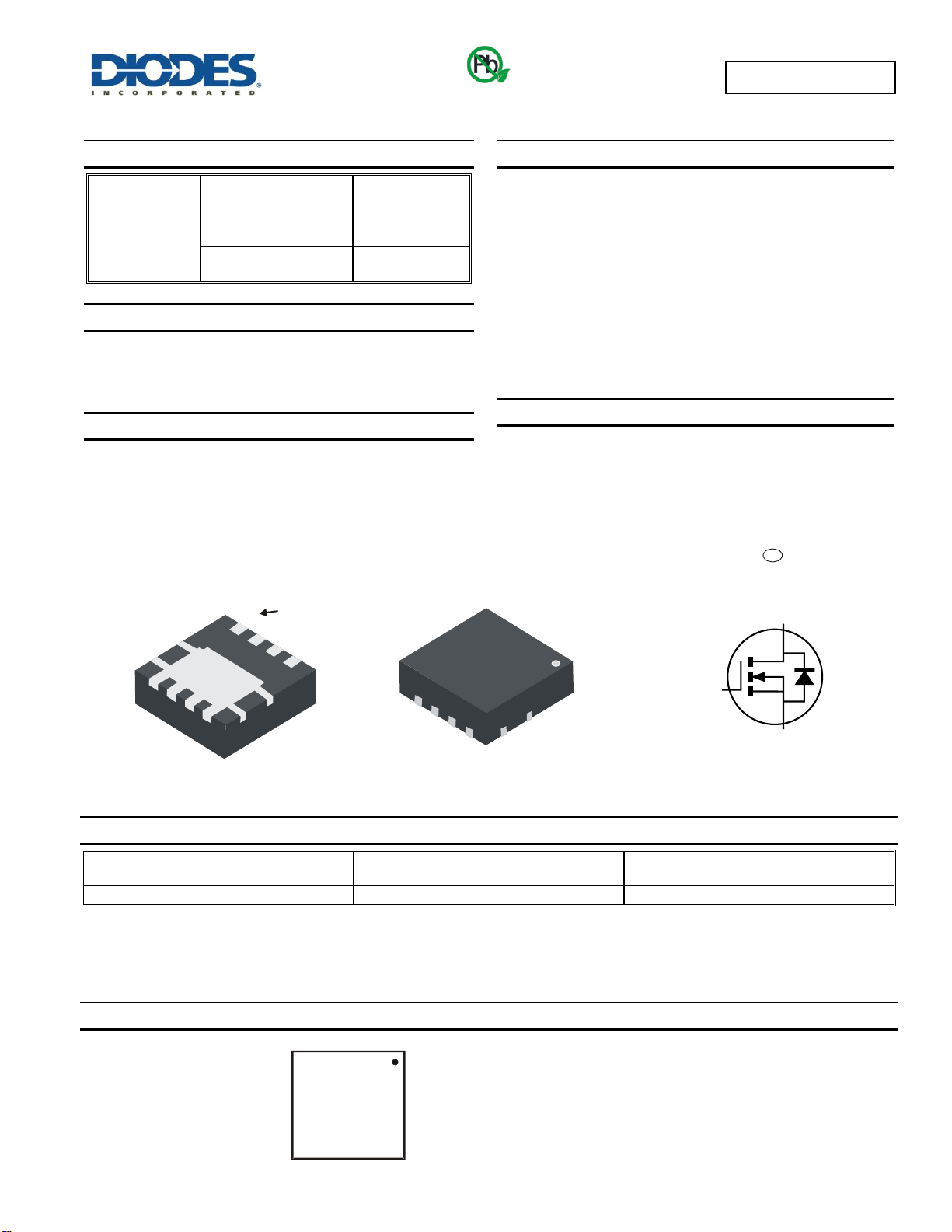

DMT10H015LFG
Document number: DS38222 Rev. 3 - 2
1 of 7
www.diodes.com
November 2015
© Diodes Incorporated
DMT10H015LFG
NEW PROD UCT
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
T
C
= +25°C
100V
13.5mΩ @ V
GS
= 10V
42A
18mΩ @ V
GS
= 6.0V
36A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
Synchronous Rectifier
Backlighting
Power Management Functions
DC-DC Converters
Features and Benefits
Low R
DS(ON)
– Ensures On State Losses Are Minimized
Excellent Q
gd x
R
DS (ON)
Product (FOM)
Advanced Technology for DC/DC Converters
Small Form Factor Thermally Efficient Package Enables Higher
Density End Products
Occupies Just 33% of The Board Area Occupied by SO-8
Enabling Smaller End Product
100% UIS (Avalanche) Rated
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: POWERDI
®
3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMT10H015LFG-7
POWERDI
®
3333-8
2,000/Tape & Reel
DMT10H015LFG-13
POWERDI
®
3333-8
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
S1H = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 15 = 2015)
WW = Week Code (01 to 53)
Bottom View
S
S
S
G
D
D
D
D
Pin 1
Equivalent Circuit
S1H
YYWW
e3
D
S
G
Green
