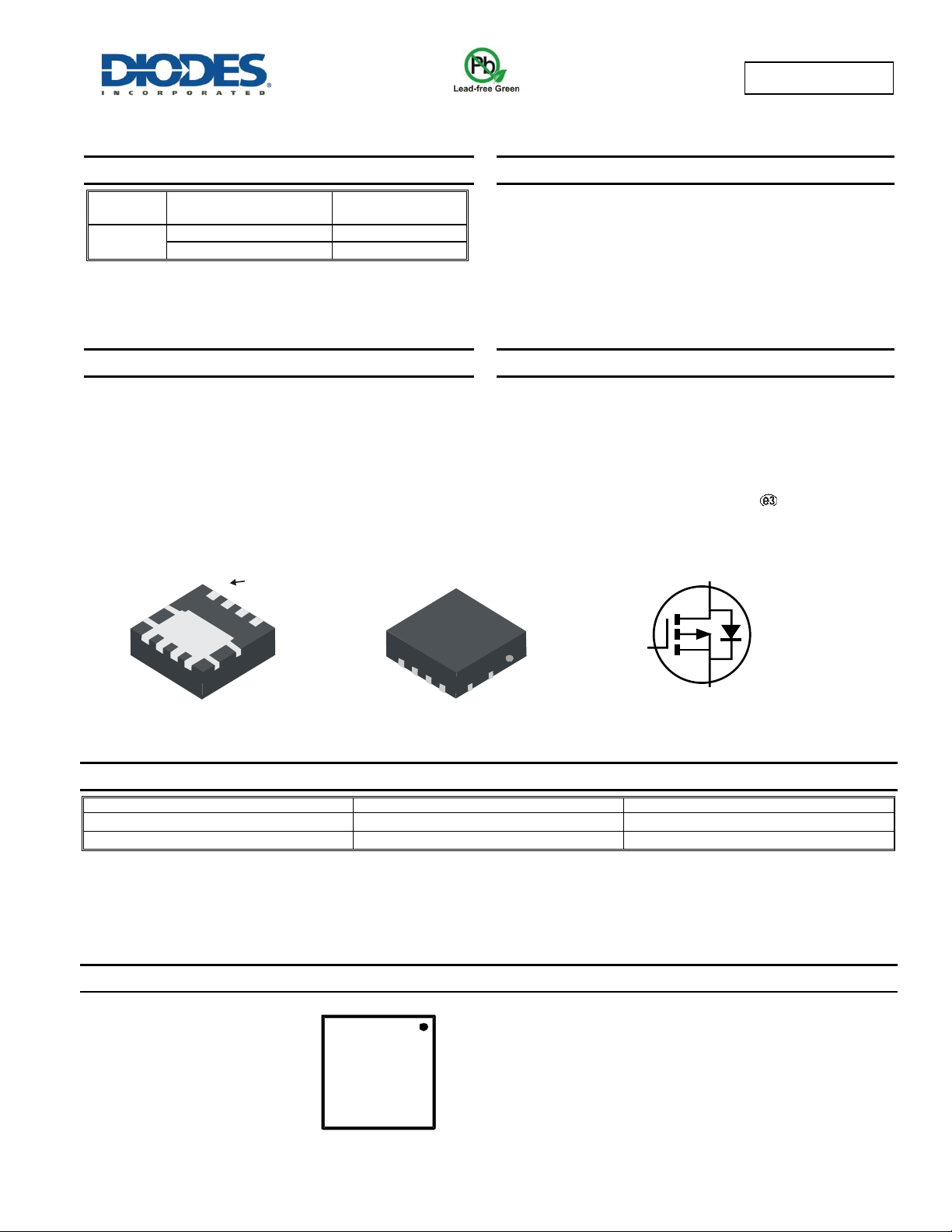

POWERDI is a registered trademark of Diodes Incorporated.
DMP6023LFG
Document number: DS37204 Rev. 2 - 2
1 of 6
www.diodes.com
January 2015
© Diodes Incorporated
DMP6023LFG
ADVANCE INFO R MA T I O N
60V P-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
®
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
-60V
25mΩ @ V
GS
= -10V
-7.7A
33mΩ @ V
GS
= -4.5V
-6.8A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Backlighting
Power Management Functions
DC-DC Converters
Features and Benefits
Low R
DS(ON)
– ensures on state losses are minimized
Small form factor thermally efficient package enables higher
density end products
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: POWERDI
®
3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.072 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMP6023LFG-7
POWERDI3333-8
2,000/Tape & Reel
DMP6023LFG-13
POWERDI3333-8
3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
Bottom View
POWERDI3333-8
P23= Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 13 = 2013)
WW = Week Code (01 ~ 53)
S
S
S
G
D
D
D
D
Pin 1
Equivalent Circuit
P23
YYWW
D
S
G
