DMP4015SSS

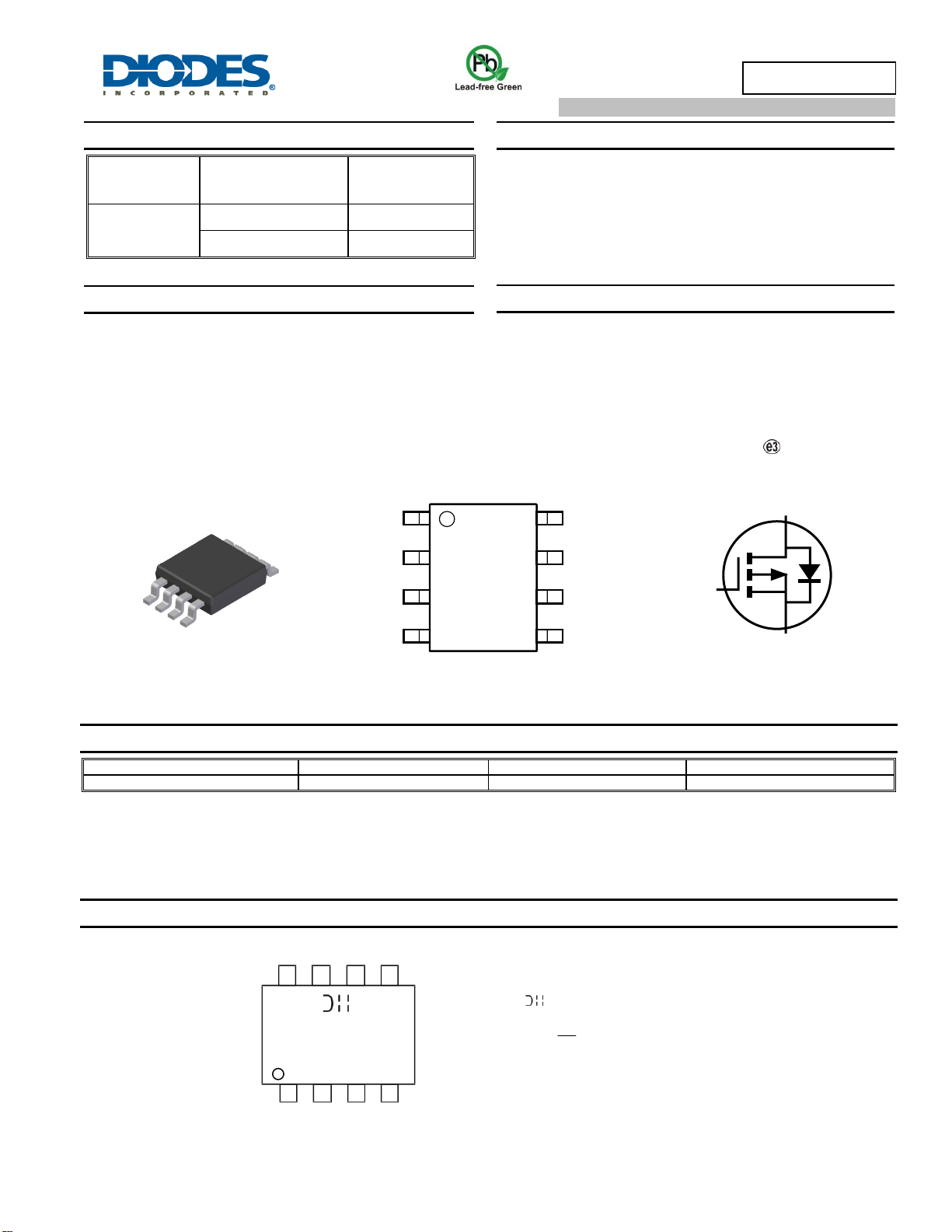

Document number: DS35416 Rev. 11 - 2
1 of 7
www.diodes.com
January 2017
© Diodes Incorporated
DMP4015SSS
NEW PROD UCT
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON) Max
I
D
T
A
= +25°C
-40V
11mΩ @ V
GS
= -10V
-10.1A
15mΩ @ V
GS
= -4.5V
-8.8A
Description and Application
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
DC-DC Converters
Power Management Functions
Analog Switch
Features and Benefits
100% Unclamped Inductive Switch (UIS) Test in Production
Low Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (Approximate)
Ordering Information (Note 4)
Part Number
Qualification
Case
Packaging
DMP4015SSS-13
Standard
SO-8
2,500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SO-8
Top View
Top View
Internal Schematic
D
S
D
D
D
S
S
G
Equivalent circuit
D
S
G
1 4
8 5
P4015SS
WW
YY
1 4
8 5
P4015SS
WW
YY
= Manufacturer’s Marking
P4015SS = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 16 = 2016)
WW = Week (01 to 53)
