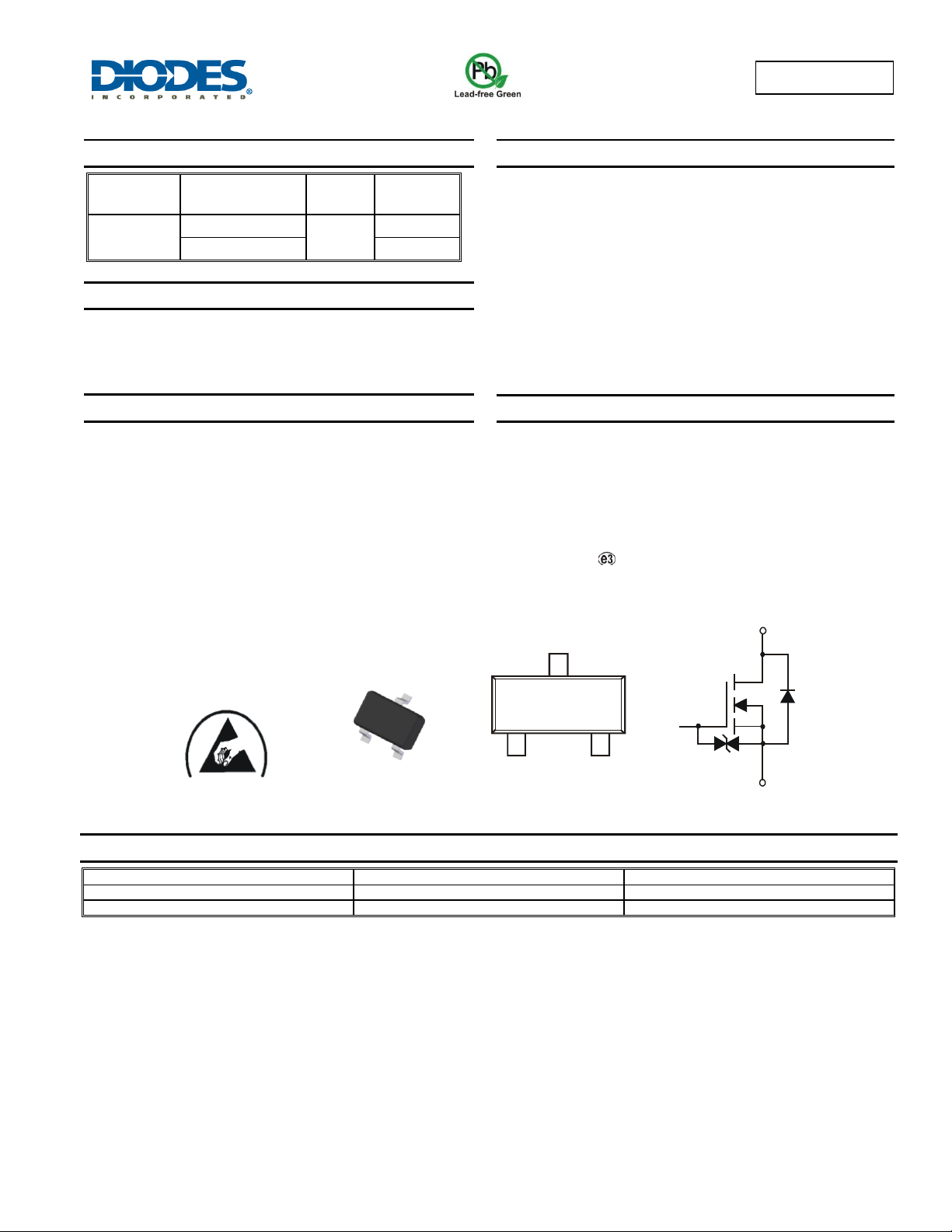

DMN65D8LQ
Document number: DS38179 Rev. 1 - 2
1 of 8
www.diodes.com
September 2015
© Diodes Incorporated
DMN65D8LQ
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
60V
3Ω @ V
GS
= 10V
SOT23
310mA
4Ω @ V
GS
= 5V
270mA
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
), yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Battery Operated Systems and Solid-State Relays
Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc.
Features
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Small Surface Mount Package
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT23
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating - Matte Tin Finish Annealed over Alloy 42
Leadframe).
Weight: 0.006 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
DMN65D8LQ-7
SOT23
3,000/Tape & Reel
DMN65D8LQ-13
SOT23
10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
SOT23
D
G
S
ESD PROTECTED TO 1kV
Source
Gate
Protection
Diode
Gate
Drain
Top View
Top View
Pin Configuration
Equivalent Circuit
