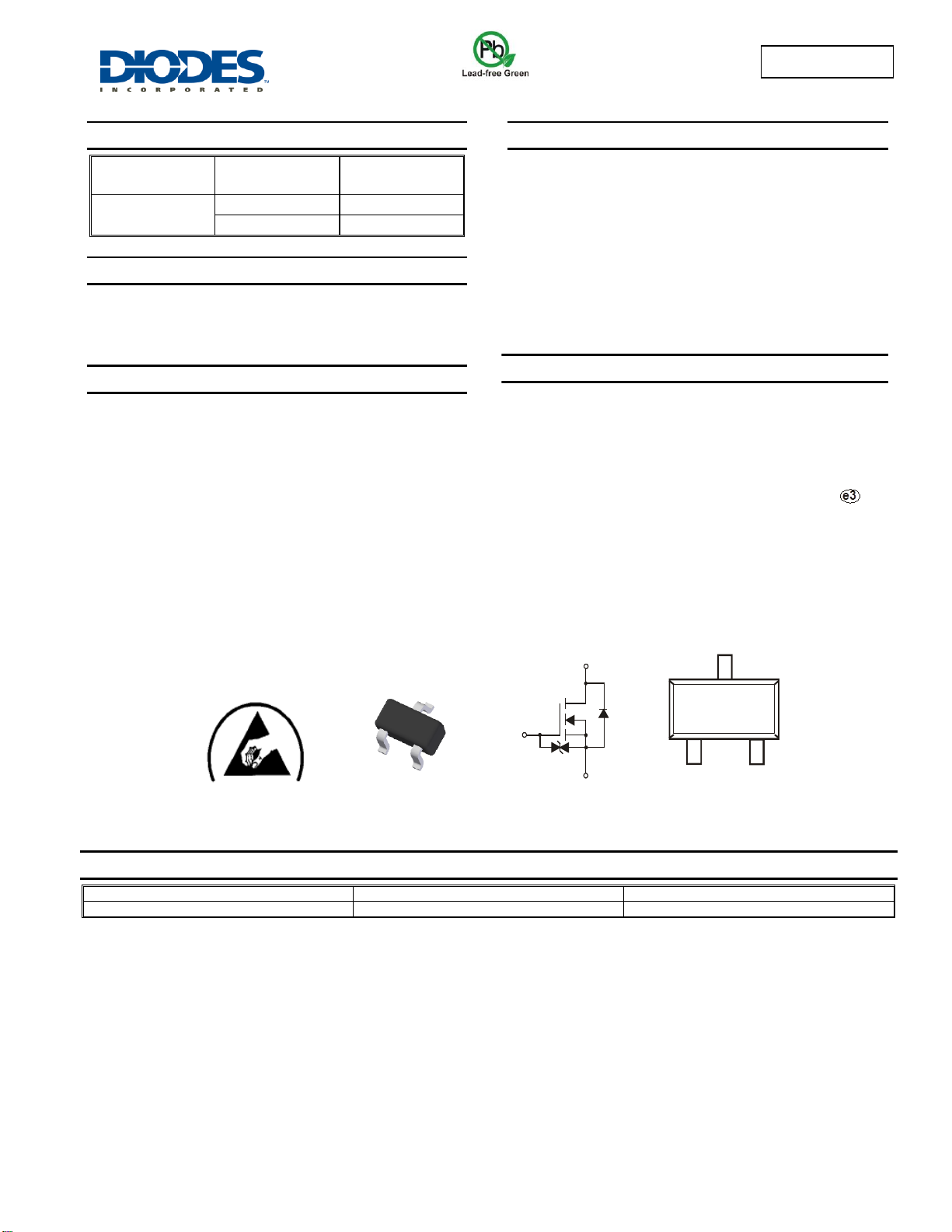

DMN601TK
Document number: DS30654 Rev. 6 - 2
1 of 6
www.diodes.com
September 2014
© Diodes Incorporated
DMN601TK
N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
60V
2Ω @ V
GS
= 10V
0.3A
3Ω @ V
GS
= 5V
0.2A
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making
it ideal for high efficiency power management applications.
Applications
Motor Control
Power Management Functions
Features
Low On-Resistance: R
DS(ON)
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected Up To 2kV
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT-523
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish Matte Tin Annealed over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.002 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMN601TK-7
SOT-523
3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
SOT-523
TOP VIEW
TOP VIEW
Pin Out Configuration
ESD Protected up to 2kV
Source
EQ U IVA LENT C IR CU IT
G ate
P rotection
D iode
G ate
Drain
G S
D
