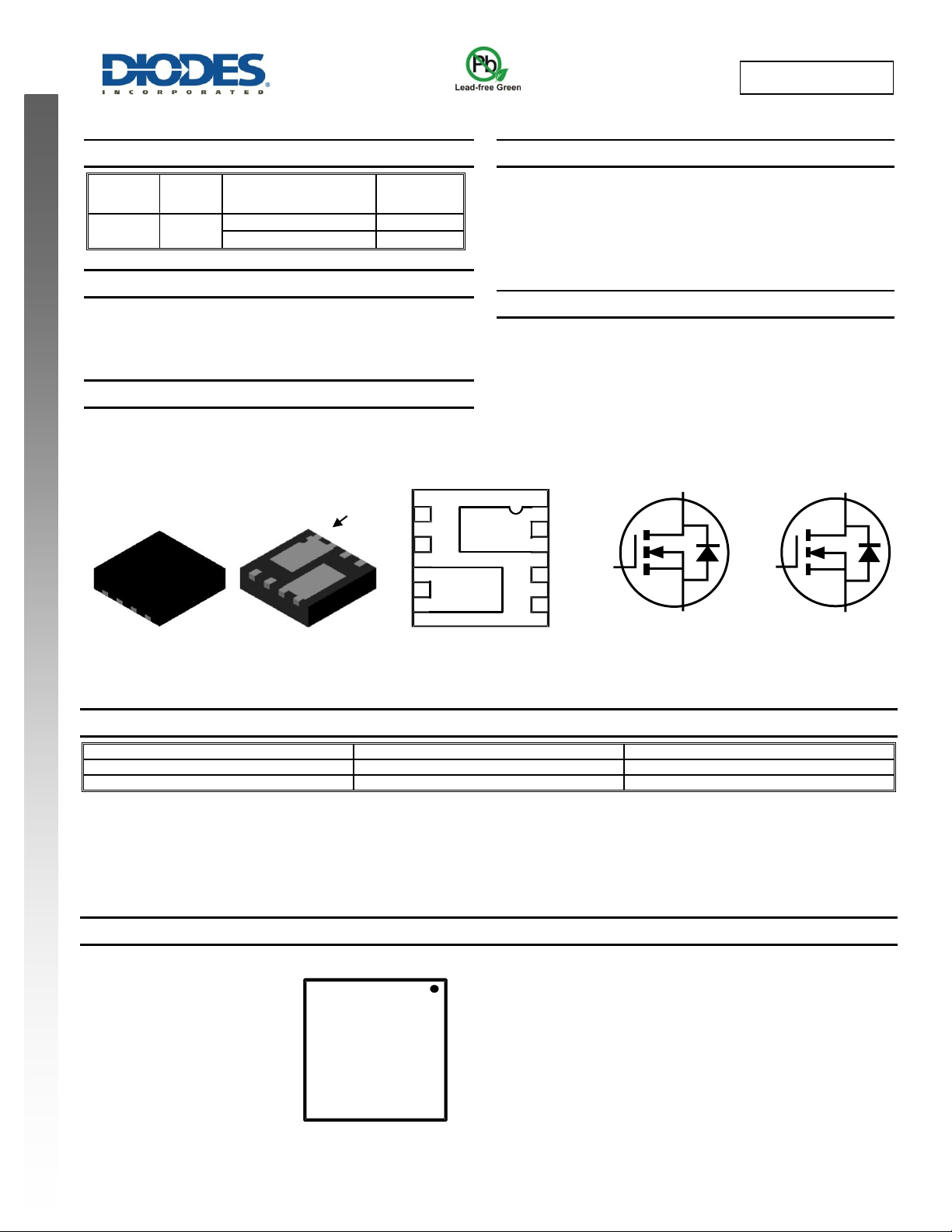

DMN3016LDN
Document number: DS37307 Rev. 2 - 2
1 of 7
www.diodes.com
January 2015
© Diodes Incorporated
DMN3016LDN
ADVANCED I NF ORMATION
NEW PRODUCT
30V DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(ON) max
I
D MAX
T
A
= +25°C
N-Channel
30V
20mΩ @ V
GS
= 10V
7.3A
24mΩ @ V
GS
= 4.5V
6.7A
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
DC Motor Control
DC-AC Inverters
Features
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: V-DFN3030-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Weight: 0.02 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMN3016LDN-7
V-DFN3030-8
3000/Tape & Reel
DMN3016LDN-13
V-DFN3030-8
10000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Bottom View
Top View
Equivalent Circuit
Q1 N-Channel MOSFET
Q2 N-Channel MOSFET
V-DFN3030-8
N16 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 13 for 2013)
WW = Week Code (01 ~ 53)
N16
YYWW
D2
S2
G2
D1
S1
G1
Pin 1
Pin out Configuration
(Bottom View)
G1
S2
D1
D2
D1
G2
S1
D2
1
2
3
4
8
7
6
5
