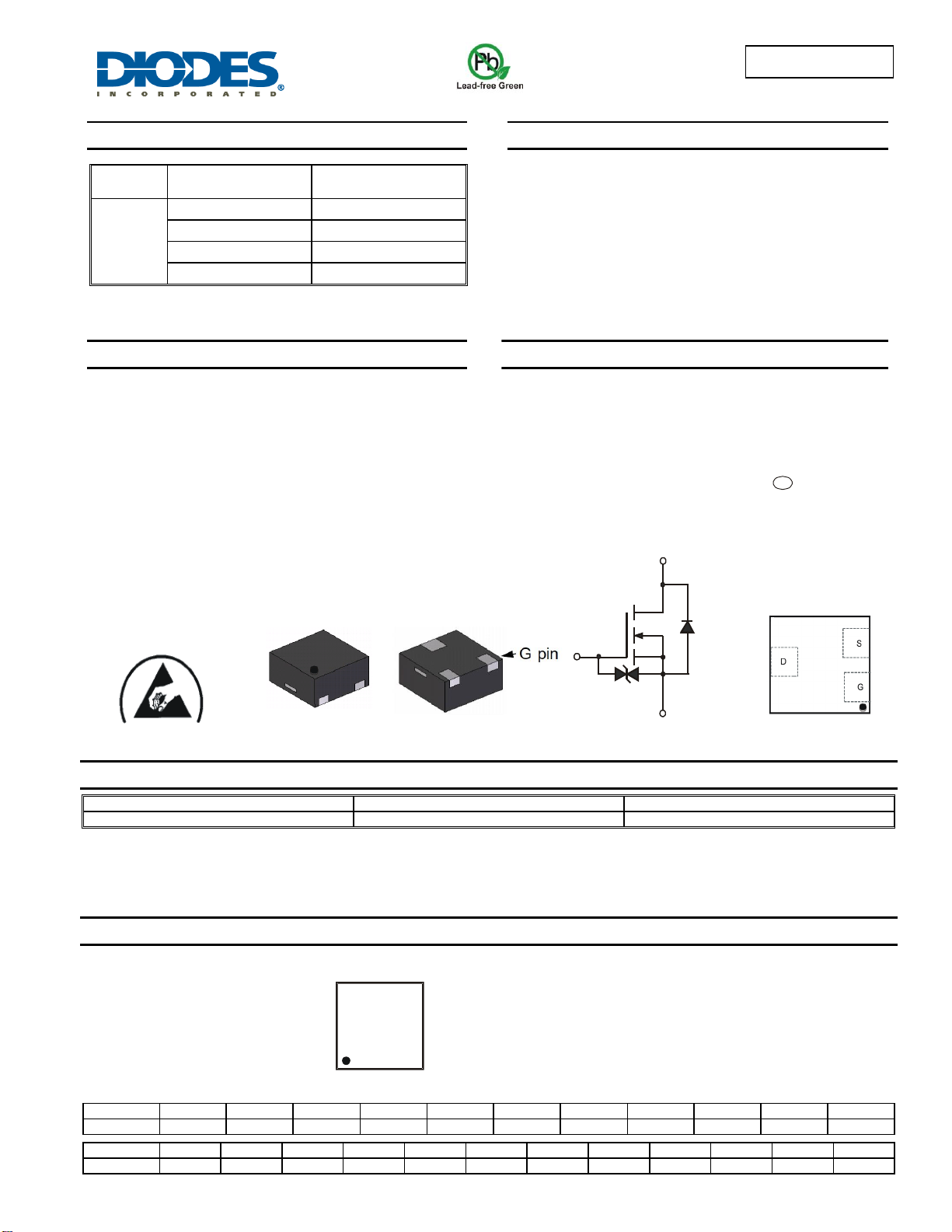

DMN2400UFD
Document number: DS35475 Rev. 5 - 2
1 of 6
www.diodes.com
February 2015
© Diodes Incorporated
DMN2400UFD
NEW PROD UCT
Source
Body
Diode
Gate
Protection
Diode
Gate
Drain
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
20V
0.6Ω @ V
GS
= 4.5V
0.9A
0.8Ω @ V
GS
= 2.5V
0.7A
1.0Ω @ V
GS
= 1.8V
0.5A
1.6Ω @ V
GS
= 1.5V
0.3A
Features and Benefits
Low On-Resistance
Very low Gate Threshold Voltage, 1.0V Max
Low Input Capacitance
Fast Switching Speed
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Power Management Functions
Battery Operated Systems and Solid-State Relays
Load Switch
Mechanical Data
Case: X1-DFN1212-3
Case Material: Molded Plastic; UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.005 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMN2400UFD-7
X1-DFN1212-3
3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
X1-DFN1212-3
Date Code Key
Year
2011
2012
…
2015
2016
2017
2018
2019
2020
2021
2022
Code
Y
Z
…
C
D
E
F
G
H
I
J
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
Bottom View
Equivalent Circuit
Pin-out Top view
ESD PROTECTED
K24 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
YM
K24
e4
