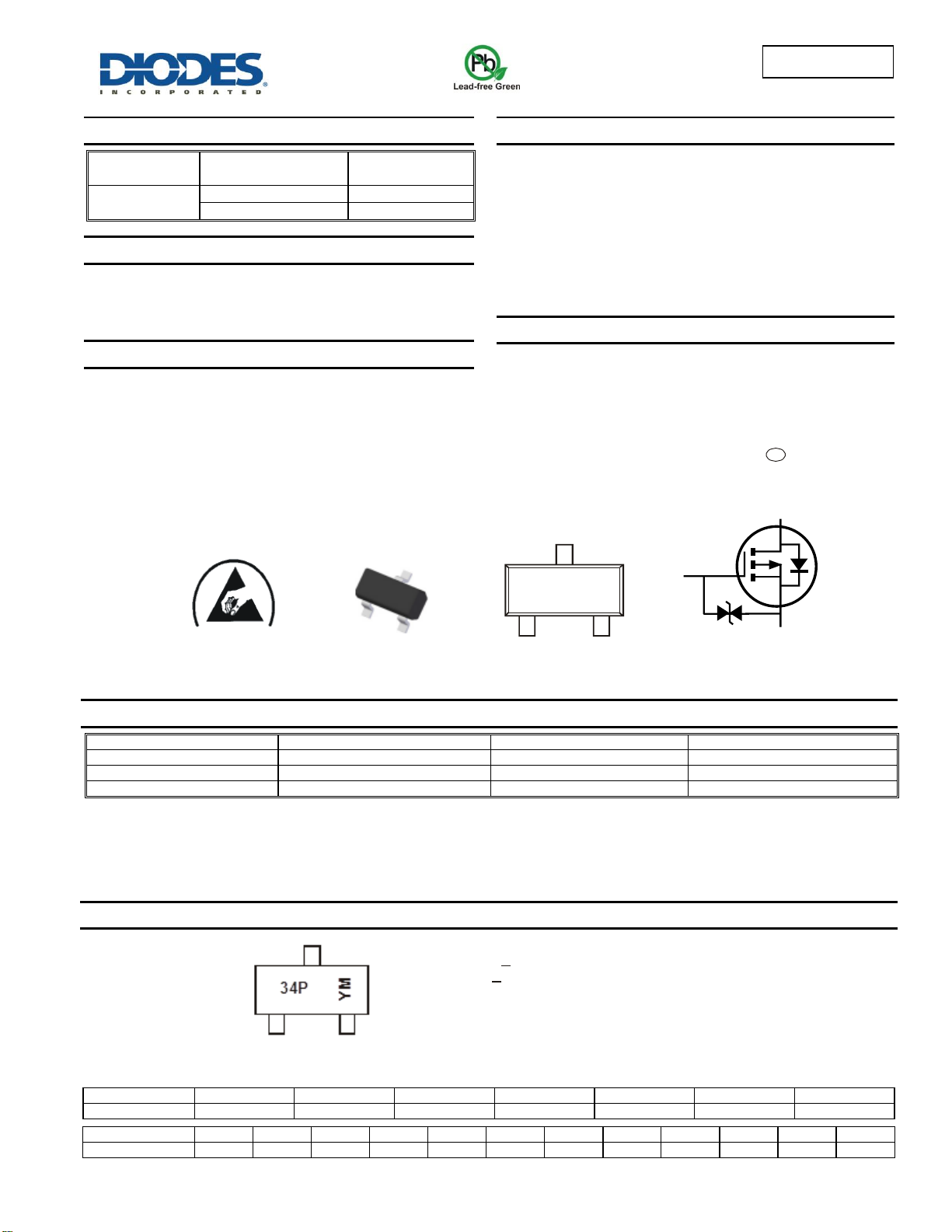

DMG3415U
Document number: DS31735 Rev. 12 - 2
1 of 6
www.diodes.com
January 2015
© Diodes Incorporated
DMG3415U
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= +25°C
-20V
42.5mΩ @ V
GS
= -4.5V
-4.0A
71mΩ @ V
GS
= -1.8V
-2.0A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Features
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected Up To 3kV
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish ⎯ Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Terminals Connections: See Diagram Below
Weight: 0.008 grams (Approximate)
Ordering Information (Note 4)
Part Number
Compliance
Case
Packaging
DMG3415U-7
Standard
SOT23
3,000/Tape & Reel
DMG3415UQ-7
Automotive
SOT23
3,000/Tape & Reel
DMG3415U-13
Standard
SOT23
10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2009
2010
2011
2012
2013
2014
2015
Code
W
X
Y
Z
A
B
C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
Internal Schematic
Top View
Equivalent Circuit
D
G
S
ESD PROTECTED TO 3kV
SOT23
34P = Product Type Marking Code
YM or = Date Code Marking for
Y or = Year (ex: A = 2013)
M = Month (ex: 9 = September)
e3
Y
YM
D
S
G
Gate Protection
Diode
