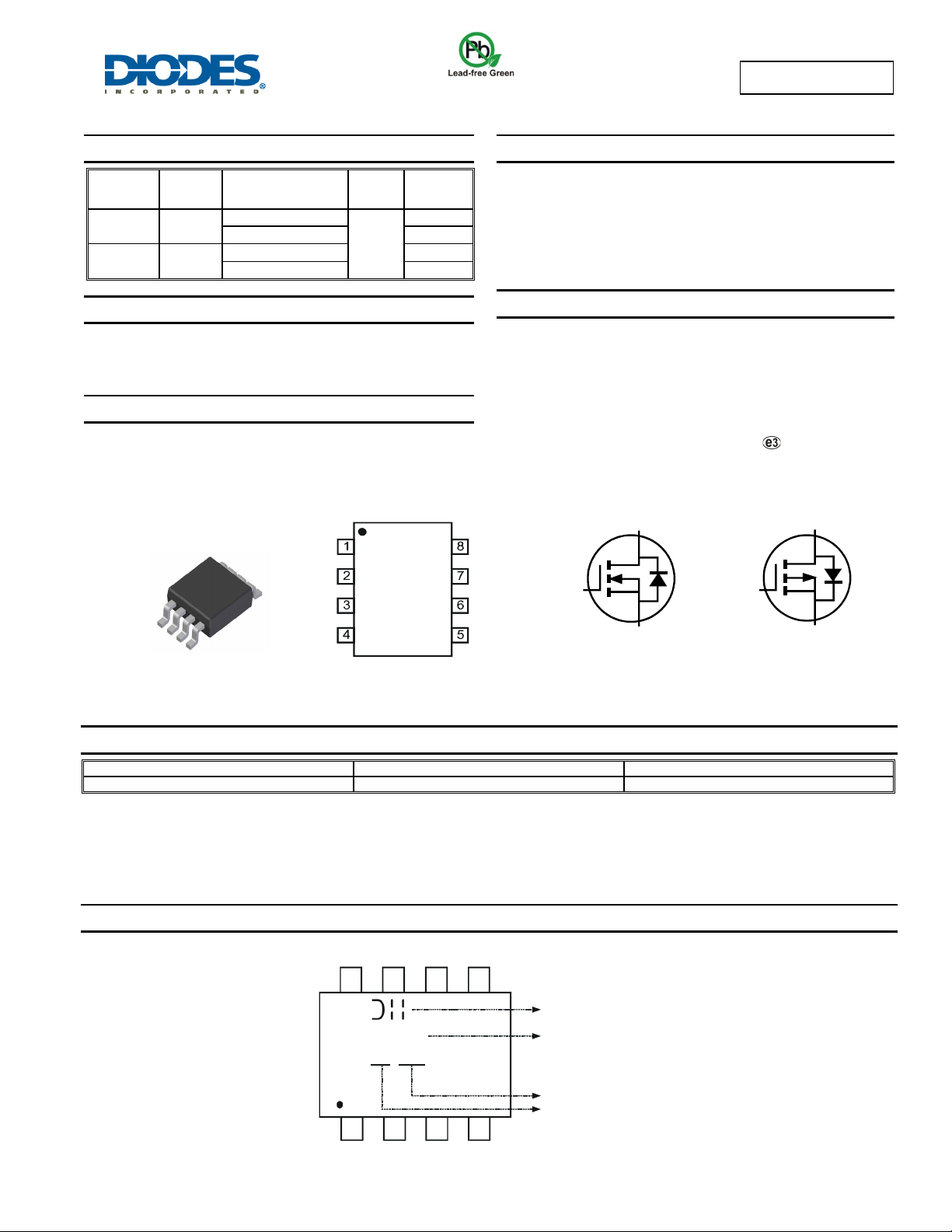

DMC3025LSD
Document number: DS35717 Rev. 7 - 2
1 of 10
www.diodes.com
February 2015
© Diodes Incorporated
DMC3025LSD
ADVANCED I NF O R M A T I O N
30V COMPLEMENTARY ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(ON) max
Package
I
D MAX
T
A
= +25°C
N-Channel
30V
20mΩ @ V
GS
= 10V
SO-8
8.5A
32mΩ @ V
GS
= 4.5V
7.0A
P-Channel
-30V
45mΩ @ V
GS
= -10V
-5.5A
85mΩ @ V
GS
= -4.5V
-4.1A
Description
This MOSFET is designed to minimize the on-
state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Applications
• DC Motor Control
• DC-AC Inverters
Features
• Low On-Resistance
• Low Input Capacitance
• Fast Switching Speed
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SO-8
• Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections Indicator: See Diagram
• Terminals: Finish Matte Tin Annealed Over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.008 grams (Approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMC3025LSD-13 SO-8 2,500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Pin Configuration
S2
D1
D2
G1
D2
D1
G2
S1
Top View
SO-8
Equivalent Circuit
Top View
Logo
Part no.
Year: “11” = 2011
1
4
8 5
C3025LD
YY WW
Xth week: 01 ~ 53
Q2 N-
CHANNEL MOSFET
Q1 P-CHANNEL MOSFET
D2
S2
G2
D1
S1
G1
