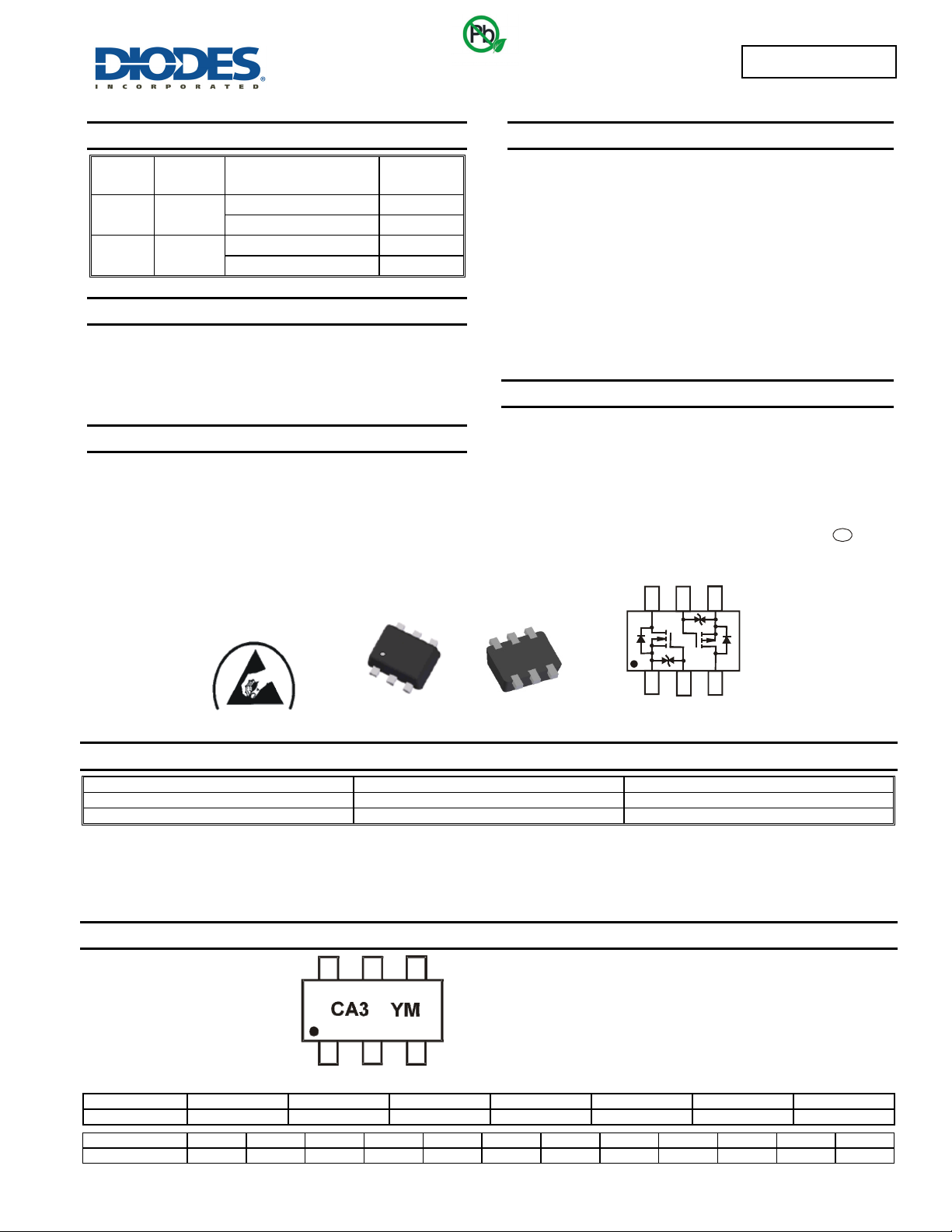

DMC2400UV
Document number: DS35537 Rev. 7 - 2
1 of 10
www.diodes.com
June 2013
© Diodes Incorporated
DMC2400UV
NEW PRODUCT
ADVANCE INFORMATION
S
2
D
2
Q
1
Q
2
D
1
S
1
G
2
G
1
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
Q1 20V
0.5 @ V
GS
= 4.5V
1030mA
0.9 @ V
GS
= 1.8V
740mA
Q2 -20V
1.0 @ V
GS
= -4.5V
-700mA
2.0 @ V
GS
= -1.8V
-460mA
Description
This new generation MOSFET has been designed to minimize the
on-state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
Power management functions
Battery Operated Systems and Solid-State Relays
Load switch
Features and Benefits
Low On-Resistance
Low Gate Threshold Voltage V
GS(th)
<1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Complementary Pair MOSFET
Ultra-Small Surface Mount Package
ESD Protected Gate to 2kV HBM
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT563
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.003 grams (approximate)
Ordering Information (Note 4)
Part Number Case Packaging
DMC2400UV-7 SOT563 3000/Tape & Reel
DMC2400UV-13 SOT563 10000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2011 2012 2013 2014 2015 2016 2017
Code Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
ESD PROTECTED TO 2kV
Top View Bottom View
Equivalent Circuit
CA3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
SOT563
Top View
e3
Green
