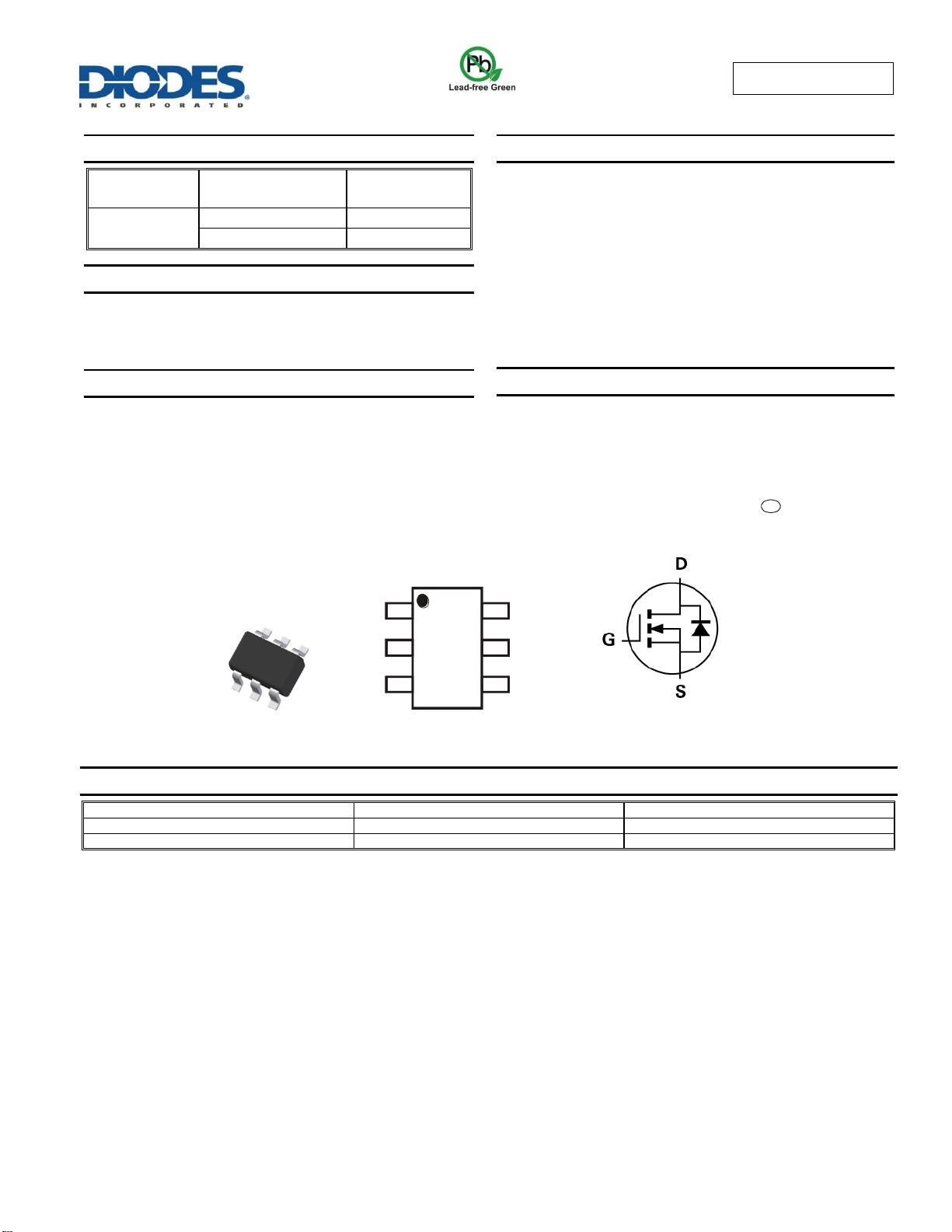

DMN3026LVTQ
Document number: DS38142 Rev. 1 - 2
1 of 8
www.diodes.com
August 2015
© Diodes Incorporated
DMN3026LVTQ
ADVANCE INFO R MA T I O N
ADVANCED I NF ORMATION
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
Max
I
D
T
A
= +25°C
30V
23mΩ @ V
GS
= 10V
6.6A
30mΩ @ V
GS
= 4.5V
5.8A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
), yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Applications
DC-DC Converters
Power management functions
Backlighting
Features and Benefits
Low Input Capacitance
Low On-Resistance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: TSOT26
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.013 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
DMN3026LVTQ-7
TSOT26
3,000/Tape & Reel
DMN3026LVTQ-13
TSOT26
10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
TSOT26
Top View
Top View
Pin Configuration
D
D
G
D
D
S
1
2
3
6
5
4
Equivalent Circuit
