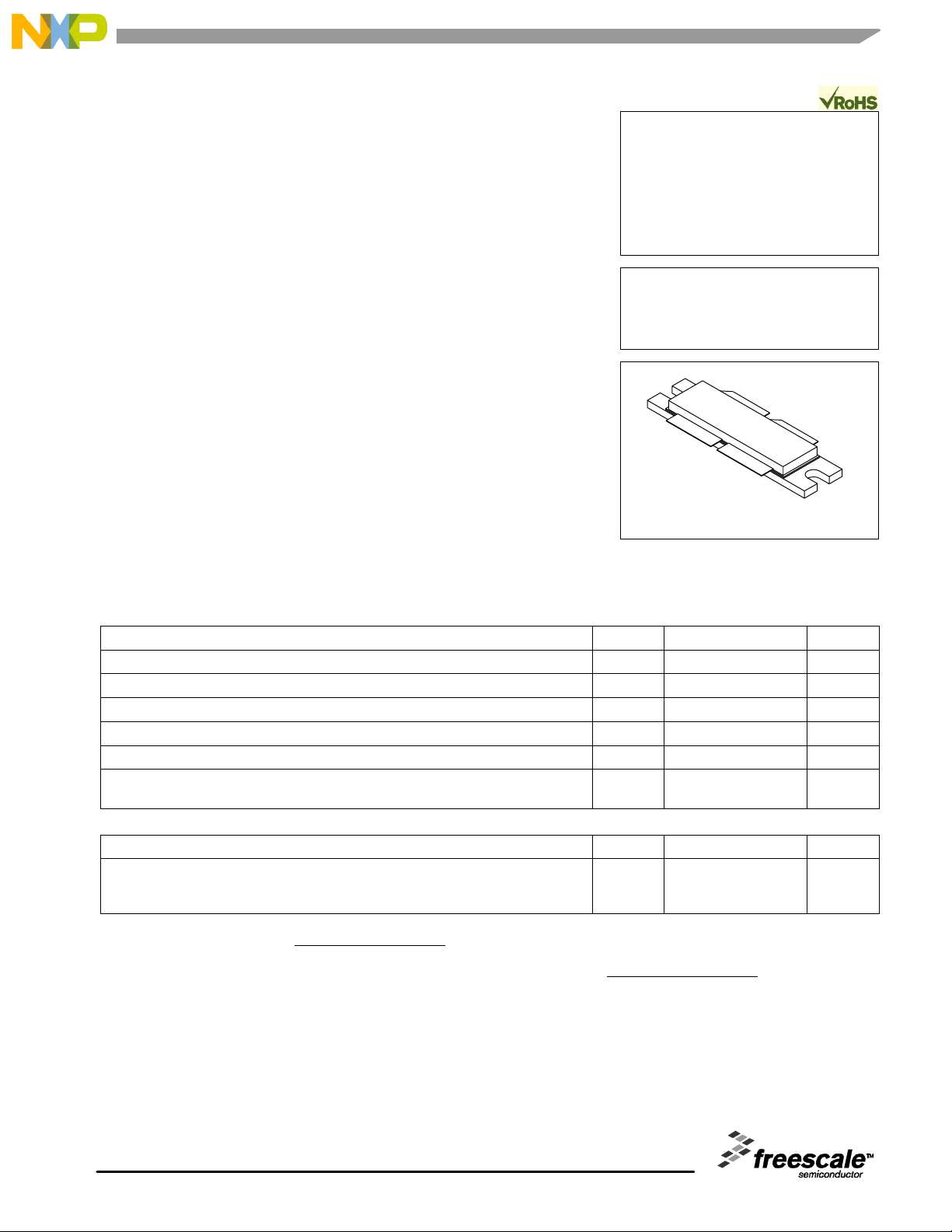

MRF6P23190HR6
1
RF Device Data
Freescale Semiconductor
RF Power Field Effect Transistor
N-Channel Enhancement - Mode Lateral MOSFET
Designed for CDMA base station applications with frequencies from 2300 to
2400 MHz. Suitable for WiMAX, WiBro and multicarrier amplifier applications.
To be used in Class AB and Class C for WLL applications.
• Typical 2 -Carrier W-CDMA Performance: V
DD
= 28 Volts, I
DQ
= 1900 mA,
P
out
= 40 Watts Avg., f = 2390 MHz, Channel Bandwidth = 3.84 MHz,
PAR = 8.5 dB @ 0.01% Probability on CCDF.
Power Gain — 14 dB
Drain Efficiency — 23.5%
IM3 @ 10 MHz Offset — -37.5 dBc in 3.84 MHz Channel Bandwidth
ACPR @ 5 MHz Offset — -41 dBc in 3.84 MHz Channel Bandwidth
• Capable of Handling 10:1 VSWR, @ 28 Vdc, 2340 MHz, 190 Watts CW
Output Power
Features
• Characterized with Series Equivalent Large-Signal Impedance Parameters
• Internally Matched for Ease of Use
• Qualified Up to a Maximum of 32 V
DD
Operation
• Integrated ESD Protection
• Designed for Lower Memory Effects and Wide Instantaneous Bandwidth
Applications
• RoHS Compliant
• In Tape and Reel. R6 Suffix = 150 Units per 56 mm, 13 inch Reel.
Table 1. Maximum Ratings
Rating Symbol Value Unit
Drain-Source Voltage V
DSS
-0.5, +68 Vdc
Gate-Source Voltage V
GS
-0.5, +12 Vdc
Storage Temperature Range T
stg
- 65 to +150 °C
Case Operating Temperature T
C
150 °C
Operating Junction Temperature
(1,2)
T
J
225 °C
CW Operation @ T
C
= 25°C
Derate above 25°C
CW 250
1.3
W
W/°C
Table 2. Thermal Characteristics
Characteristic Symbol Value
(2,3)
Unit
Thermal Resistance, Junction to Case
Case Temperature 100°C, 160 W CW
Case Temperature 83°C, 40 W CW
R
θ
JC
0.22
0.24
°C/W
1. Continuous use at maximum temperature will affect MTTF.
2. MTTF calculator available at http://www.freescale.com/rf. Select Software & Tools/Development Tools/Calculators to access MTTF
calculators by product.
3. Refer to AN1955, Thermal Measurement Methodology of RF Power Amplifiers. Go to http://www.freescale.com/rf.
Select Documentation/Application Notes - AN1955.
Document Number: MRF6P23190H
Rev. 3, 12/2008
Freescale Semiconductor
Technical Data
MRF6P23190HR6
2300 -2400 MHz, 40 W AVG., 28 V
2 x W- CDMA
LATERAL N -CHANNEL
RF POWER MOSFET
CASE 375D- 05, STYLE 1
NI-1230
Freescale Semiconductor, Inc., 2005-2008. All rights reserved.
