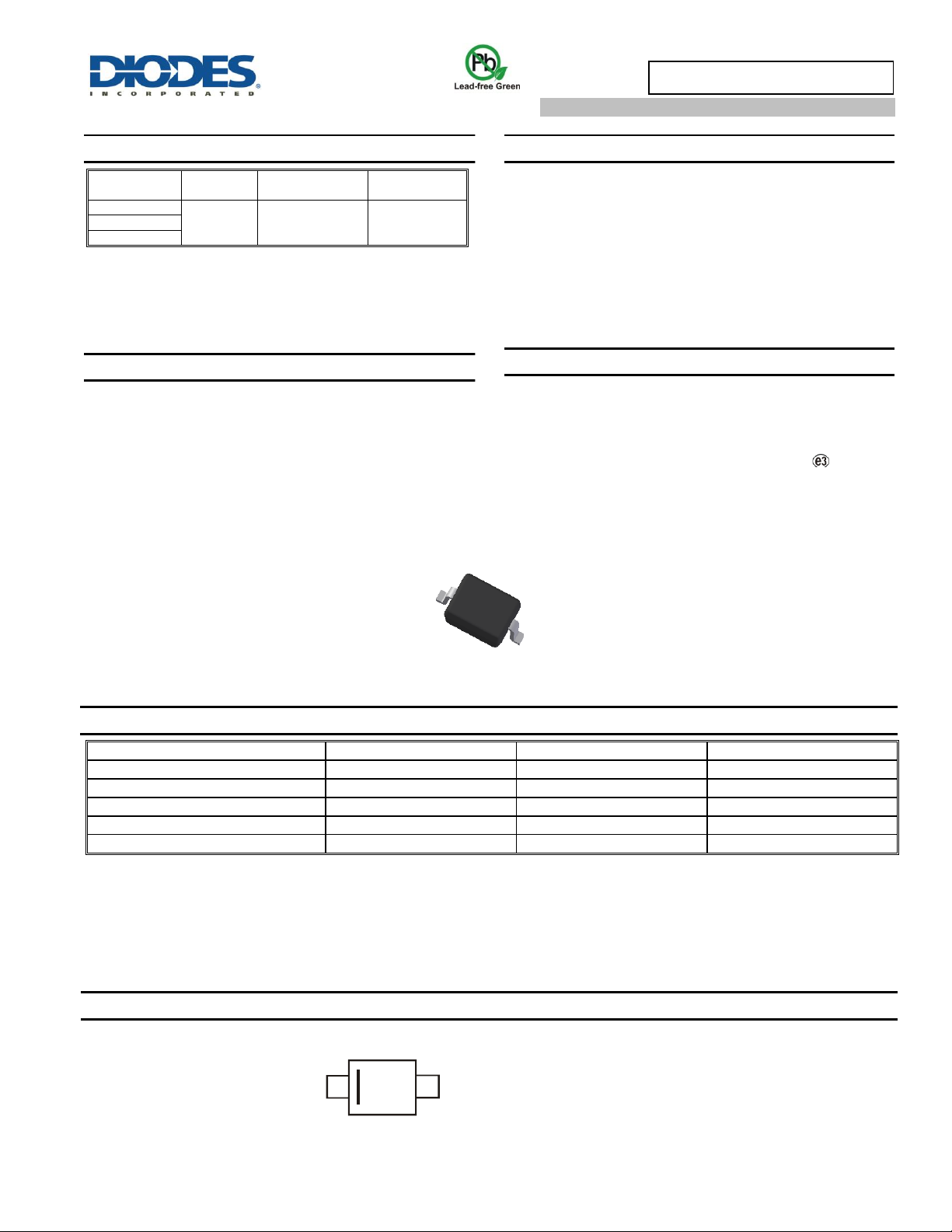

SD103AWS - SD103CWS
Document number: DS30101 Rev. 19 - 2
1 of 4
www.diodes.com
January 2017
© Diodes Incorporated
SD103AWS - SD103CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
V
R
(V)
I
FM
(mA)
V
F MAX
(V)
@ 20mA, +25°C
I
R MAX
(µA)
@ V
R
, +25°C
20
350
0.37
5.0
30
40
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as a:
Polarity Protection Diode
Re-circulating Diode
Switching Diode
Features and Benefits
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Low Reverse Capacitance
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD323
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Leads: Solderable per MIL-STD-202, Method 208
Lead-free Plating (Matte Tin Finish Annealed over
Alloy 42 Leadframe).
Polarity: Cathode Band
Weight: 0.004 grams (Approximate)
Ordering Information (Note 5)
Part Number
Compliance
Case
Packaging
SD103AWS-7-F
AEC-Q101
SOD-323
3,000/Tape & Reel
SD103AWSQ-7-F
Automotive
SOD-323
3,000/Tape & Reel
SD103BWS-7-F
AEC-Q101
SOD-323
3,000/Tape & Reel
SD103CWS-7-F
AEC-Q101
SOD-323
3,000/Tape & Reel
SD103BWSQ-7-F
Automotive
SOD-323
3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Top View
xx = Product Type Marking Code
S4 = SD103AWS
S5 or S4 = SD103BWS
S6 or S5 or S4 = SD103CWS
XX
