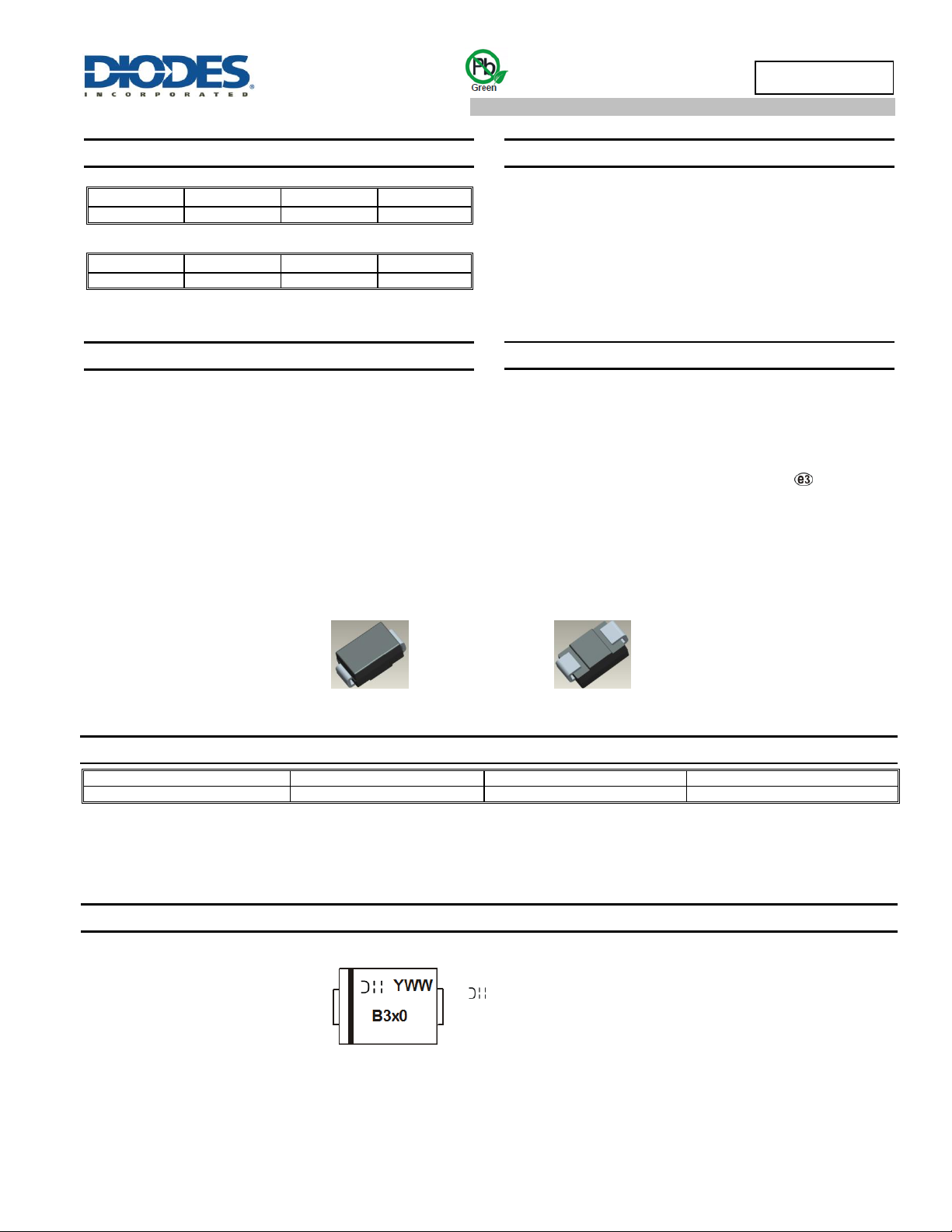

B320 - B360
Document number: DS30923 Rev. 11 - 2
1 of 5
www.diodes.com
January 2016
© Diodes Incorporated
B320 - B360
3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B320/B330/B340
V
RRM
(V)
I
O
(A)
V
F
max (V)
I
R max
(mA)
20/30/40
3.0
0.5
0.5
B350/B360
V
RRM
(V)
I
O
(A)
V
F
max (V)
I
R max
(mA)
50/60
3.0
0.7
0.5
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited
for use as:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 125A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SMC
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.21 grams (Approximate)
SMC
Ordering Information (Notes 4 & 5)
Part Number
Compliance
Case
Packaging
B3x0-13-F
Commercial
SMC
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information (Note 5)
Note: 5. Device has a cathode band (as shown above) and may also have a cathode notch.
Top View
Bottom View
B3x0 = Product Type Marking Code, ex: B320
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 15 for 2015)
WW = Week Code (01 to 53)
