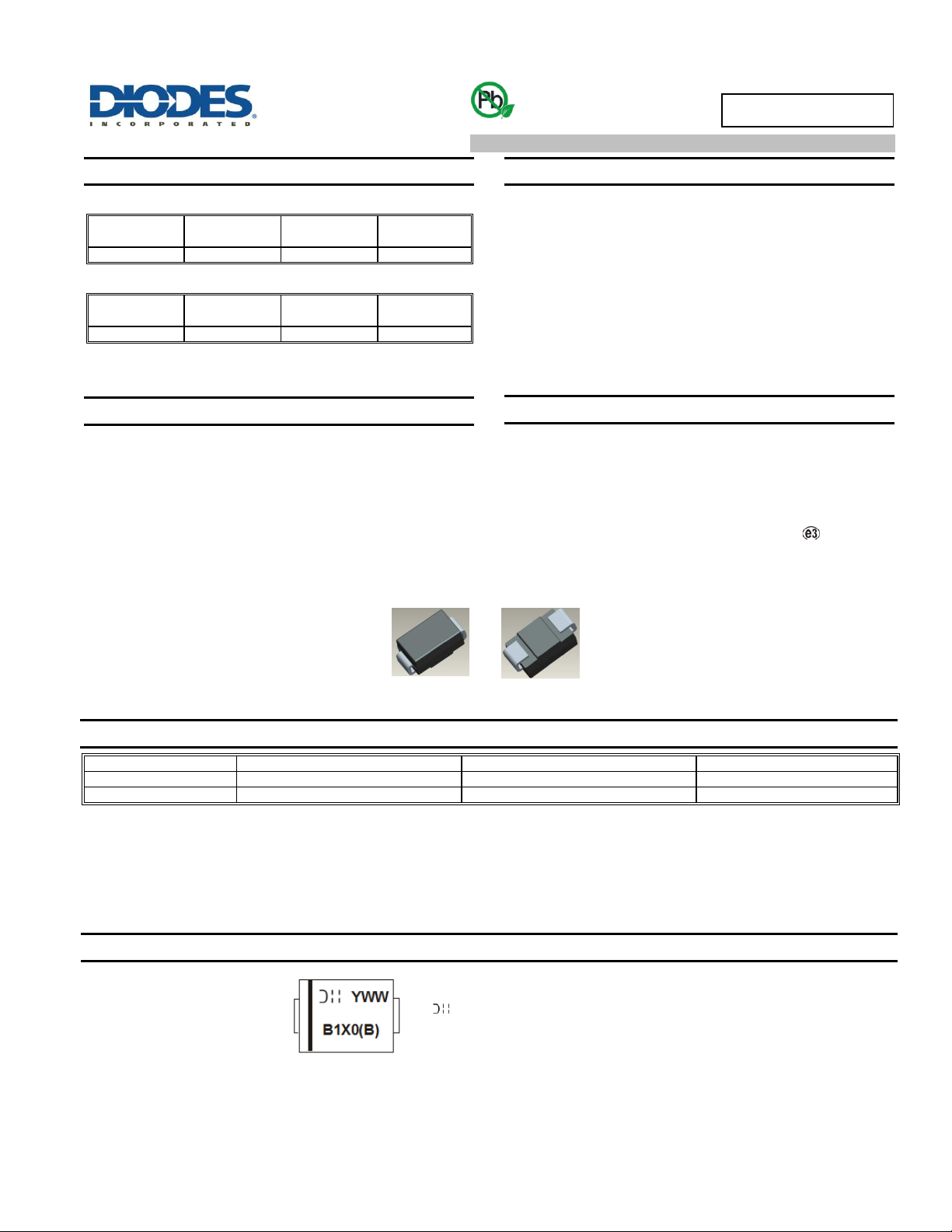

B120/B - B160/B
Document number: DS13002 Rev. 19 - 2
1 of 5
www.diodes.com
October 2016
© Diodes Incorporated
B120/B - B160/B
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B120/B, B130/B, B140/B
V
RRM
(V)
I
O
(A)
V
F
max (V) T
A
=
+25°C
I
R max
(mA) T
A
= +25°C
20/30/40
1.0
0.5
0.5
B150/B, B160/B
V
RRM
(V)
I
O
(A)
V
F
max (V) T
A
=
+25°C
I
R max
(mA) T
A
= +25°C
50/60
1.0
0.7
0.5
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use
as:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 30A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Mechanical Data
Case: SMA/SMB
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMA 0.064 grams (Approximate)
SMB 0.093 grams (Approximate)
Ordering Information (Note 4)
Part Number
Qualification
Case
Packaging
B1XX-13-F
Commercial
SMA
5,000/Tape & Reel
B1XXB-13-F
Commercial
SMB
3,000/Tape & Reel
*xx = Device Type, e.g. B120-13-F (SMA Package); B120B-13-F (SMB Package).
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
Bottom View
Green
B1X0 = Product Type Marking Code, ex: B120 (SMA package)
B1X0B = Product Type Marking Code, ex: B160B (SMB package)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 15 for 2015)
WW = Week Code (01 to 53)
