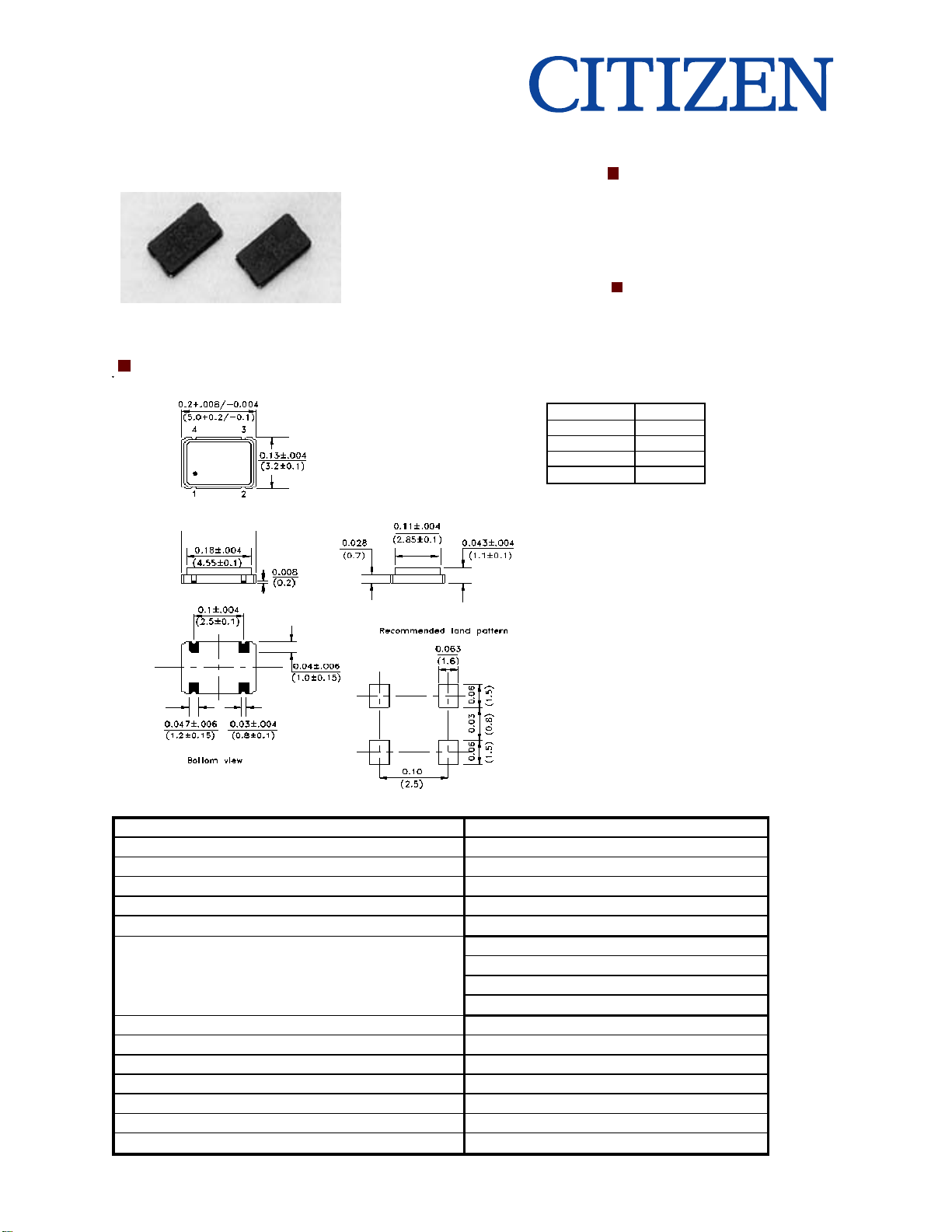

CRYSTAL CLOCK OSCILLATOR
(CERAMIC SURFACE MOUNT TYPE
)
（1,000 piece reel)
CSX532FBC FEATURES:
- Miniature Ceramic MHz Oscillator
- Low Power Consumption
- Reflowable Lead-Free product
APPLICATIONS:
- Low Profile Equipment
- Battery Operated Device
s
S
p
ecifications
Frequency Range 1MHz - 133.33MHz
Frequency Stability +/-100ppm (+/-50ppm available)
Operating temperature -40C to +85C
Storage temperature -50C to+125C
Supply Voltage (Vdd) VDD 3.3V+/-10%
Supply Current (Idd) 12mA max for F <33Mhz
25mA max for F <50Mh
z
35mA max for F <70Mhz
60mA max for F <133.33Mhz
Duty Cycle 40 / 60% max
Rise and Fall Times 6nS max
Output Load 5TTL or 15pF for F<70Mhz
Output Voltage VOH = 0.9Vdd min
Output Voltage VOL = 0.1Vdd max
Start-up Time 10 mS max
Aging (First year) +/-5 ppm @ 25C
DIMENTIONS:
(
Unit=mm
)
PIN
FUNCTION
1
Tri State
2
GND
3
Output
4
VDD
