ZXTP718MA
Document Number DS31939 Rev. 5 - 2
1 of 7
www.diodes.com
January 2011
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
ZXTP718MA
20V PNP LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO
> -20V
• I
C
= -3.5A Continuous Collector Current
• Low Saturation Voltage (-220mV max @ -1A)
• R
SAT
= 64 mΩ for a low equivalent On-Resistance
• h
FE
specified up to -6A for high current gain hold up
• Low profile 0.6mm high package for thin applications
• R
θ
JA
efficient, 60% lower than SOT23
• 4mm
2
footprint, 50% smaller than SOT23
• Lead-Free, RoHS Compliant (Note 1)
• Halogen and Antimony Free. "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: DFN2020B-3
• Case Material: Molded Plastic. “Green” Molding Compound.
• Terminals: Pre-Plated NiPdAu leadframe.
• Nominal Package Height: 0.6mm
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Weight: 0.01 grams (approximate)
Applications
• MOSFET Gate Driving
• DC-DC Converters
• Charging Circuits
• Power switches
• Motor control
Ordering Information (Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXTP718MATA S2 7 8 3000
ZXTP718MATC S2 13 8 10000
Notes: 1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.

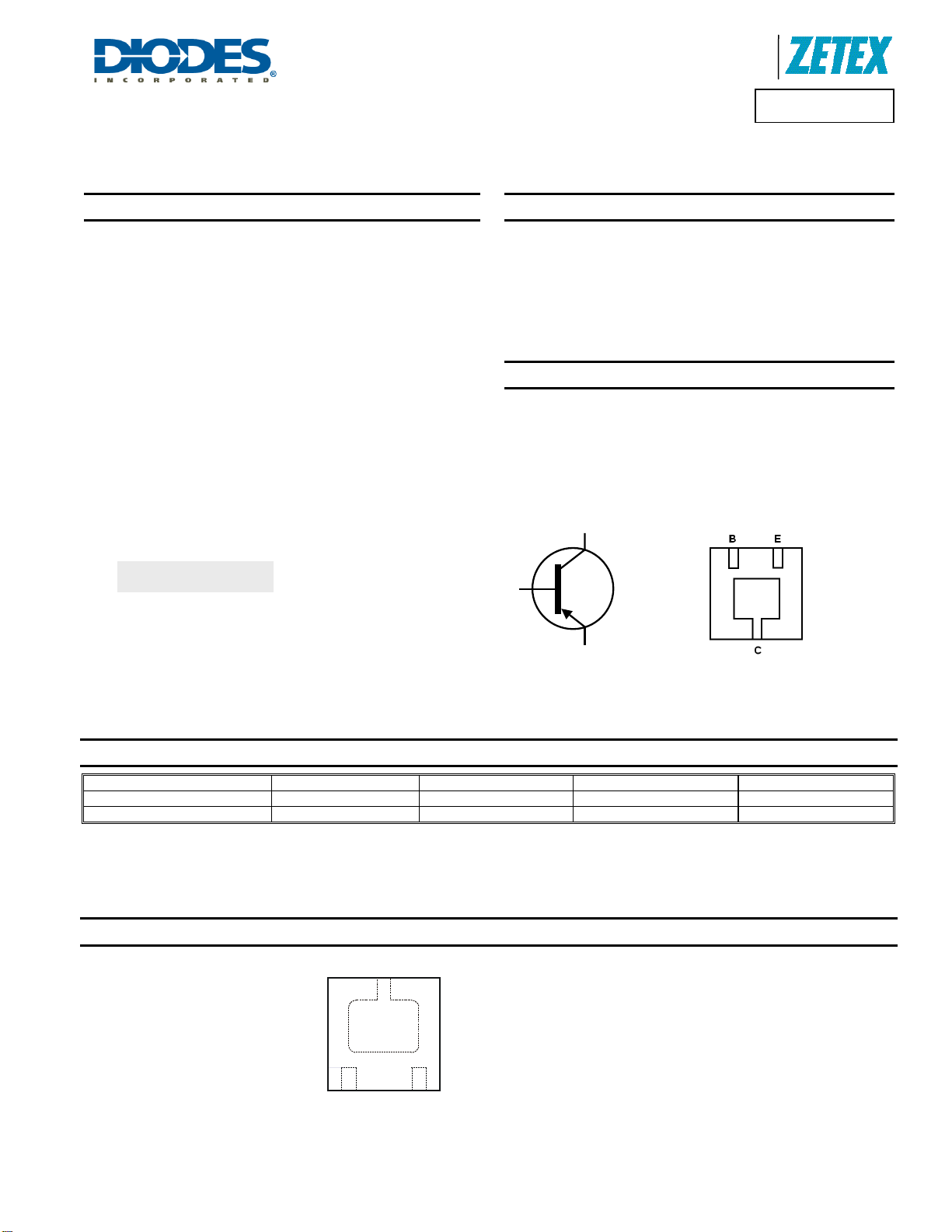

Marking Information
To
p
View
DFN2020B-3
Device Symbol
Bottom View
Pin-Out
Bottom View
C
E
B
S2 = Product Type Marking code
Top View
S2
