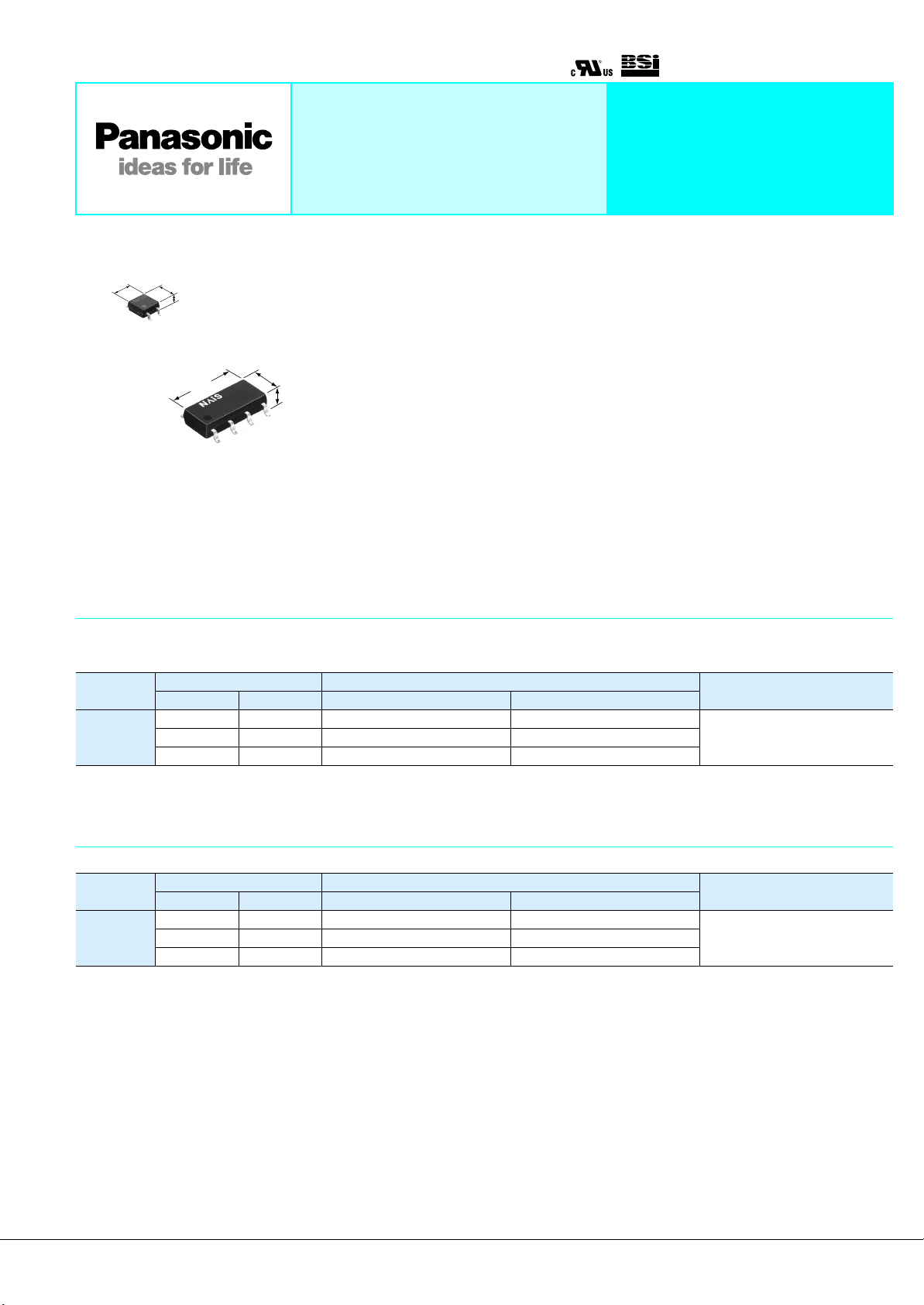

PhotoMOS
RELAYS
PhotoMOS Relays
ASCT1B257E ’03.3
New
GU (General Use) Type
[1, 2-Channel (Form A)
4, 8-Pin Type]
mm inch
4.4
.173
2.1
.083
4.3
.169
9.37
.369
4.4
.173
2.1
.083
FEATURES
1. Low cost type.
2. High sensitivity, Low ON resistance
Can control a maximum 0.5A (AQY282S,
AQW282S) load current with a 5mA input
current.
Low ON resistance of 2.5
Ω
(AQY282S,
AQW282S).
Stable operation because there are no
metallic contact parts.
3. Various package design (DIP4,
SOP4, DIP8, SOP8 packages are
available)
4. Low-level off state leakage current
The SSR has an off state leakage current
of several milliamperes, where as the
PhotoMOS relay has only 100pA even
with the rated load voltage of 350V
(AQY280S, AQW280S).
TYPICAL APPLICATIONS
• Modem
• Telephone equipment
• Security equipment
• Sensors
• Amusement
SOP TYPE
SOP 4pin
*Indicate the peak AC and DC values.
Notes:(1) Tape package is the standard packing style. Also available in tube. (Part No. suffix “X” or “Z” is not needed when ordering; Tube: 100 pcs.;
Case: 2,000 pcs.)
(2) For space reasons, the initial letters of the product number “AQY” and “S”, the package type indicator “X” and “Z” are omitted from the seal.
Type
Output rating* Part No.
Packing quantity in tape and reel
Load voltage Load current Picked from the 1/2-pin side Picked from the 3/4-pin side
AC/DC type
60 V 500 mA AQY282SX AQY282SZ
1,000 pcs.350 V 120 mA AQY280SX AQY280SZ
400 V 100 mA AQY284SX AQY284SZ
SOP 8pin
* Indicate the peak AC and DC values.
Notes:(1) Tape package is the standard style. Also available in tube. (Part No. suffix “X” or “Z” is not needed when ordering; Tube: 50 pcs.; Case: 1,000
pcs.)
(2) For space reasons, the package type indicator “X” and “Z” are omitted from the seal.
Type
Output rating* Part No.
Packing quantity in tape and reel
Load voltage Load current Picked from the 1/2/3/4-pin side Picked from the 5/6/7/8-pin side
AC/DC type
60 V 350 mA AQW282SX AQW282SZ
1,000 pcs.350 V 100 mA AQW280SX AQW280SZ
400 V 80 mA AQW284SX AQW284SZ
AQY280S
AQY284S
TESTING
pending
UL, C-UL
pending
BSi
AQY282S, AQW280S
AQW282S, AQW284S
