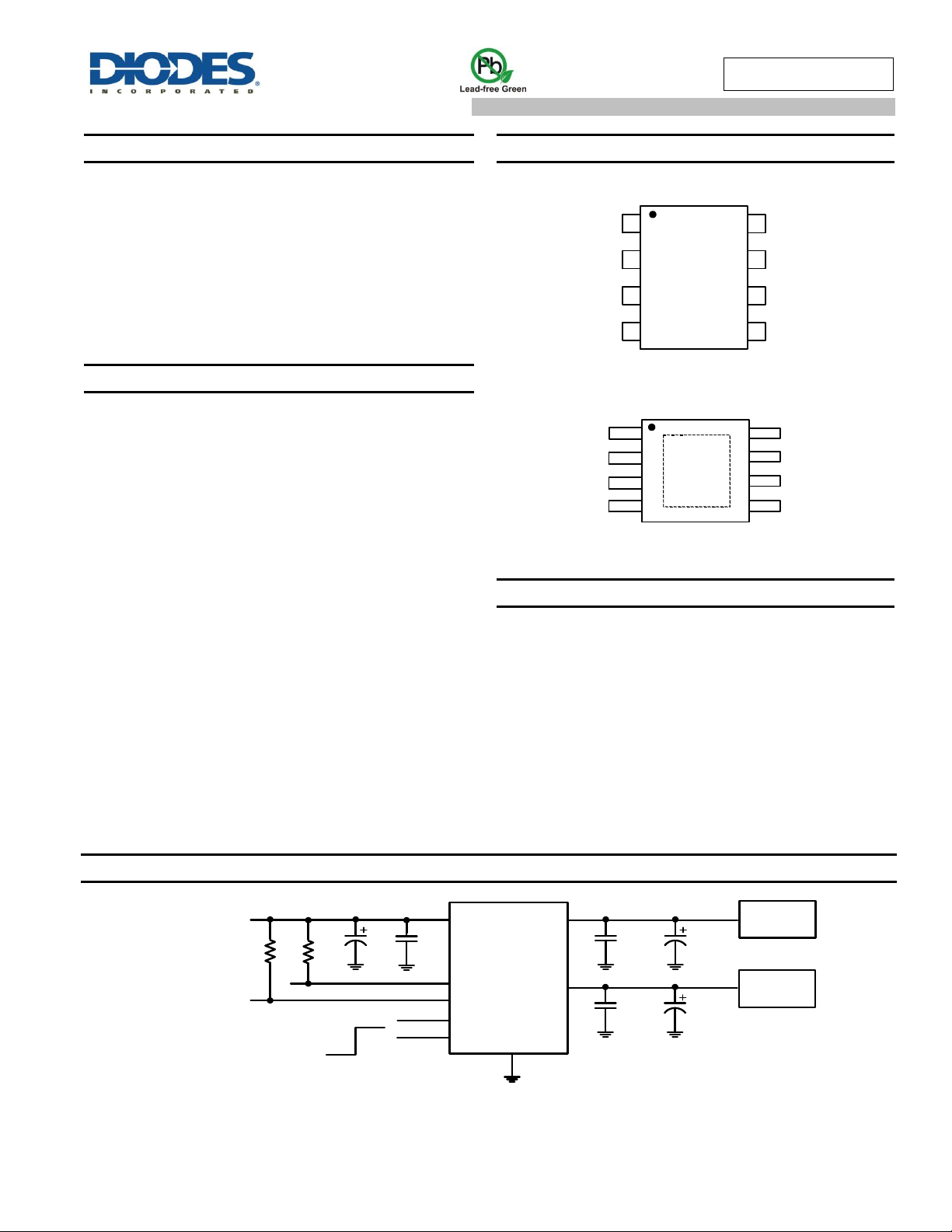

AP2166/ AP2176
Document number: DS31814 Rev. 4 - 2
1 of 17
www.diodes.com
May 2016
© Diodes Incorporated
AP2166/ AP2176
1A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2166 and AP2176 are integrated high-side power switches
optimized for Universal Serial Bus (USB) and other hot-swap
applications. The family of devices complies with USB 2.0 and
available with both polarities of Enable input. They offer current and
thermal limiting and short-circuit protection as well as controlled rise
time and under-voltage lockout functionality. A 7ms deglitch capability
on the open-drain Flag output prevents false overcurrent reporting
and does not require any external components.
All devices are available in SO-8 and MSOP-8EP packages.
Features
Dual USB port power switches
Overcurrent and thermal protection
1.5A accurate current limiting
Reverse Current Blocking
90mΩ on-resistance
Input voltage range: 2.7V - 5.5V
0.6ms typical rise time
Very low shutdown current: 1µA (max)
Fault report (FLG) with blanking time (7ms typ)
ESD protection: 6KV HBM, 300V MM
Active low (AP2166) or active high (AP2176) enable
Ambient temperature range -40°C to +85°C
SO-8 and MSOP-8EP (Exposed Pad): Available in “Green”
Molding Compound (No Br, Sb)
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Pin Assignments
SO-8
( Top View )
1
2
3
4
8
7
6
5
OUT1
IN
OUT2
GND
EN1
EN2
FLG2
FLG1
MSOP-8EP
1
2
3
4
8
7
6
5
OUT1
IN
OUT2
GND
EN1
EN2
FLG2
FLG1
( Top View )
Applications
Consumer Electronics – LCD TVs & Monitors, Game Machines
Communications – Set-Top-Boxes, GPS, Smartphones
Computing – Laptops, Desktops, Servers, Printers, Docking
Stations, HUBs
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
0.1uF
IN
GND
EN2
OUT1
ON
68uF
Power Supply
2.7V to 5.5V
0.1uF
OFF
FLG1
Load
10k
10k
FLG2
EN1
OUT2
68uF0.1uF
Load
10uF
