EVAL-AD5669REBZ
APPLICATION NOTE
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Preliminary Technical Document
Evaluation Board for AD5669, Octal, 16-Bit, Serial Voltage-Output DAC
Rev. PrA | Page 1 of 12
FEATURES
Full-featured evaluation board for the AD5669
On-board reference
Various link options
PC control in conjunction with Analog Devices
System development platform (SDP)
PC software for control of DACs
On-board ADC for voltage readback
PACKAGE CONTENTS
AD566x evaluation board
AD5669 device
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the AD5669 data sheet
Electronic version of AN-XXX
GENERAL DESCRIPTION
The Analog Devices, Inc., AD5669 evaluation board (EVAL-
AD5669REB1Z and AD5669REB2Z) is designed to help
customers quickly prototype new AD5669 circuits and reduce
design time. The AD5669 operates from a single 2.7 V to
5.5 V supply. The part incorporates an internal 1.25 V or 2.5 V
on-board reference to give an output voltage span of 2.5 V or
5 V, respectively. The on-board reference is off at power-up
al l o w i ng f o r t h e u s e o f a n e x t e r n al r e f e r e n c e -----the REF195 is
used on this evaluation board. The part must be written to after
power-up to turn on the internal reference.
Full data on the AD5669 may be found in the data sheet
available from Analog Devices and should be consulted in
conjunction with this data sheet when using the evaluation
board.
The evaluation board interfaces to the USB port of an IBM
compatible PC via the SDP board. Software is available with the
evaluation board which allows the user to easily program the
AD5669.
ADC
POWER SUPPLY INPUTS
USB CONNECTOR
SMB CONNECTORS
CONTROLLER
SDP BOARD
5V VOLTAGE
REFERENCE
EXT REF IN/
INT REF OUT
V
REF
V
OUT
A
V
OUT
B
V
OUT
H
AD5669
I/O
ADG728
8:1 MUX
05544-001

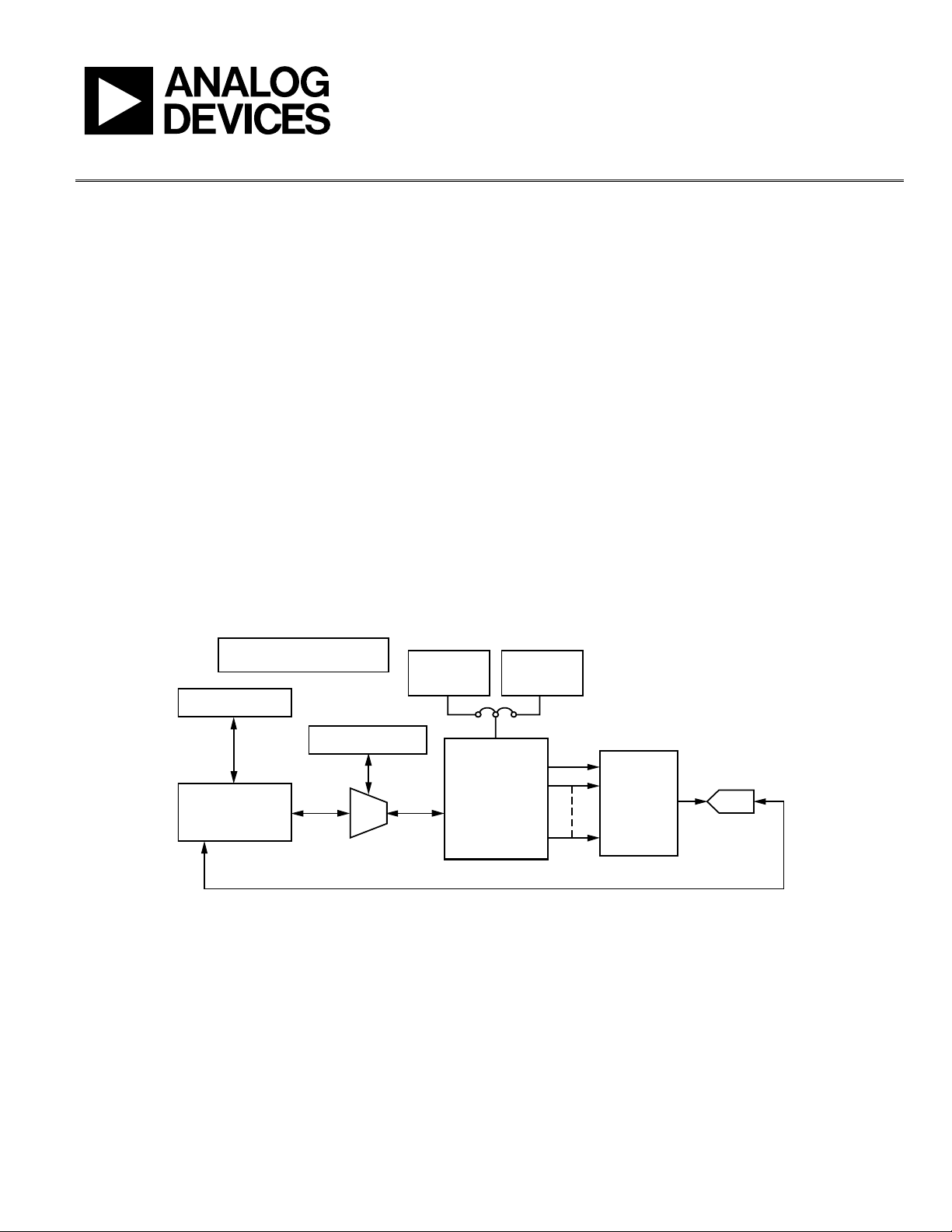

Figure 1. Universal Evaluation Board
