74LVC541A
OCTAL BUFFER/ LINE DRIVER WITH 3 STATE OUTPUTS
Description
The 74LVC541A is an octal buffer/driver is designed for driving bus
lines or buffer memory address registers. The 3-state control gate is a
2-input AND gate with active-low inputs so that, if either output enable
(OE1 or OE2) input is high, all eight outputs are in the high-impedance
state.
These devices feature inputs and outputs on opposite sides of the
package that facilitate printed circuit board layout. The device is
designed for operation with a power supply range of 1.65V to 3.6V.
The inputs are tolerant to 5.5V allowing this device to be used in a
mixed voltage environment. The device is fully specified for partial
power down applications using I
OFF
. The I
OFF
circuitry disables the
output preventing damaging current backflow when the device is
powered down.
Features
• Supply Voltage Range from 1.65V to 3.6V
• Sinks or Sources 24mA at V
CC
= 3V
• CMOS Low Power Consumption
• I
OFF
Supports Partial-Power Down Operation
• Inputs or Outputs Accept Up to 5.5V
• Inputs Can Be Driven by 3.3V or 5V Allowing for Mixed Voltage
Applications
• Schmitt Trigger Action at All Inputs
• Typical V
OLP
(Quiet Output Ground Bounce) less than 0.8V with
V
CC
= 3.3V and T
A
= +25°C
• Typical V
OHV
(Quiet Output Dynamic VOH) greater than 2.0V
with V
CC
= 3.3V and T
A
= +25°C
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 250mA per JESD 78, Class I
• All devices are:
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

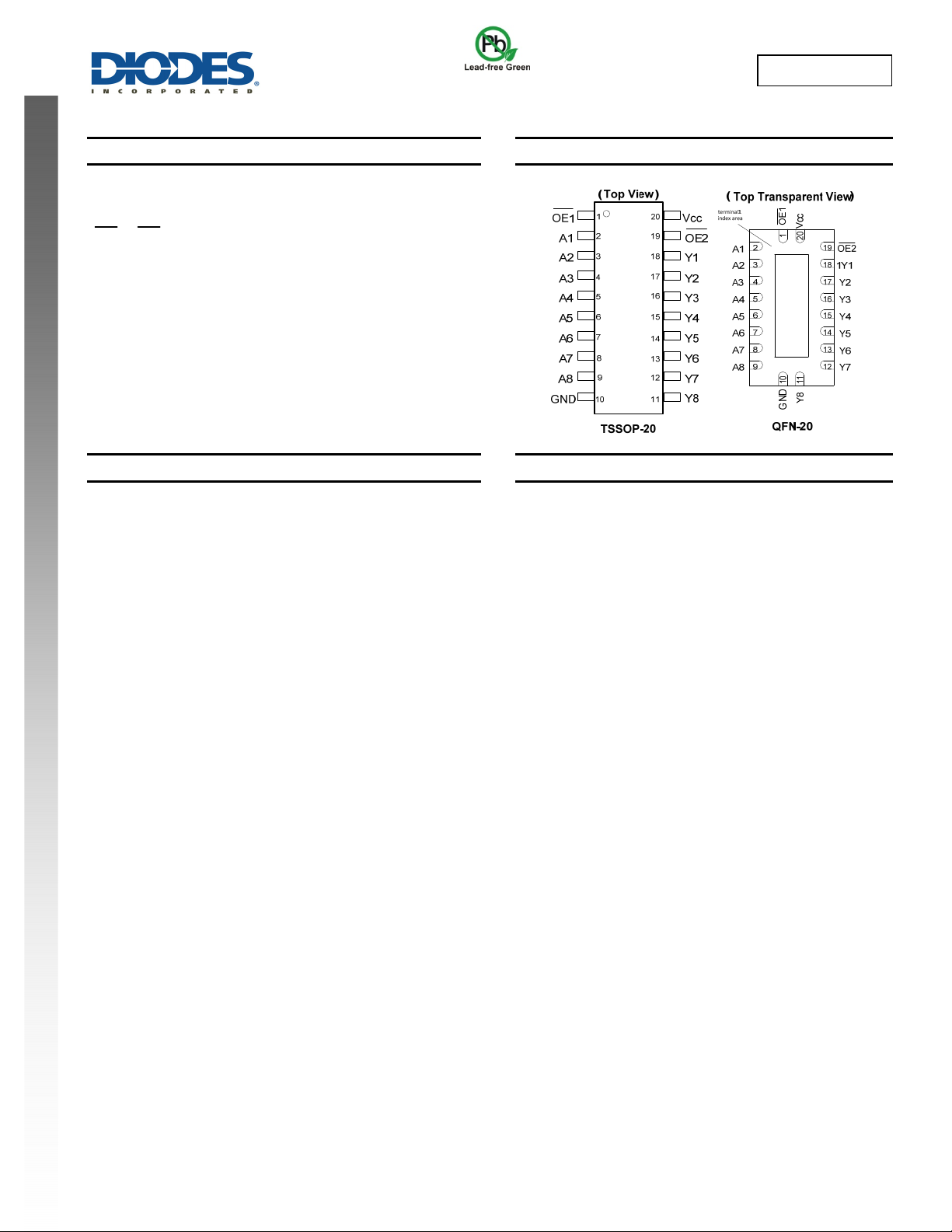

Pin Assignments
Applications
• General Purpose Logic
• Bus Driving
• Power Down Signal Isolation
• Wide array of products such as:
PCs, Notebooks, Netbooks, Ultrabooks
Networking Computer Peripherals, Hard Drives, CD/DVD
ROM
TV, DVD, DVR, set top box
