74LV08A
QUADRUPLE 2-INPUT AND GATES
Description
The 74LV08A provides provides four independent 2-input AND gates
with standard push-pull outputs. The device is designed for operation
with a power supply range of 2.0V to 5.5V.
The inputs are tolerant to 5.5V allowing this device to be used in a
mixed voltage environment. The device is fully specified for partial
power down applications using I
OFF
. The I
OFF
circuitry disables the
output preventing damaging current backflow when the device is
powered down.
The gates perform the Boolean function:
BAY •=
or B
A
Y +=
Features
• Wide Supply Voltage Range from 2.0V to 5.5V
• Sinks or Sources 12mA at V
CC
= 4.5V
• CMOS Low Power Consumption
• IOFF Supports Partial-Power Down Operation
• Inputs or Outputs accept up to 5.5V
• Inputs Can Be Driven by 3.3V or 5V Allowing for Voltage
Translation Applications
• Schmitt Trigger Action at All Inputs
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

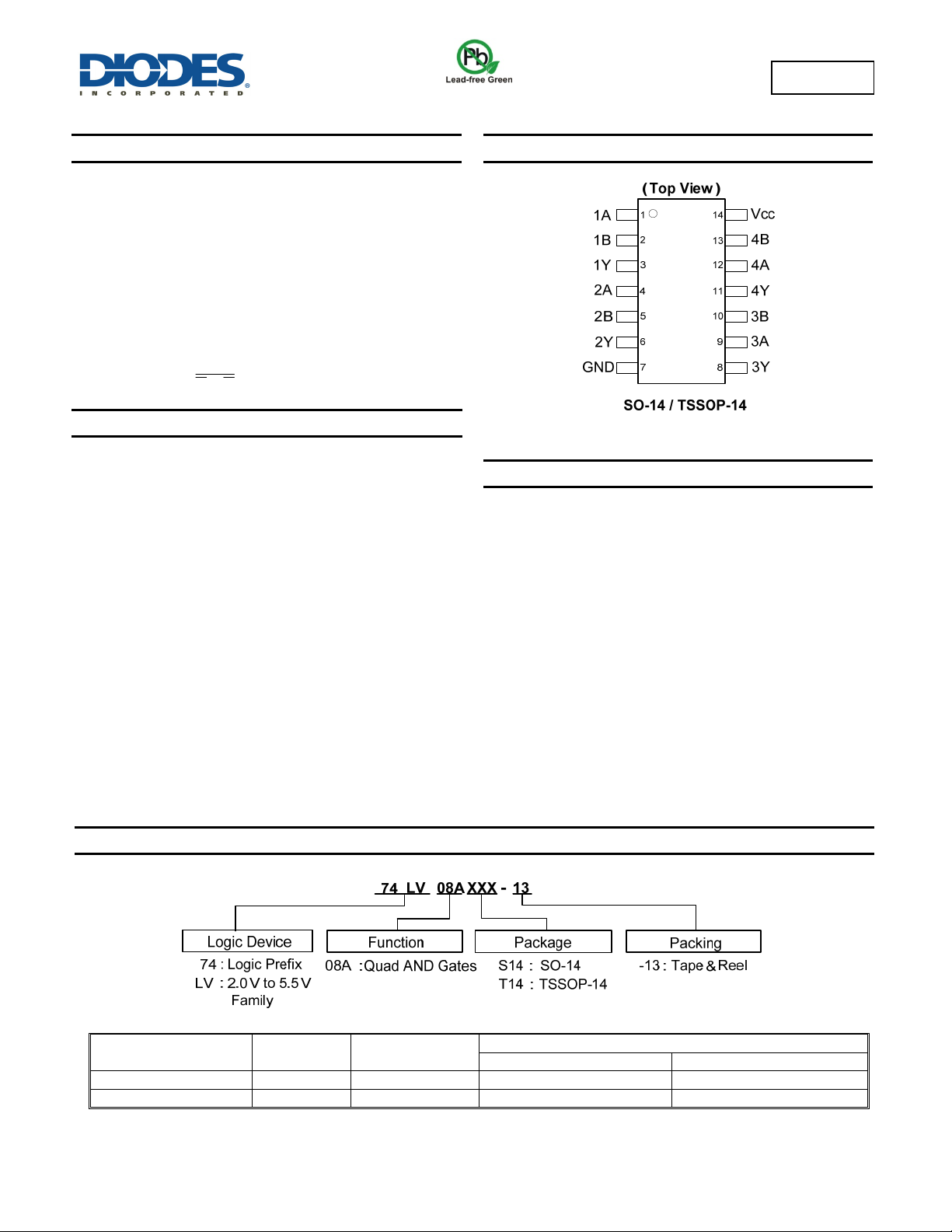

Pin Assignments
Applications
• General Purpose Logic
• Power Down Signal Isolation
• Wide Array of Products Such As:
PCs, networking, Notebooks, Ultrabooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, set top box
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
Ordering Information
Device Package Code
Packaging
(Note 4)
13” Tape and Reel
Quantity Part Number Suffix
74LV08AS14-13 S14 SO-14 2500/Tape & Reel -13
74LV08AT14-13 T14 TSSOP-14 2500/Tape & Reel -13
Note: 4. The taping orientation and tape details can be found at http://www.diodes.com/datasheets/ap02007.pdf
