74AUP2G86
Document number: DS36143 Rev. 1 - 2
1 of 9
www.diodes.com
January 2015
© Diodes Incorporated
NEW PRODUCT
74AUP2G86
DUAL EXCLUSIVE OR GATE
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
Description
The Advanced Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP2G86 is a dual two-input EXCLUSIVE OR gate. Both
gates have push-pull outputs designed for operation over a power
supply range of 0.8V to 3.6V. The device is fully specified for partial
power down applications using I
OFF
. The I
OFF
circuitry disables the
output preventing damaging current backflow when the device is
powered down. Each gate performs the positive Boolean function:
BAY ⊕= or BABAY +=
Features
• Advanced Ultra Low Power (AUP) CMOS
• Supply Voltage Range from 0.8V to 3.6V
• ±4mA Output Drive at 3.0V
• Low Static Power Consumption
I
CC
< 0.9µA
• Low Dynamic Power Consumption
C
PD
= 6 pF (Typical at 3.6V)
• Schmitt Trigger Action at all inputs makes the circuit tolerant
for slower input rise and fall time. The hysteresis is typically
250 mV at V
CC
= 3.0V
• I
OFF
Supports Partial-Power-Down Mode Operation
• ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Leadless Packages Named per JESD30E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

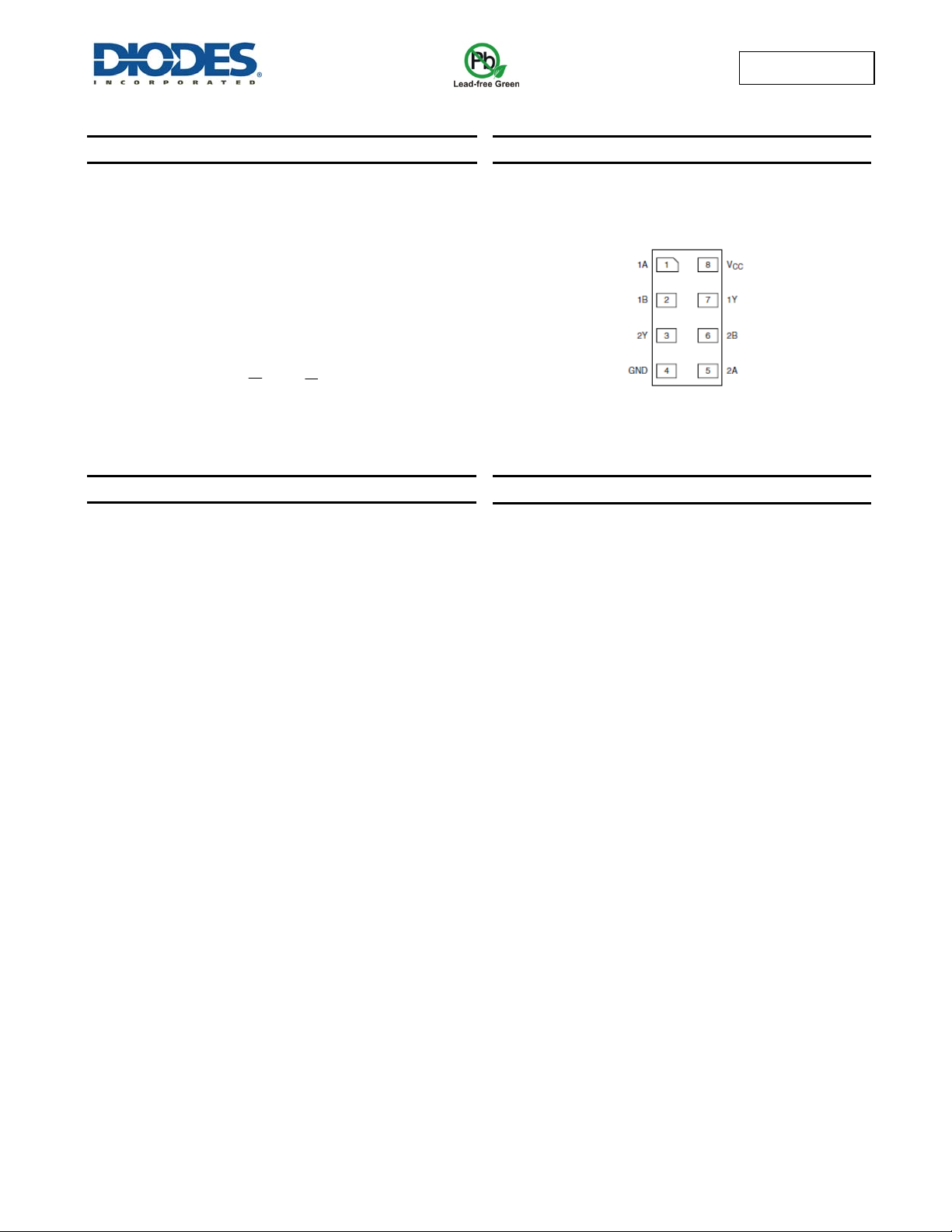

Pin Assignments
(Top View)
X2-DFN1210-8
Applications
• Suited for Battery and Low Power Needs
• Wide array of products such as:
Tablets, E-readers
Cell Phones, Personal Navigation/GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSD, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
