74AUP1G34
SINGLE BUFFER GATE
Description
The Advanced,
Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP1G34 is a single buffer gate with a standard push-
pull
output designed for operation over a power supply range of 0.8
V to
3.6V.
The device is fully specified for partial power down applications
using I
OFF
. The I
OFF
circuitry disables the output preventing dama
ging
current backflow when the device is powered down.
The gate performs the positive Boolean function:
AY =
Features
• Advanced Ultra Low Power (AUP) CMOS
• Supply Voltage Range from 0.8V to 3.6V
• ±4mA Output Drive at 3.0V
• Low Static Power Consumption
I
CC
< 0.9µA
• Low Dynamic Power Consumption
C
PD
= 6.3pF (Typical at 3.6V)
• Schmitt Trigger Action at all inputs makes the circuit t
olerant for
slower input rise and fall time.
The hysteresis is typically
250mV at V
CC
= 3.0V.
• I
OFF
Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114)
• Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Leadless Packages Named per JESD30E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

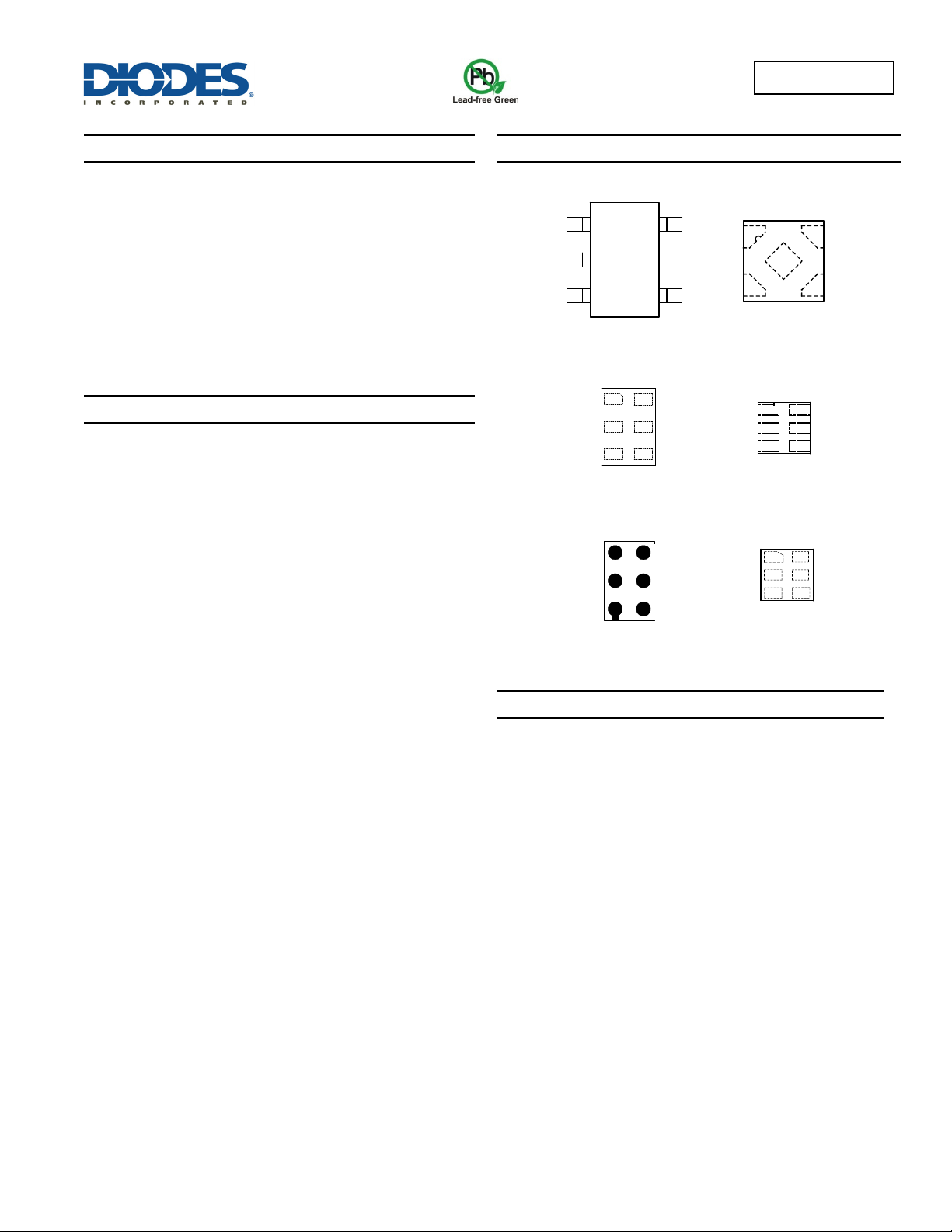

Pin Assignments
NC
Y
Vcc
SOT353
A
Packages not to scale
X2-DFN1409-6
Chip Scale
Alternative
(
Bottom View
)
GND
X1-DFN1010-6
X2-DFN0808-4
1
2
3
4
5
GND
A
NC
Vcc
Y
X2-DFN1010-6
1
2
3
4
5
(
Top View
)
(
Top View
)
(
Top View
)
(
Top View
)
GND
A
Y
NC
NC
Vcc1
6
5
4
3
2
NC
GND
Vcc
Y
NC
A
1
2
3 4
5
6
NC
GND
Vcc
Y
NCA
1
2
3 4
5
6
2
4
5
6
3
1
( Top View )
X2-DFN1410-6
A
GND
Vcc
Y
NC
NC
Applications
• Suited for Battery and Low Power Needs
• Wide Array of Products Such As:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
