74AUP1G125
SINGLE BUFFER GATE WITH 3-STATE OUTPUT
Description
The Advanced, Ultra Low Power (AUP) CMOS logic family is
designed for low power and extended battery life in portable
applications.
The 74AUP1G125 is a single, non-inverting buffer/bus driver,
designed for operation over a power supply range of 0.8V to 3.6V.
The device has a three-state output that enters a high-
impedance
state when a high level is applied to the output enable
(OE) pin. The
device is fully specified for partial power down applications using I
OFF
.
The I
OFF
circuitry disables the output, preventing damaging current
backflow when the device is powered down.
Features
• Advanced Ultra Low Power (AUP) CMOS
• Supply Voltage Range from 0.8V to 3.6V
• ±4mA Output Drive at 3.0V
• Low Static Power Consumption
I
CC
< 0.9µA
• Low Dynamic Power Consumption
C
PD
= 6.3pF (Typical at 3.6V)
• Schmitt Trigger Action at all inputs makes the circuit tolerant for
slower input rise and fall time. The hysteresis is typically
250mV at V
CC
= 3.0V.
• I
OFF
Supports Partial-Power-Down Mode Operation
• ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Leadless Packages Named per JESD30E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

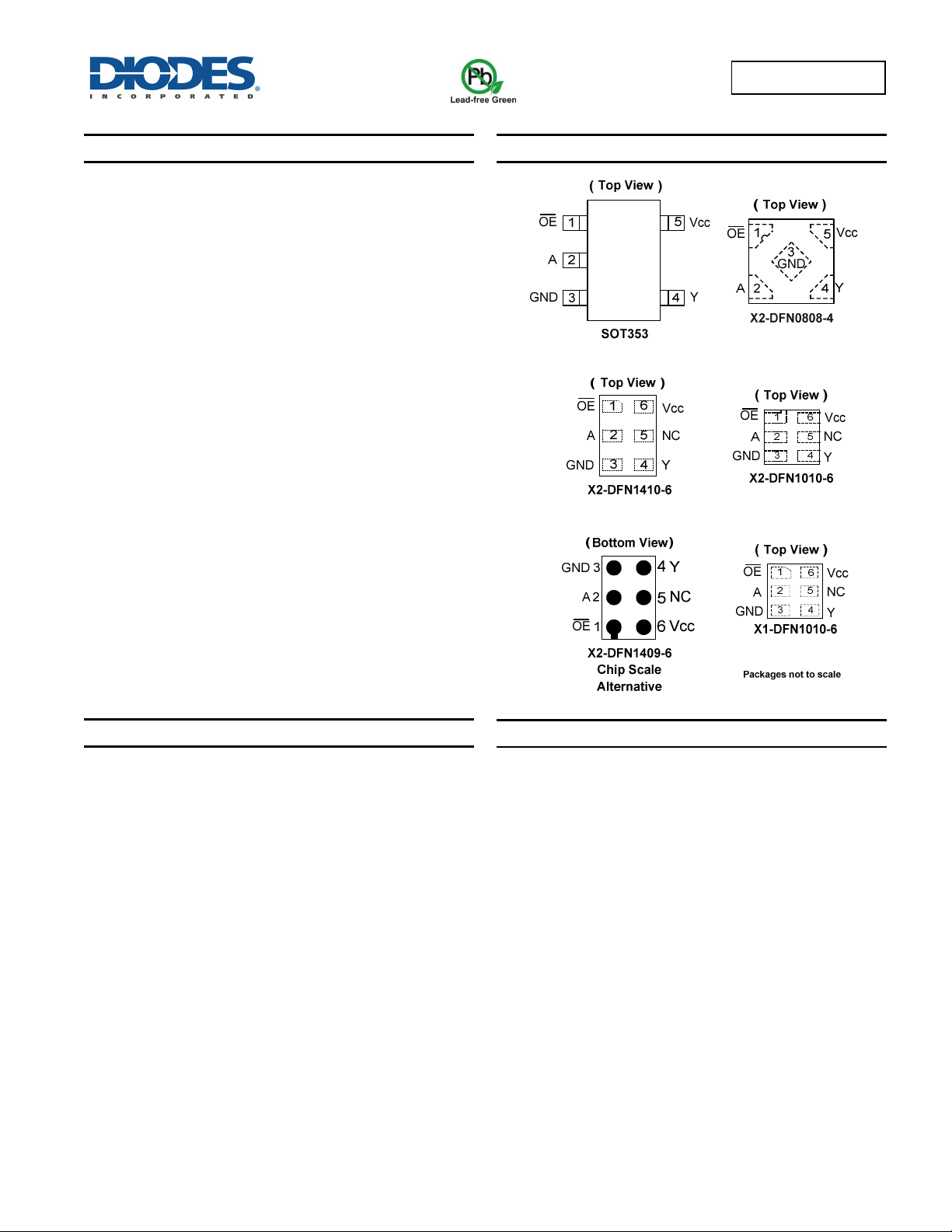

Pin Assignments
Applications
• Suited for Battery and Low Power Needs
• Wide array of products such as:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes
