74AUP1G09
Document number: DS35151 Rev. 5 - 2
1 of 16
www.diodes.com
February 2015
© Diodes Incorporated
74AUP1G09
SINGLE 2 INPUT POSITIVE AND GATE WITH OPEN DRAIN OUTPUT
Description
The Advanced, Ultra Low Power (AUP) CMOS logic family is
designed for low power and extended battery life in portable
applications.
The AUP1G09 is a single AND gate with an open drain output
designed for operation over a power supply range of 0.8V to 3.6V.
The device is fully specified for partial power down applications
using I
OFF
. The I
OFF
circuitry disables the output preventing
damaging current backflow when the device is powered down. The
gate performs the positive Boolean function:
B
A
Y
•
=
or
B
A
Y
+
=
Features
• Advanced Ultra Low Power (AUP) CMOS
• Supply Voltage Range from 0.8V to 3.6V
• 4mA Output Drive at 3.0V
• Low Static Power Consumption
I
CC
< 0.9µA
• Low Dynamic Power Consumption
C
PD
= 6 pF (Typical at 3.6V)
• Schmitt Trigger Action at all inputs makes the circuit tolerant
for slower input rise and fall time. The hysteresis is typically
250 mV at V
CC
= 3.0V.
• I
OFF
Supports Partial-Power-Down Mode Operation
• ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Leadless Packages Named per JESD30E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

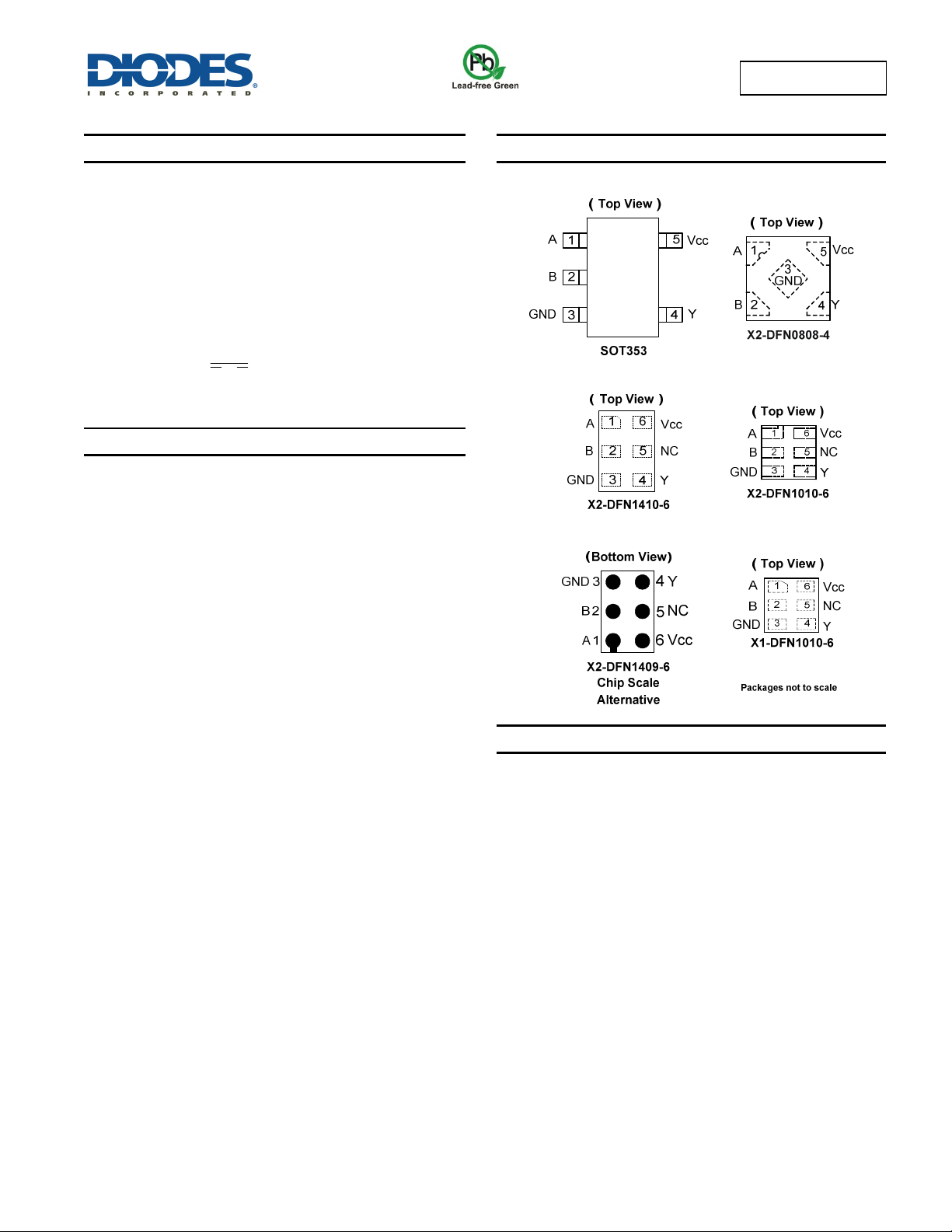

Pin Assignments
Applications
• Suited for Battery and Low Power Needs
• Wide array of products such as:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players ,Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
